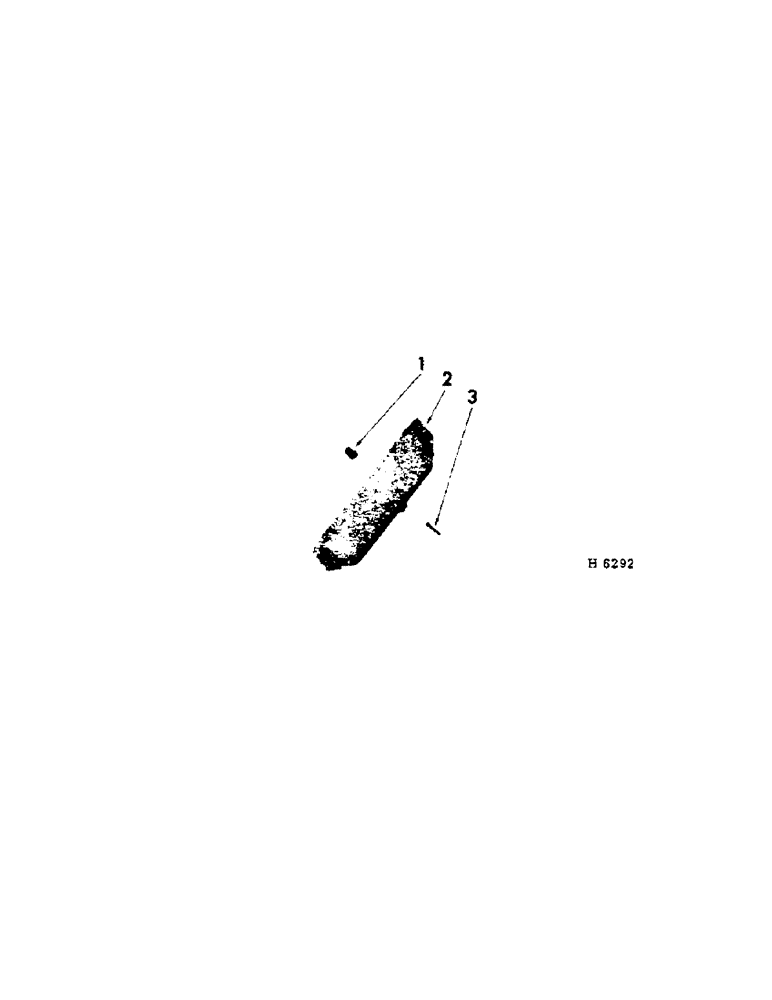

Запчасти Case IH 201 (A-117[A]) - PLATFORM LIFT HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

613661R1

ROD, cylinder piston

2шт.

2

RING, piston rod snap (order 1-474845R91, pkg) (NSS)

2шт.

3

OIL SEAL, piston rod (order 1-474845R91, pkg) (NSS)

2шт.

4

WASHER, ring back-up (order 1-474845R91, pkg) (NSS)

2шт.

5

RING, piston rod (order 1-474845R91, pkg) (NSS)

2шт.

6

613673R91

BARREL, hyd cyl

2шт.

7

474845R91

STRIPPER PACKAGE

PACKAGE, hyd cyl seal repair

1шт.
