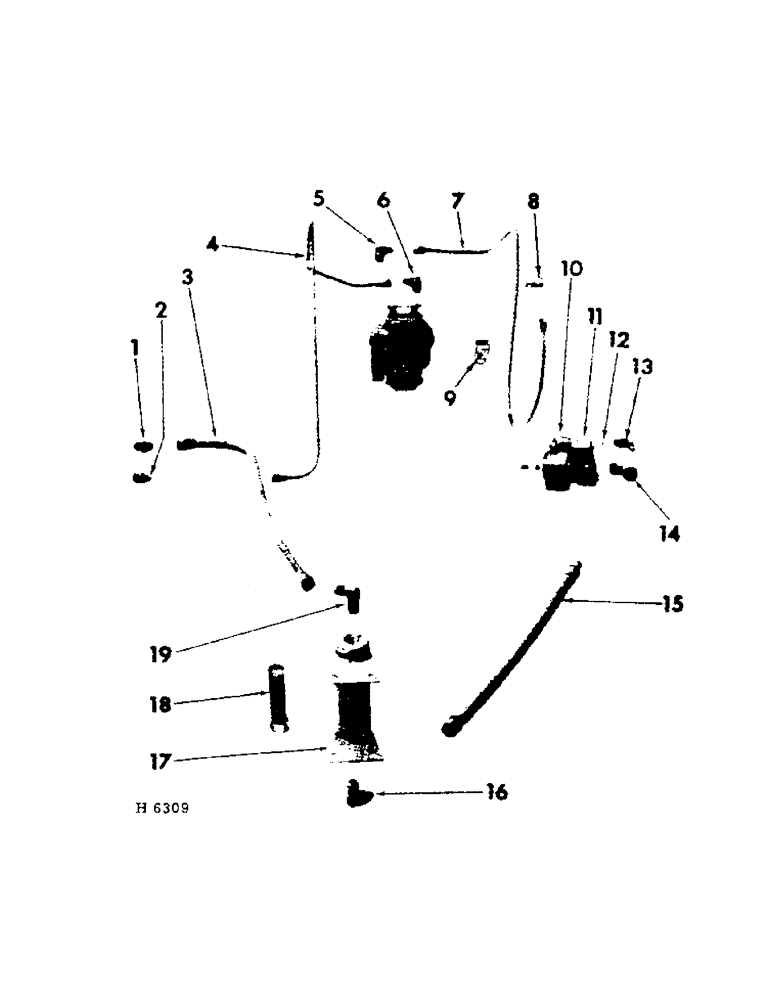

Запчасти Case IH 201 (A-116) - CHASSIS HYDRAULICS, RESERVOIR TO VAVLE AND PUMP (35) - HYDRAULIC SYSTEMS

1

9402710

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR, frame reservoir line

1шт.

2

610774R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, reservoir return line

1шт.

3

611943R11

LINE, frame, Serial Range: reservoir-strainer

1шт.

4

611941R11

LINE, frame reservoir to valve return 0.375" OD, 20.625" Length

1шт.

5

613532R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

90deg. pump to valve line

1шт.

Prior to machine serial no. H2184

1шт.

6

613532R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

90deg. valve return line

1шт.

7

LINE, pump to valve (prior to serial no. H2184 order 1-614729R91, hose)

1шт.

7

614729R91

HOSE, Serial Range: pump-valve

1шт.

Machine serial no. H2184 & up

1шт.

8

105247

CLIP, no. 6 closed line

1шт.

Prior to machine serial no. H2184

1шт.

8

299566C1

CLAMP

CLIP, hyd hose (Note B)

1шт.

BOLT W/NUT, 1/4 x 1/2" mach

1шт.

LK-WASHER, 1/4"

1шт.

9

140585

CLIP

no. 12 pump to valve hose

1шт.

10

PUMP, hyd (refer to "hydraulic pump")

1шт.

11

MANIFOLD, hyd pump (refer to "hydraulic pump drive parts")

1шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve hose elbow

1шт.

13

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

pump to valve 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

Prior to machine serial no. H2184

1шт.

14

108686

ELBOW,90 Degree, 1/2" NPT Street

90deg. pump

1шт.

Prior to machine serial no. H2184

1шт.

14

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90deg. pump

1шт.

Machine serial no. H2184 & up

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

pump elbow

1шт.

15

612618R91

HOSE, strainer to hyd pump

1шт.

Prior to machine serial no. H2184

1шт.

15

617367R91

HOSE, strainer to hyd pump

1шт.

Machine serial no. H2184 & up

1шт.

16

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

90deg. strainer

1шт.

Prior to machine serial no. H2184

1шт.

16

618631R1

SPACER

ELBOW, 90deg. strainer

1шт.

Machine serial no. H2184 & up

1шт.

17

612000R91

HOUSING, hyd oil strainer

1шт.

BOLT W/NUT, 5/16 x 3/4" mach

2шт.

BOLT W/NUT, 1/2 x 7" mach

1шт.

LK-WASHER, 5/16"

2шт.

LK-WASHER, 1/2"

1шт.

18

619037R91

STRAINER ASSY.

STRAINER, hyd oil

1шт.

19

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

90deg. strainer suction line

1шт.
