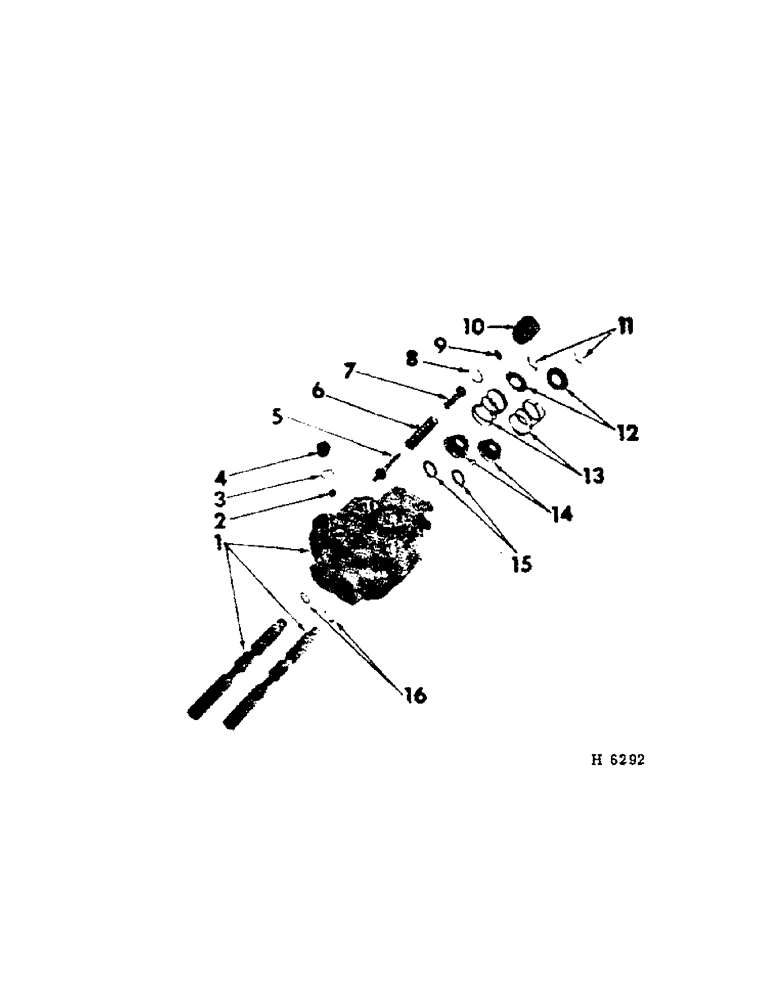

Запчасти Case IH 201 (A-115) - HYDRAULIC CONTROL VALVE, NOT APPLICABLE TO AUGER PLATFORM WHEN EQUIPPED WITH MANUAL REEL LIFT (35) - HYDRAULIC SYSTEMS

611966R92

VALVE, hyd control (composed of parts listed below unless otherwise noted)

1шт.

BOLT W/NUT, 5/16 x 2-1/4" mach

2шт.

Not part of valve

1шт.

LK-WASHER, 5/16"

2шт.

Not part of valve

1шт.

1

HOUSING & SPOOL, valve (order 1-611966R91, valve) (NSS)

1шт.

2

613606R1

BALL, lift check

2шт.

3

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

check plug

2шт.

4

613604R1

PLUG, lift check

2шт.

5

613601R91

PIN, relief valve

1шт.

6

613597R1

SPRING, relief valve

1шт.

7

613600R1

GUIDE, relief valve

1шт.

8

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

valve cap

1шт.

9

613599R1

SHIM, relief valve

1шт.

10

613605R1

CAP, relief valve

1шт.

11

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , spool #50, .392" Dia, E-Type

2шт.

12

613062R1

WASHER, spool shallow

2шт.

13

613598R1

SPRING

spool

2шт.

14

613603R1

WASHER, spool deep

2шт.

15

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

spool

2шт.

16

592674R1

O-RING,0.612" ID x 0.006" Width

O-RING, spool

2шт.

607431R91

KIT, valve seal repair composed of: (1) ball 613606R1, (1) o-ring 252739R1, (1) o-ring 252707R1, (1) ring 370290R1, (1) o-ring 350429R1, (1) o-ring 592674R1

2шт.

607194R91

VALVE, hyd control (composed of all parts listed below, unless otherwise noted)

1шт.

BOLT W/NUT, 5/16 x 2-1/4" mach

2шт.

Not part of valve

1шт.

LK-WASHER, 5/16"

2шт.

Not part of valve

1шт.
