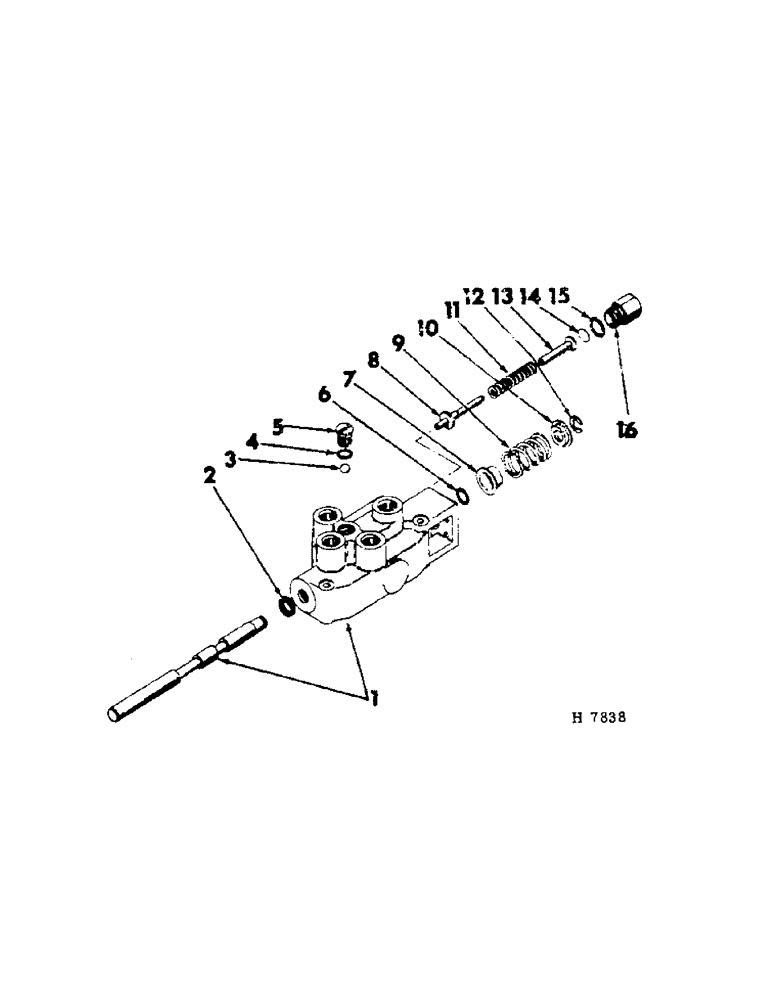

Запчасти Case IH 201 (A-115[A]) - HYDRAULIC VALVE CONTROL, APPLICABLE TO AUGER PLATFORM, BUT ONLY WHEN EQUIPPED WITH MANUAL REEL LIFT (35) - HYDRAULIC SYSTEMS

1

HOUSING & SPOOL, valve (order 1-607194R91, valve) (NSS)

1шт.

2

592674R1

O-RING,0.612" ID x 0.006" Width

O-RING, spool

1шт.

3

613606R1

BALL, lift check

1шт.

5

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

check plug

1шт.

5

613604R1

PLUG, lift check

1шт.

6

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

spool

1шт.

7

613603R1

WASHER, spool deep

1шт.

8

613601R1

PIN, relief valve

1шт.

9

613598R1

SPRING

spool

1шт.

10

613602R1

WASHER

spool shallow

1шт.

11

613697R1

SPRING, relief valve

1шт.

12

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , spool #50, .392" Dia, E-Type

1шт.

13

613600R1

GUIDE, relief valve

1шт.

14

613599R1

SHIM, relief valve

1шт.

15

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

valve cap

1шт.

16

613605R1

CAP, relief valve

1шт.

607431R91

KIT, valve seal repair composed of: (1) bail 613506R1, (1) o-ring 252739R1, (1) o-ring 252707R1, (1) ring 370290R1, (1) o-ring 350429R1, (1) o-ring 592674R1

1шт.
