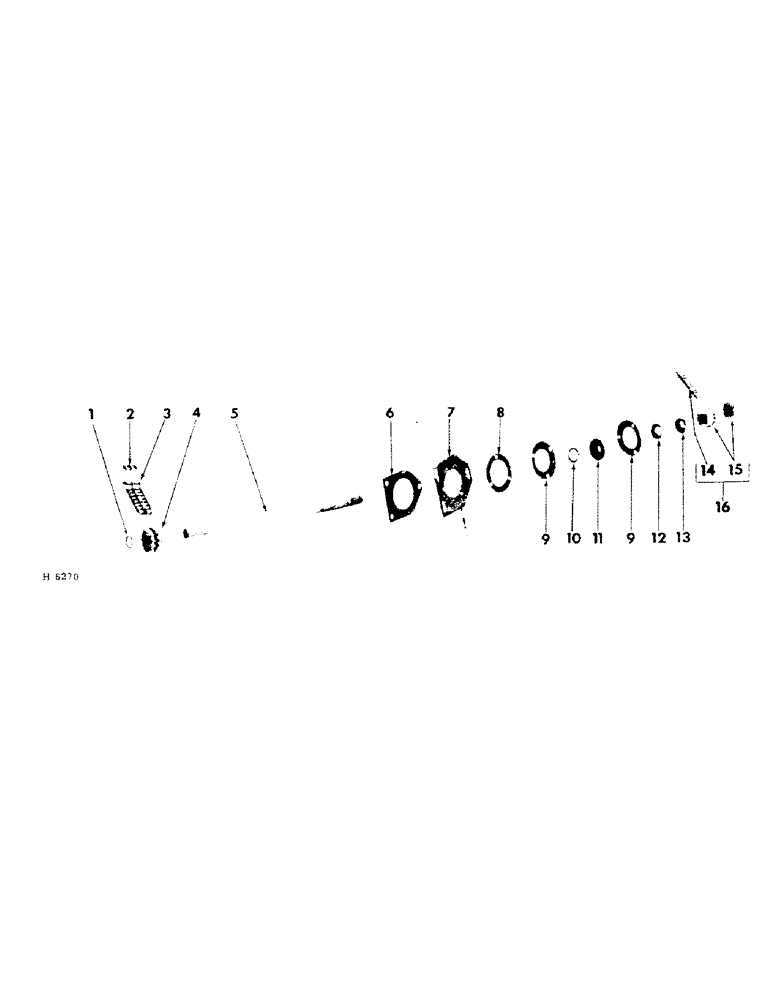

Запчасти Case IH 201 (A-066) - FINAL DRIVE SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

152450R1

SNAP RING,#125, Ext

Ring, Snap, , drive shaft #125, Ext

2шт.

2

1378D

CHAIN LINK

LINK, chain connecting, Serial Range: (1961-1964)

2шт.

2

609451R91

LINK

chain connecting, Serial Range: (1965-1966)

2шт.

1311D

CLIP, connecting link

2шт.

3

CHAIN, 5/8 double roller drive (for service order 1-1792D 10 ft. length of chain, reduce to 145 links & add 1-609451R91, connecting link)

2шт.

4

613229R1

SUPPORT, 14T double drive

2шт.

5

613223R1

SHAFT, final drive

2шт.

6

613530R1

GASKET, shaft adjuster

2шт.

7

613915R11

PLATE, shaft adjusting LH

1шт.

7

613914R11

PLATE, shaft adjusting RH shown

1шт.

16038R1

WASHER

17/32 x 1 x 11 ga

6шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

NUT, 1/2"

6шт.

NUT, 5/8"

4шт.

8

613529R1

GASKET, shaft flangette brg

2шт.

9

617863R1

FLANGED BEARING

TTE, brg

4шт.

BOLT, 3/8 x 1" no. 3 plow w/nut

6шт.

LK-WASHER, 3/8"

6шт.

10

Q3483

WASHER

1-9/32 x 2 x 11 ga

2шт.

11

BEARING, flangette (for skf-bearing-1706207104 only - order 1-565672R91 bearing & 1-455104R11, collar)

1шт.

11

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

flangette (fafnir, new departure & skf - for use w/455104R11, collar)

2шт.

11

607418R91

BEARING

flangette (fischer - for use w/607419R11, collar)

2шт.

12

COLLAR W/SCREW, brg locking (for skf-collar-lc-104 only - order 1-565672R91 bearing & 1-455104R11, collar)

2шт.

12

455104R11

COLLAR

W/ SCREW, brg locking (fafnir, new departure & skf - for use w/566672R91, bearing)

2шт.

12

607419R11

COLLAR

W/SCREW, brg locking (fischer for use w/607418R91, bearing)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

13

603039R1

COLLAR, final drive shaft

2шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

4шт.

14

611979R91

CHAIN (AG)

CHAIN, coupling (includes 618249R91, coupler & 1309D, links)

2шт.

15

611980R1

PINION

SPROCKET, 14T coupling

4шт.

16

611978R91

COUPLING, drive shaft (includes 611979R91, chain & 611980R91, sprockets)

2шт.
