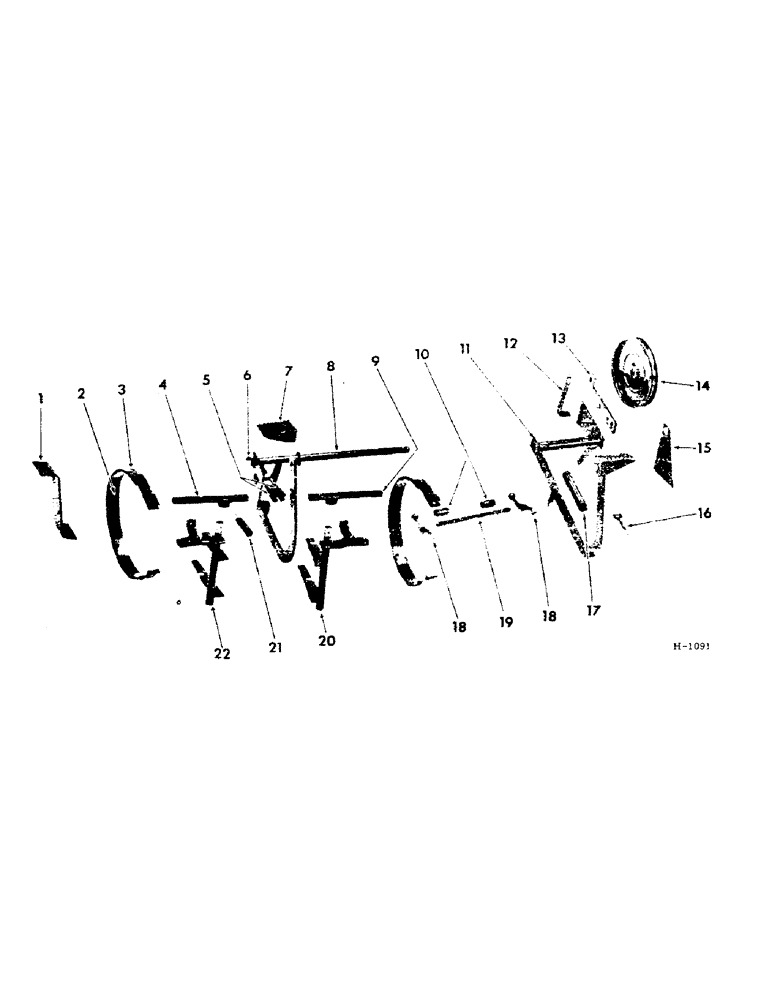

Запчасти Case IH 201 (E-019) - CONTROLS AND DRIVES, BRAKE AND CLUTCH (18) - CLUTCH

1

591938R11

BRACKET, rockshaft support RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" C-Z type 2

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

W/NUT, 3/8 x 1" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

591951R12

PADDING

PACKAGE, brake band lining service (includes 53795V & 21406H rivets)

2шт.

53795V

RIVET,Csk Hd, 3/16" x 5/16"

3/16 x 5/16" csk-hd tubular

8шт.

21406H

RIVET,Csk Hd, 3/16" x 3/8"

3/16 x 3/8" csk-hd tubular

4шт.

3

591950R91

BAND

reverse & brake (includes 591951R12 pkg)

2шт.

4837S

HEADED PIN,3/8" x 1"

PIN, 3/8 x 1" std-hd dld

2шт.

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN, 3/8 x 2-1/4" std-hd dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

4

591947R91

ARM, brake control pivot RH

1шт.

271293

PULLEY

LUB-FITTING, 5/16"-NF

2шт.

5

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, brake bolt connecting

2шт.

SE235

HEADED PIN,3/8" x 1 1/8"

PIN, 3/8 x 1-1/8" std-hd-dld

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

6

596597R1

BOLT, brake linkage adjusting 3/8-NF

2шт.

BOLT W/NUT, 5-1/2" C-Z type 2

1шт.

7

613243R1

PEDAL, brake & clutch

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

W/NUT, 3/8 x 1-1/4" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

591939R91

ROCKSHAFT, brake control

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

591946R91

ARM, brake control pivot LH

1шт.

271293

PULLEY

LUB-FITTING, 5/16"-NF

1шт.

10

582017R1

SPACER

lock-out pawl pin

2шт.

11

591956R91

ROCKSHAFT, clutch control

1шт.

271293

PULLEY

LUB-FITTING, 5/16"-NF

1шт.

12

591962R1

SUPPORT, idler pulley belt guide

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

W/NUT, 5/8 x 2-1/2" C-Z type 2

1шт.

21782R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

591961R1

ARM, belt idler pulley

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" C-Z crg

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

565441R91

BEARING

PULLEY, drive belt idler

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

W/NUT, 5/8 x 2-1/2" C-Z type 2

1шт.

21782R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

591937R1

BLOCK, rockshaft support LH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

610840R1

EYEBOLT, clutch rockshaft return spg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

17

P303

SPRING

clutch rockshaft return

1шт.

18

591954R1

PAWL, pedal lock-out

2шт.

19

591955R1

PIN, pawl mounting

1шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga C-Z

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

20

591929R91

ROCKSHAFT, brake control LH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

W/NUT, 3/8 x 1-1/4" C-Z type 2

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

21

510029R1

SPRING

brake rockshaft return

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4"" C-Z type 2

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

591930R91

ROCKSHAFT, brake control RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

W/NUT, 3/8 x 1-1/4" C-Z type 2

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.
