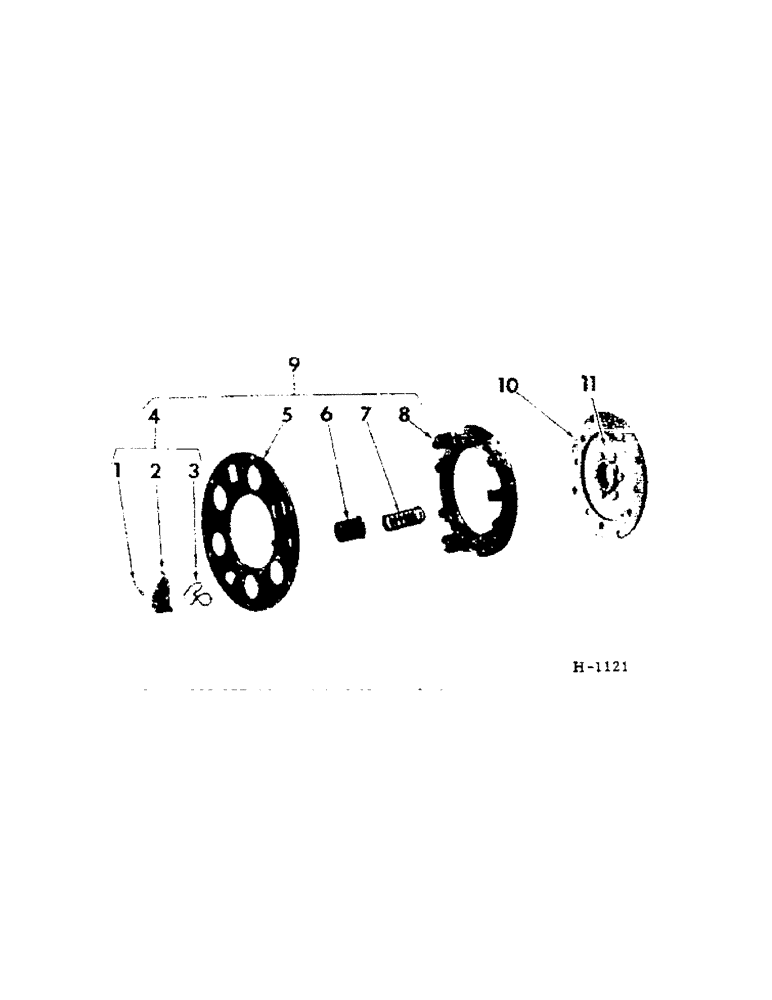

Запчасти Case IH 201 (E-018[1]) - PLANETARY CLUTCH AND PLATE (18) - CLUTCH

1

51460D

STUD

PIN, clutch lever

6шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), , Lever pin 3/32" x 1/2"

6шт.

2

68800D

LEVER

clutch (includes 114494, nut & 51459D, screw)

6шт.

114494

NUT,Jam, 3/8"-24, G5

Clutch lever Jam, 3/8"-24, G5

6шт.

51459D

SCREW

lever adjusting

6шт.

3

598285R1

SPRING, clutch lever

6шт.

4

594552R91

LEVER

clutch composed of: (3) lever 68800D, (3) pin 51460D, (3) spring 598285R1, (3) washer 594602R1, (3) pin 103372

2шт.

5

598525R1

PLATE

clutch back (includes 58798D, seat)

2шт.

68798D

SEAT, back plate

6шт.

6

20090VB

CUP, pressure spg

12шт.

7

51462D

SPRING, pressure plate

12шт.

7

353078R91

PACKAGE, pressure spring service (includes 51462D, springs)

2шт.

8

68799D

PLATE, clutch pressure

2шт.

9

598524R91

PLATE, clutch pressure (includes parts within bracket)

2шт.

10

618244R91

FACING, CLUTCH

PACKAGE, clutch plate facing service (includes 61176V, rivets)

2шт.

61176V

RIVET

clutch facing

24шт.

11

619961R91

DISC

CLUTCH (includes 618244R91, pkg & 115323, rivets)

2шт.

115323

RIVET, clutch plate

12шт.
