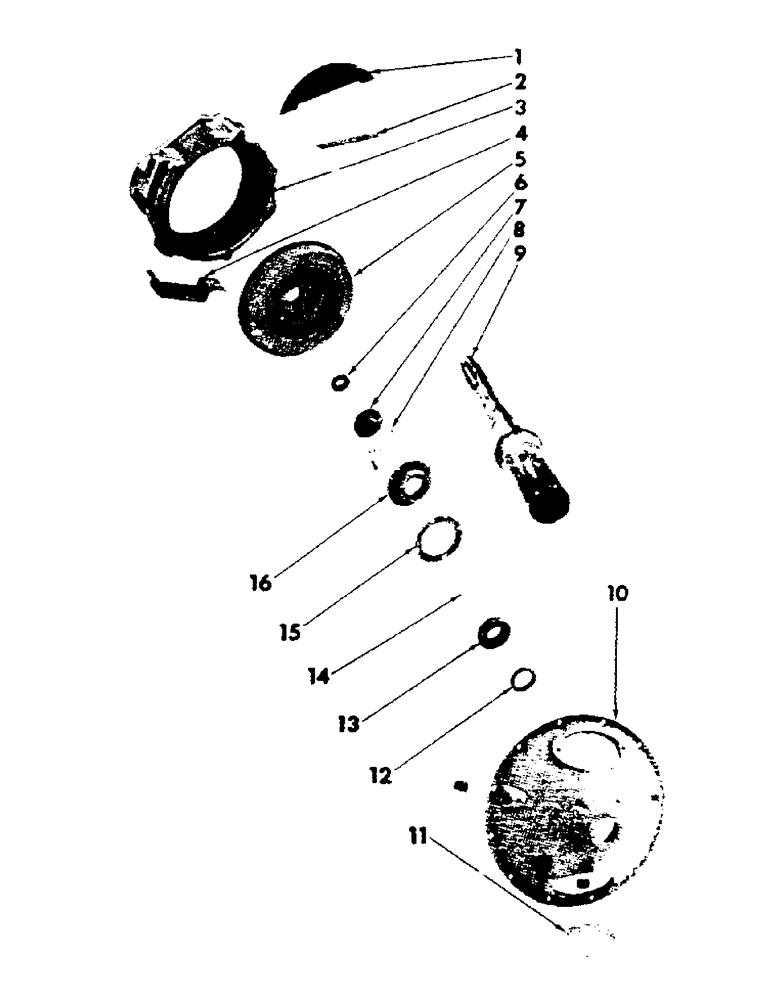

Запчасти Case IH 201 (A-062) - CLUTCH DRIVE AND HOUSING (18) - CLUTCH

1

703957R11

COVER

flywheel housing dust (diesel)

1шт.

BOLT, 1/4 x 1/2" cd-pltd type 2

2шт.

LK-WASH, 1/4" cd-pltd

2шт.

2

612304R1

SPACER, engine support front

1шт.

BOLT W/NUT, 1/2 x 1-1/8" mach

3шт.

LK-WASH, 1/2"

3шт.

3

6790DA

HOUSING, flywheel (gas)

1шт.

3

754611R1

HOUSING, flywheel (diesel)

1шт.

BOLT, 1/2 x 1-1/2" type 2 (5-gas)

1шт.

BOLT, 1/2 x 1-1/2" cd-pltd type 2 (4-diesel)

1шт.

BOLT, 1/2 x 2" cd-pltd type 2 (3-diesel)

1шт.

LK-WASH, 1/2" (5-gas)

1шт.

LK-WASH, 1/2" cd-pltd (7-diesel)

1шт.

4

612327R91

SUPPORT, flywheel housing

1шт.

BOLT, 3/8 x 3/4" type 2 (4-gas)

1шт.

BOLT, 3/8 x 1" cd-pltd type 2 (4-diesel)

1шт.

BOLT W/NUT, 7/16 x 1" cd-pltd crg

2шт.

LK-WASH, 3/8" (4-gas)

1шт.

LK-WASH, 3/8" cd-pltd (4-diesel)

1шт.

LK-WASH, 7/16" cd-pltd

2шт.

5

FLYWHEEL, Serial Range: (refer-"crankshaft")

1шт.

6

614050R1

PILOT, pto shaft (gas, Serial Range: prior-H1922)

1шт.

6

614087R1

PILOT, pto shaft (disesl, Serial Range: prior-H1922)

1шт.

6

607184R1

PILOT, pto shaft (gas H1922 & up)

1шт.

6

607185R1

PILOT, pto shaft (diesel H1922 & up)

1шт.

7

616688R1

HUB, shaft adapter (gas, Serial Range: prior-1922)

1шт.

46349D

LOCK

flywheel bolt

2шт.

31634HA

BOLT (SPREADER)

BOLT, flywheel lock

2шт.

7

614436R2

HUB

shaft adapter (gas H1922 & up)

1шт.

614723R1

LOCK, flywheel bolt

2шт.

31634HA

BOLT (SPREADER)

BOLT, flywheel lock

2шт.

7

614085R1

HUB, shaft adapter (diesel, Serial Range: prior-H1922)

1шт.

709516R1

RETAINER

LOCK, flywheel bolt

2шт.

362442R1

BOLT,Hex, 7/16" - 20 x 2", Gr 8

flywheel lock

2шт.

7

607182R1

HUB, shaft adapter (diesel H1922 & up)

1шт.

607183R1

LOCK, flywheel bolt

2шт.

362442R1

BOLT,Hex, 7/16" - 20 x 2", Gr 8

flywheel lock

2шт.

8

618444R1

PIN, flywheel dowel

1шт.

9

607180R91

SHAFT & BARREL, sheave hub (includes 657205R1, key & 139063, screw)

1шт.

657205R1

KEY, engine shaft 3/8" Sq x 3 1/4", Par

1шт.

139063

SCREW, 3/8 x 5/16" hdls cup-pt set

1шт.

10

8545D

HOUSING, clutch drive

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

LUB-FTG, 1/8"-30deg. elbow

1шт.

112428

PLUG

no. 0 cork (2-diesel)

1шт.

104938

PLUG

no. 2 cork (2-diesel)

1шт.

106623

PLUG, no. 8 cork

2шт.

117925

PLUG, no. 11 cork

2шт.

BOLT, 3/8 x 1" type 2

12шт.

LK-WASH, 3/8"

12шт.

11

29087D

COVER, hand hole

1шт.

BOLT, 5/16 x 5/8" type 2

2шт.

LK-WASH, 5/16"

2шт.

12

273982R91

OIL SEAL, pto shaft

1шт.

13

ST242

BEARING

clutch shaft outer

1шт.

14

54219D

RING, brg, Serial Range: (prior-H1922)

1шт.

14

607186R1

SNAP RING,#156, Ext

Brg (H1922 & up) #156, Ext

1шт.

15

54218D

GASKET, brg retainer

1шт.

16

8547D

RETAINER, outer brg

1шт.

BOLT, 5/16 x 1" type 2

4шт.

LK-WASH, 5/16"

4шт.

607424R91

PACKAGE, pto shaft service (gas engines prior to H1922) composed or: (1) hub 614436R92, (2) key 613920R2, (2) lock 614723R1, (4) lockwasher 618576R1, (1) pilot 607184R1, (1) ring 607186R1, (4) screw 191209, (1) shaft 607180R91

1шт.

607425R91

PACKAGE, pto shaft service (diesel prior to H1922) composed of (1) hub 607182R1, (2) key 613920R2, (2) lock 607183R1, (4) lockwasher 618576R1, (1) pilot 607185R1, (1) ring 607186R1, (4) screw 191209, (1) shaft 607180R91

1шт.
