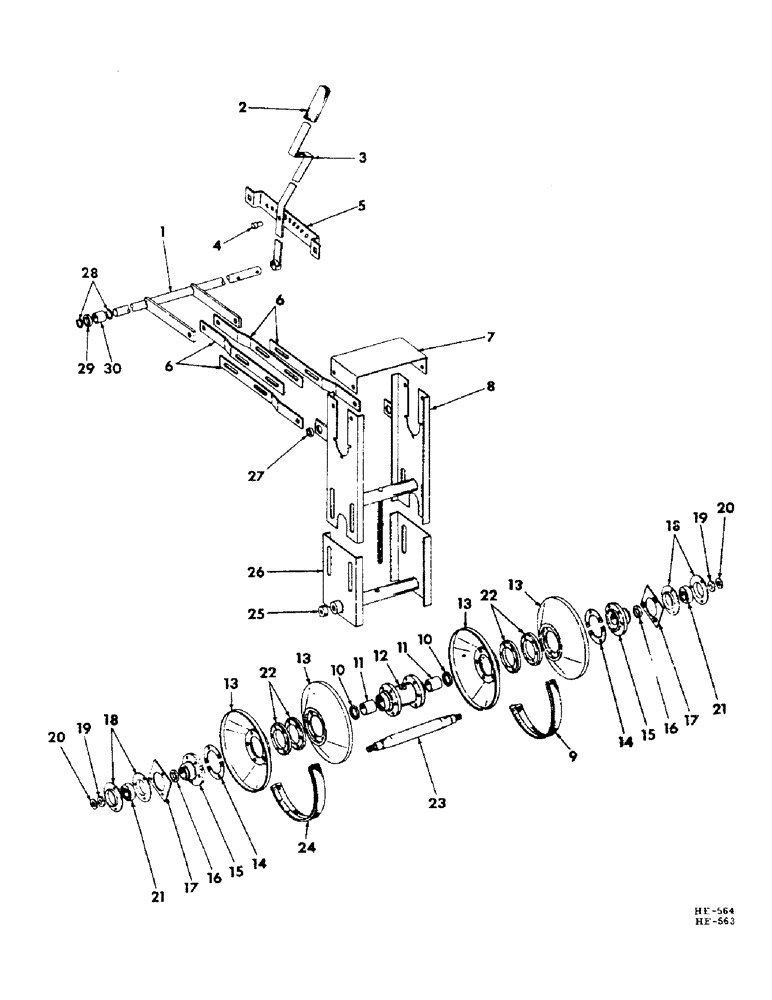

Запчасти Case IH 201 (E-030) - CONTROLS AND DRIVES, VARIABLE SPEED DRIVE (14) - MAIN GEARBOX & DRIVE

1

ROCKSHAFT, speed control (prior to serial no H-5074 order 1-597699R1 rockshaft, 1-592059 & 445749R1 spacers, 5-461049R1 rings)

1шт.

1

597699R1

ROCKSHAFT, speed control (serial no H5074 & up)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

1шт.

20601R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

938885R1

GRIP

control lever hand

1шт.

3

591964R11

LEVER, speed control (includes 591963R1 pin)

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

4

591965R1

PIN, control lever

1шт.

5

591966R1

SECTOR, control lever

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/8" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

591970R1

STRIP, control link

4шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z type 2

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

591858R1

CHANNEL, inner frame tie

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z type 2

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

591853R91

FRAME, variable speed inner

1шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

591869R1

V-BELT,1.25" W x 57.20" L

Speed drive front 1.25" W x 57.20" L

1шт.

10

591867R91

OIL SEAL

OIL SEAL, inner pulley hub

2шт.

11

591866R1

BUSHING, inner pulley hub

2шт.

12

591865R21

HUB W/BUSHINGS, inner pulley

1шт.

62022R1

FITTING, inner hub shut-off

1шт.

13

591863R1

PULLEY

half outer & inner

4шт.

22764R1

BOLT W/NUT, 5/16-NF x 7/8" C-Z type 4

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

14

594857R1

SHIM, pulley half (1966 & since)

1шт.

14

592404R1

SHIM, pulley (1965 to 1966) (on orders for 592404R1 furnish 2-594857R1 shims)

1шт.

15

591864R2

HUB, outer pulley

2шт.

106751

KEY

3/16 x 3/4" no 9 woodruff key

2шт.

16

605884R1

WASHER, hub & brg special

2шт.

17

591862R11

BRACKET, flangette mounting

2шт.

130077

BOLT, 5/16 x 3/4" C-Z type 2

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

462360R1

FLANGED BEARING

TTE, shaft bearing

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4" C-Z type 2

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

19

592801R1

WASHER, brg outer special

2шт.

20

608701R1

WASHER

shaft nut inner

2шт.

21

591860R91

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

shaft

2шт.

22

594368R1

RETAINER, pulley half

4шт.

23

591859R1

SHAFT, variable speed drive

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-NF C-Z slt

2шт.

592801R1

WASHER, 21/32 x 1-1/4 x 3/16 (special)

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

24

591869R1

V-BELT,1.25" W x 57.20" L

Speed drive rear (Wisconsin VH4D Engine) 1.25" W x 57.20" L

1шт.

24

592035R1

V-BELT,1.25" W x 59.80" L

Speed drive rear (Wisconsin VG4D Engine) 1.25" W x 59.80" L

1шт.

25

591852R1

BUSHING, variable speed pivot

2шт.

26

591849R91

FRAME, variable speed outer

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2" C-Z type 2

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

27

591971R1

WASHER, control link spacer

4шт.

28

461049R1

OIL SEAL

RING, variable control rod spacer

1шт.

29

592059R1

SPACER, variable control rod outer

1шт.

30

455749R1

SPACER,1" Pipe x .469"

variable control rod inner

1шт.
