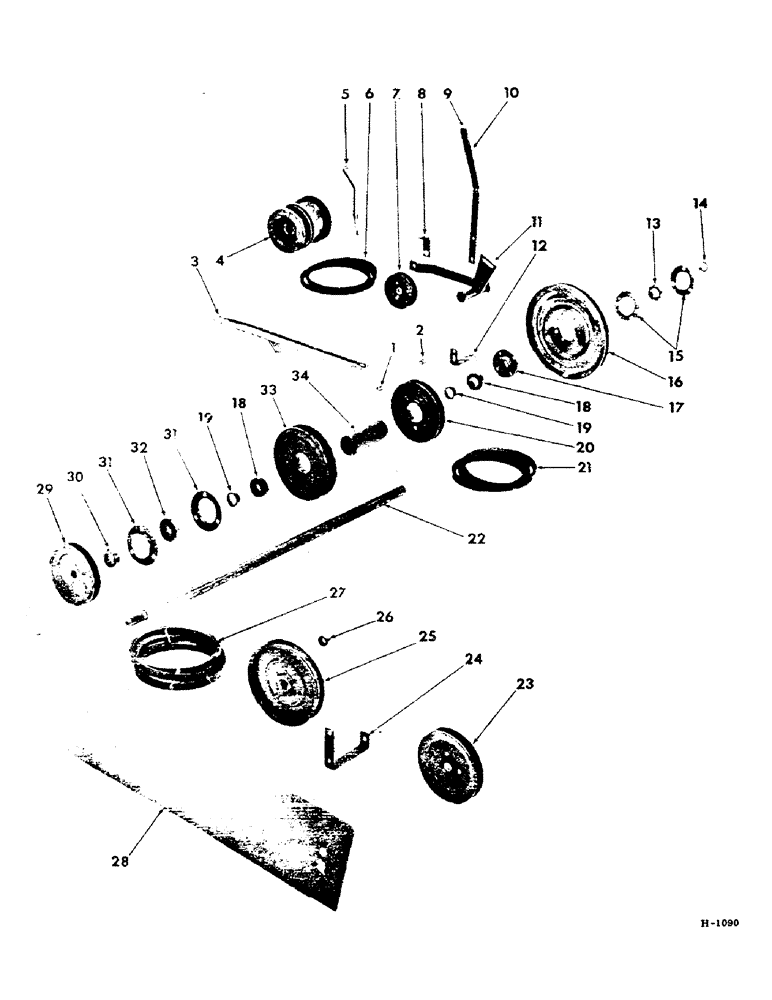

Запчасти Case IH 201 (E-026) - CONTROLS AND DRIVES, PLATFORM DRIVE AND COUNTERSHAFT, WISCONSIN VG4D ENGINE V BELT, S.N. H5074 & UP (14) - MAIN GEARBOX & DRIVE

1

600411R1

SPACER,3/8" Pipe x 2 3/4"

belt guard outer mounting

1шт.

189307

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

W/NUT, 3/8 x 5-1/2" C-Z

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

950523R1

SPACER,3/8" Pipe x 1 1/2"

belt guard inner

1шт.

3

597696R1

GUARD, platform drive belt

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" C-Z crg

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

189307

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

W/NUT, 3/8 x 5-1/2" C-Z type 2

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

597694R1

PULLEY, engine PTO

1шт.

Q3953

KEY,Gib, 3/8" Sq x 3"

3/8 x 3" tapered gib-hd

1шт.

5

596593R1

ANGLE, countershaft platform drive belt declutching guide

1шт.

187543

SCREW

BOLT W/2 NUTS, 7/16 x 4-1/2" C-Z type 2

1шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/2" C-Z crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

597695R1

BELT

platform drive (V Belt)

1шт.

7

662959R91

PULLEY ASSY.

PULLEY, belt idler (opt w/597792R91)

1шт.

7

597792R91

PULLEY

belt idler (opt w/662959R91)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

W/NUT, 5/8 x 2" C-Z type 2

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

592060R1

SUPPORT, idler pulley belt retainer

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

W/NUT, 5/8 x 2" C-Z type 2

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

938885R1

GRIP

platform control lever

1шт.

10

591972R1

LEVER, platform control

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

W/NUT, 3/8 x 1-1/4" C-Z type 2

2шт.

619856R1

WASHER

13/32 x 1" x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

592053R91

ROCKSHAFT, drive control

1шт.

271293

PULLEY

LUB-FITTING, 5/16"-NF

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

W/NUT, 3/8 x 1-1/4" C-Z type 2

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

591902R2

ANGLE, belt guard lower support

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

591871R91

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

counter shaft (LH)

1шт.

14

301020R1

SNAP RING,#118, Ext

Ring, Snap, , bearing #118, Ext

1шт.

15

591873R1

FLANGE

TTE, countershaft brg (LH)

2шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

16

564569R11

PULLEY ASSY.

PULLEY, countershaft driven

1шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

W/NUT, 5/16 x 7/8" C-Z crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

619808R1

HUB, platform driven pulley

1шт.

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4" tapered gib-hd

1шт.

18

586649R91

BEARING

drive & driven pulley

2шт.

19

557995R11

COLLAR

W/SCREW, pulley brg locking

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls-cup-pt set

2шт.

20

591874R1

PULLEY, transmission drive

1шт.

22206R1

BOLT W/NUT, 3/8 x 8-3/4" type 2

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

591881R1

V-BELT,0.88" W x 83.50" L

Transmission drive 0.88" W x 83.50" L

1шт.

22

591870R1

SHAFT, main drive counter

1шт.

23

574051R91

PULLEY

drive belt front idler

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

W/NUT, 5/8 x 2-3/4" C-Z type 2

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

610397R1

SPACER, front idler pulley

1шт.

24

591794R2

CHANNEL, shield bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 5/16 x 1" C-Z crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

565441R91

BEARING

PULLEY, belt rear tightener

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT W/NUT, 5/8 x 2-1/2" C-Z crg

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

591792R1

SPACER, rear tightener pulley

1шт.

27

591878R1

V-BELT,0.88" W x 139.40" L

Platform 0.88" W x 139.40" L

1шт.

28

591793R2

SHIELD, platform drive pulleys

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

W/NUT, 5/16 x 5/8" C-Z type 2

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

591877R1

PULLEY, platform driven

1шт.

30

455104R11

COLLAR

W/SCREW, brg locking (RH) (Fafnir, SKF & New Departure use w/565672R91 bearing)

1шт.

30

607419R11

COLLAR

W/SCREW, brg locking (RH) (Fisher - use w/607418R91 bearing)

1шт.

31

617863R1

FLANGED BEARING

TTE, countershaft brg (RH)

2шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

32

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

countershaft (RH) (Fafnir, SKF - New Departure - for use w/455104R11 collar)

1шт.

32

607418R91

BEARING

countershaft (RH) (Fisher - for use w/607419R11 collar)

1шт.

33

591875R1

PULLEY, variable speed driven

1шт.

22206R1

BOLT W/NUT, 3/8 x 8-3/4" C-Z type 2

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

34

591876R1

TUBE, drive & driven pulley 2.625" OD, 6.48" Length

1шт.
