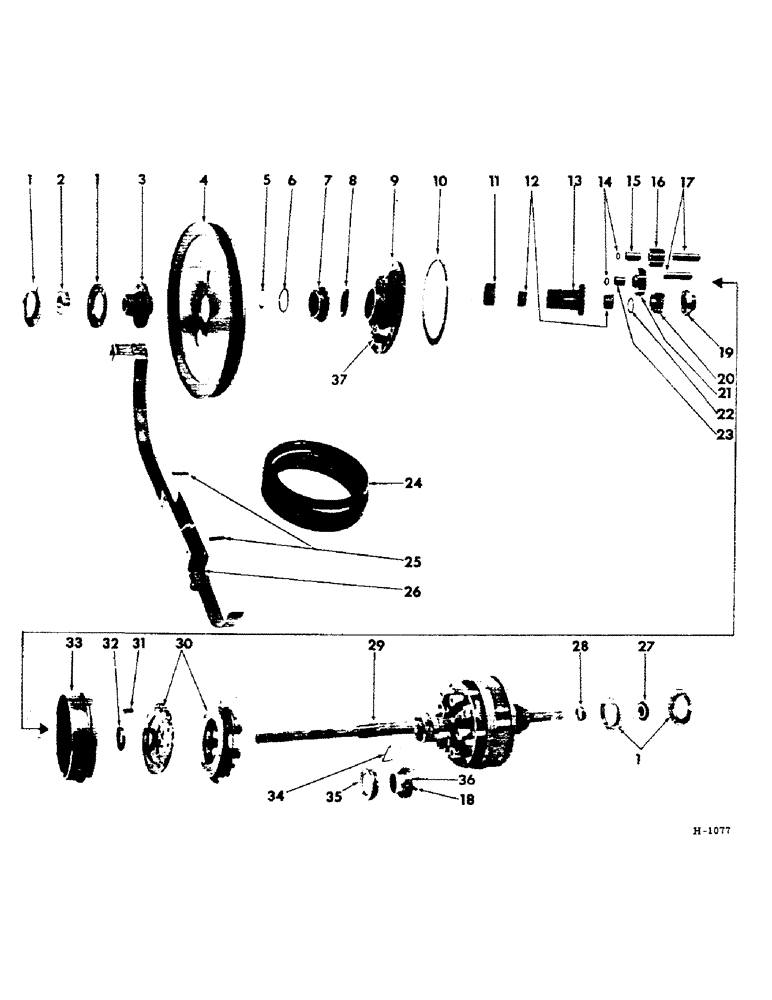

Запчасти Case IH 201 (E-020) - CONTROLS AND DRIVES, PLANETARY TRANSMISSION (14) - MAIN GEARBOX & DRIVE

1

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, drive shaft bearing

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" C-Z crg

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z (3-RH)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

591871R91

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

drive shaft LH

1шт.

3

591880R1

HUB, driven pulley

1шт.

586879R1

KEY

5/16 x 5/16 x 2" straight

1шт.

4

564568R11

PULLEY, transmission driven

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

W/NUT, 5/16"-18 x 1-1/4" C-Z type 2

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

21226R1

WASHER

1-9/32 x 2 x 11 ga C-Z shaft

1шт.

6

300026R1

RING

output gear retaining

2шт.

7

591883R1

SPROCKET, 16T final drive

2шт.

8

612462R91

OIL SEAL

housing cover

2шт.

9

591885R12

COVER, transmission housing (includes 591886R1 bushing)

2шт.

10

617955R1

SHIM

.020 cover

1шт.

11

591886R1

BUSHING

housing cover

2шт.

12

618653R1

BUSHING

drive shaft output gear

4шт.

13

591882R1

GEAR, 25T output

2шт.

14

587579R1

O-RING

gear shaft retaining

4шт.

15

591889R1

BUSHING, drive gear

2шт.

16

591892R11

GEAR, 15T planetary drive (includes 591889R1 bushing)

2шт.

17

591888R1

SHAFT, planetary gear

4шт.

18

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90deg. elbow lub

1шт.

19

591895R91

BALL BEARING,1.313" ID x 2.8346" OD x 1.35"

gear housing

2шт.

20

591884R1

GEAR, 17T input

2шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" woodruff

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

21

591893R11

GEAR, 23T planetary idler (includes 591890R1 bushing)

2шт.

22

618467R1

SHIM, gear shaft

1шт.

22

618468R1

SHIM, gear shaft

1шт.

23

591890R1

BUSHING, planetary idler gear

2шт.

24

591881R1

V-BELT,0.88" W x 83.50" L

Transmission driven 0.88" W x 83.50" L

1шт.

25

591903R1

SPACER, belt guard

2шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

W/NUT, 1/4 x 2" C-Z type 2

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

591898R11

GUARD, planetary drive belt

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

W/NUT, 3/8 x 2-1/2" C-Z type 2

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8" C-Z type 2

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

27

455960R91

BALL BEARING

BEARING, drive shaft RH (Fafnir, SKF New Departure - use w/557115R11 collar)

1шт.

27

592672R91

BEARING

drive shaft RH (Fafnir - use w/592673R11 collar)

1шт.

28

557115R11

COLLAR

COLLAR W/SCREW, brg locking RH (Fafnir SKF & New Departure & use w/455960R91 bearing)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" cup-pt-set

1шт.

29

591879R1

SHAFT

transmission drive

1шт.

30

CLUTCH & PRESSURE PLATE (for component parts refer to "planetary clutch & plate")

2шт.

31

591887R1

SPACER, housing cover

12шт.

32

591896R91

SEAL

OIL SEAL, gear housing (opt w/935869R91 oil seal)

2шт.

32

935869R91

SEAL

OIL SEAL, gear housing (opt w/591896R91 oil seal)

2шт.

33

591894R1

HOUSING, transmission gear

2шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

W/NUT, 5/16 x 5" C-Z type 2

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

34

606818R1

SPRING

release LH lower and RH upper

2шт.

34

606819R1

SPRING

release LH upper and RH lower

2шт.

35

365865R91

BEARING ASSY,3.812" ID x 2.26" OD x 0.807"

clutch throw-out

2шт.

36

591897R1

CARRIER

clutch throw-out brg

2шт.

37

618465R91

MAGNETIC PLUG

PLUG, 1/2" sq-hd magnetic pipe

2шт.
