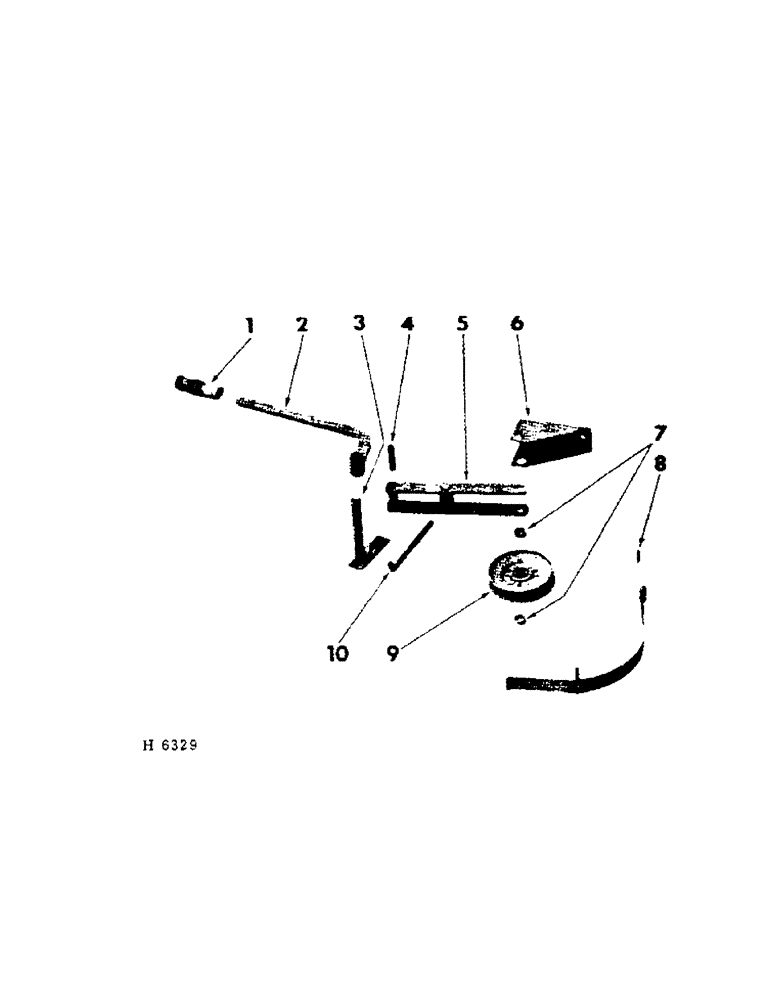

Запчасти Case IH 201 (A-068) - COUNTERSHAFT DRIVE BELT TIGHTENER (14) - MAIN GEARBOX & DRIVE

1

610659R1

GRIP, tightener handle

1шт.

2

611805R11

LEVER, belt tightener

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

3

611724R11

ROCKSHAFT, tightener

1шт.

21868V

WASHER

WASH, 29/32 x 1-1/2 x 16 ga

1шт.

C-PIN, 1/4 x 1-1/2"

1шт.

4

611909R1

BEARING, tightener arm pivot

1шт.

5

611998R1

ARM, tightener

1шт.

BOLT W/NUT, 3/8 x 3" mach

1шт.

BOLT W/NUT, 3/8 x 3-1/4" mach

1шт.

551177R1

WASHER

WASH, 21/32 x 1-1/4 x 16 ga

2шт.

LK-WASH, 3/8"

1шт.

LK-WASH, 5/8"

1шт.

6

611882R1

SHIELD, drive belt idler

1шт.

BOLT W/NUT, 5/8 x 3-1/4" mach

1шт.

551177R1

WASHER

WASH, 21/32 x 1-1/4 x 16 ga

2шт.

LK-WASH, 5/8"

1шт.

7

611723R1

SPACER, idler pulley

2шт.

8

611877R11

GUIDE, drive belt

1шт.

NUT, 3/8"

4шт.

LK-WASH, 3/8"

2шт.

9

662959R91

PULLEY ASSY.

PULLEY, tightener idler

1шт.

BOLT W/NUT, 5/8 x 3-1/4" mach

1шт.

551177R1

WASHER

WASH, 21/32 x 1-1/4 x 16 ga

2шт.

LK-WASH, 5/8"

1шт.

10

611745R1

LINK, drive belt tightener

1шт.

NUT, 1/2"

2шт.

C-PIN, 3/16 x 1"

1шт.
