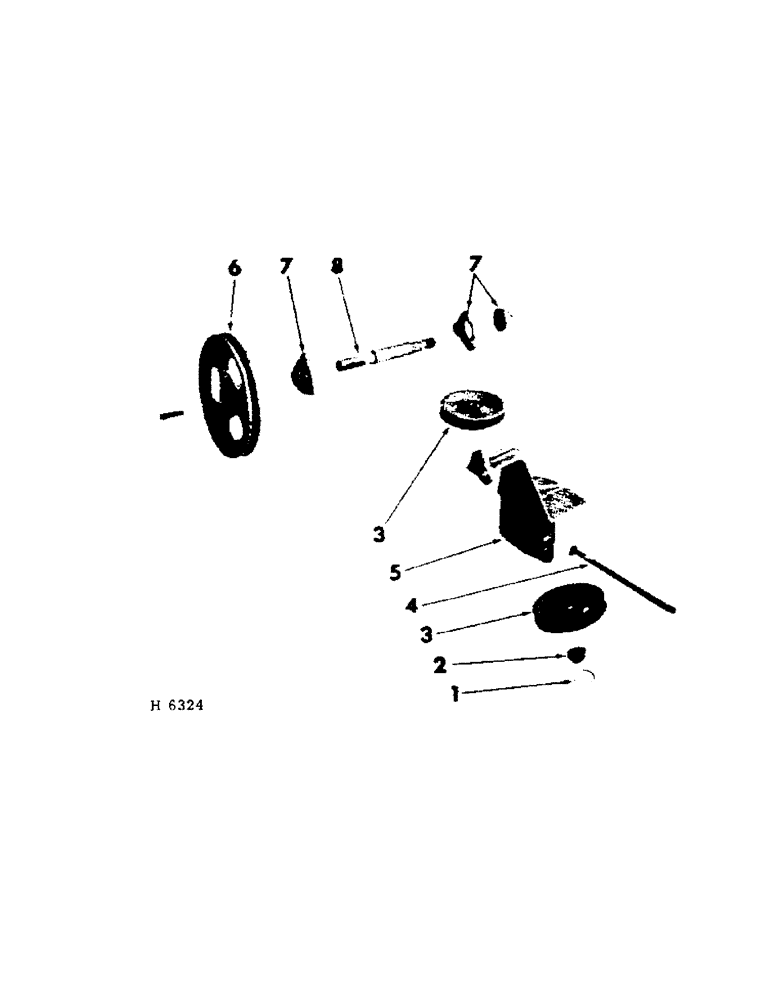

Запчасти Case IH 201 (A-068[A]) - PLATFORM DRIVE SHAFT AND IDLER (14) - MAIN GEARBOX & DRIVE

1

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , brg 1.562", Int, #156

4шт.

2

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

drive belt idler

2шт.

3

611701R1

PULLEY, drive belt idler

2шт.

BOLT, 1/2 x 1-3/4" type 2

2шт.

11002VA

WASHER

WASH, 17/32 x 7/8 x 16 ga

4шт.

LK-WASH, 1/2"

2шт.

4

611988R1

BOLT, belt tightener (1/2 x 11" crg)

1шт.

NUT, 1/2"

2шт.

5

611705R1

SUPPORT, drive belt idler

1шт.

BOLT W/NUT, 3/8 x 1" crg

4шт.

LK-WASH, 3/8"

4шт.

6

613940R1

PULLEY, universal joint drive shaft

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" gib-hd

1шт.

7

613409R91

FLANGE

BEARING, universal joing drive shaft

2шт.

BOLT W/NUT, 3/8 x 1-1/4" crg

6шт.

LK-WASH, 3/8"

6шт.

8

611765R1

SHAFT, universal joint drive

1шт.
