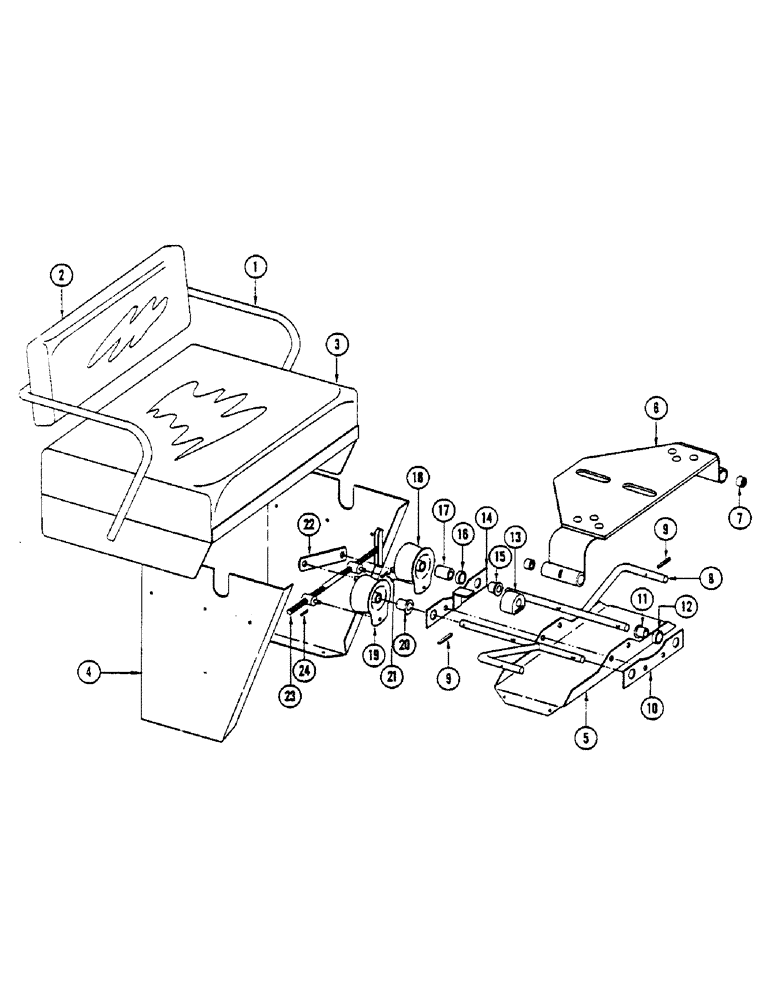

Запчасти Case IH 1255 (066) - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

FH339507

FRAME - seat

1шт.

2

FHO45161

CUSHION - back rest

1шт.

3

FH752204

CUSHION - seat

1шт.

4

FH380758

POST - seat

1шт.

5

FH268573

ADAPTER - seat

1шт.

6

F94725

SUPPORT - suspension

1шт.

7

E3330S

BUSHING

4шт.

8

F94728

SHAFT - seat

2шт.

9

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

4шт.

10

F94727

TIE BAR - front

1шт.

11

G46002

FLANGED BEARING

BEARING - flanged

2шт.

12

A26462

WASHER

- front

4шт.

13

A30644

BUMPER

- rubber, rear tie bar

1шт.

14

F94726

TIE BAR - rear

1шт.

15

G46002

FLANGED BEARING

BEARING - flanged

2шт.

16

195-41

WASHER,5/8"

Rear 5/8"

4шт.

17

10953K

SPACER - spring shaft

2шт.

18

G45003

SPRING SEAT

SPRING - rubber, L. H.

1шт.

19

G45002

SPRING SEAT

SPRING - rubber, R. H.

1шт.

20

G46002

FLANGED BEARING

BEARING - flanged

2шт.

21

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

22

G45005

LINK - stabilizer

1шт.

23

F53363

STUD - stabilizer

1шт.

24

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.
