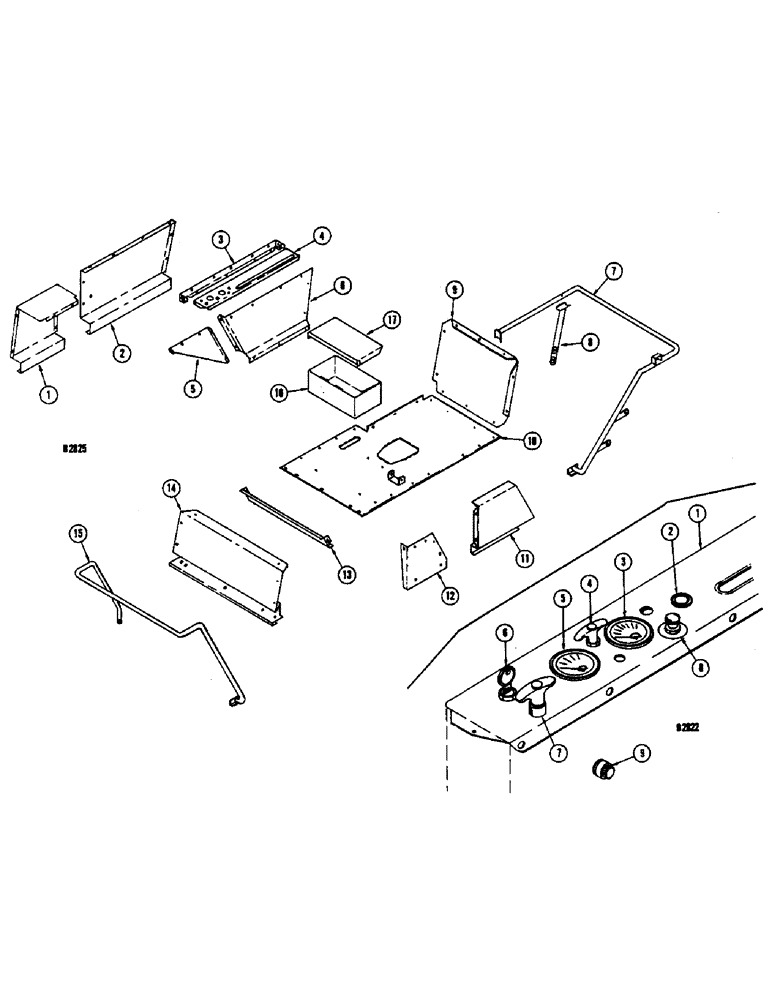

Запчасти Case IH 1255 (064) - OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F35080

PANEL - R. H.

1шт.

2

F35090

MOUNTING - console

1шт.

3

F35094

HOOD - instrument panel

1шт.

4

F35123

PANEL - instrument

1шт.

5

F35100

TRIM - console

1шт.

6

F35081

PANEL - console

1шт.

7

F35073

RAIL - guard, rear

1шт.

8

F35089

SUPPORT - rear rail

1шт.

9

F35076

BULKHEAD

1шт.

10

F35111

FLOORBOARD

1шт.

11

F35072

PANEL - L. H.

1шт.

12

F35099

PANEL - inner L. H.

1шт.

13

F35095

PANEL - front lower

1шт.

14

F35098

PANEL - front

1шт.

15

F35075

RAIL - front guard

1шт.

16

FH442376

TOOL BOX

1шт.

17

FH497073

LID - tool box

1шт.

1

F35123

PANEL - instrument

1шт.

2

F84923

LIGHT - amp. indicator

1шт.

F21950

BULB

1шт.

3

F13117

GAUGE

- temperature

1шт.

4

FH741355

CHOKE CONTROL - (Gas engine)

1шт.

4

FH741363

FUEL SHUT OFF CONTROL - (Diesel engine)

1шт.

5

F13116

SCREW

GAUGE - oil pressure

1шт.

6

A24511

SWITCH

- ignition, w/key (Gas engine)

1шт.

6

A24510

SWITCH

- ignition (Diesel engine) w/keys

1шт.

A24509

KEY

- ignition (Set of 2)

1шт.

7

FH741330

CONTROL - (Gas engine) (Replaced by F36758)

1шт.

7

F36758

CONTROL - (Gas engine) (Replaces FH741330)

1шт.

7

FH741348

CONTROL - (Diesel engine) (Replaced by F36759)

1шт.

7

F36759

CONTROL - (Diesel engine) (Replaces FH741348)

1шт.

8

FHO41137

SWITCH

- flashing warning light

1шт.

9

FH741108

FUSE HOLDER

1шт.

223-9

FUSE,9 Amp, Type SFE

1шт.
