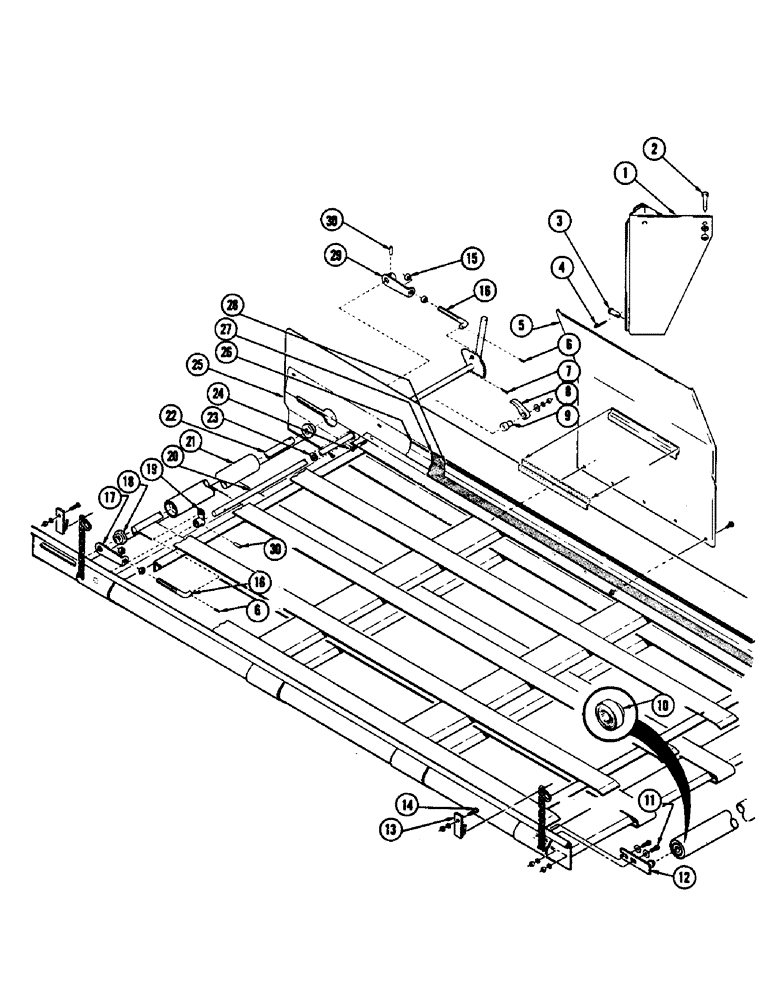

Запчасти Case IH 1255 (135A) - DOUBLE WINDROW ATTACHMENT 14 FT. CONVEYOR (58) - ATTACHMENTS/HEADERS

1

F36227

BRACKET - rear support

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

138-201

LOCK PIN,1/2" x 1 1/4", Slotted

Pin, 1/2" x 1 1/4", Slotted

1шт.

4

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

5

F36254

JAM NUT

SHIELD - center

1шт.

6

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

8

FH240812

DOG - ratchet

1шт.

9

FH240820

SPACER

1шт.

10

FHO50377

BEARING

BEARING

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

FH146951

BRACKET

- stationary roller

1шт.

13

F36076

BRACKET - chain assembly

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

25-107

NUT,7/16"-14, G5

- 7/16" N. C. hex.

2шт.

16

FH239715

SPECIAL BOLT

DRAWBOLT

2шт.

17

FH239699

STRAP

1шт.

18

FHO51540

BEARING, BALL

BEARING

2шт.

19

FH239657

TIGHTENER - lower end

1шт.

20

F36219

ROD - assembly

1шт.

21

F36218

JAM NUT

IDLER

1шт.

22

F36233

SHAFT - roller

1шт.

23

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

24

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

25

F36213

FRAME - conveyor

1шт.

26

F36242

STRAP - bottom support

1шт.

27

F36241

STRIP - rear belting

1шт.

28

F36256

JAM NUT

STRAP - top support

1шт.

29

FH239681

BRACKET - upper

1шт.

30

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.
