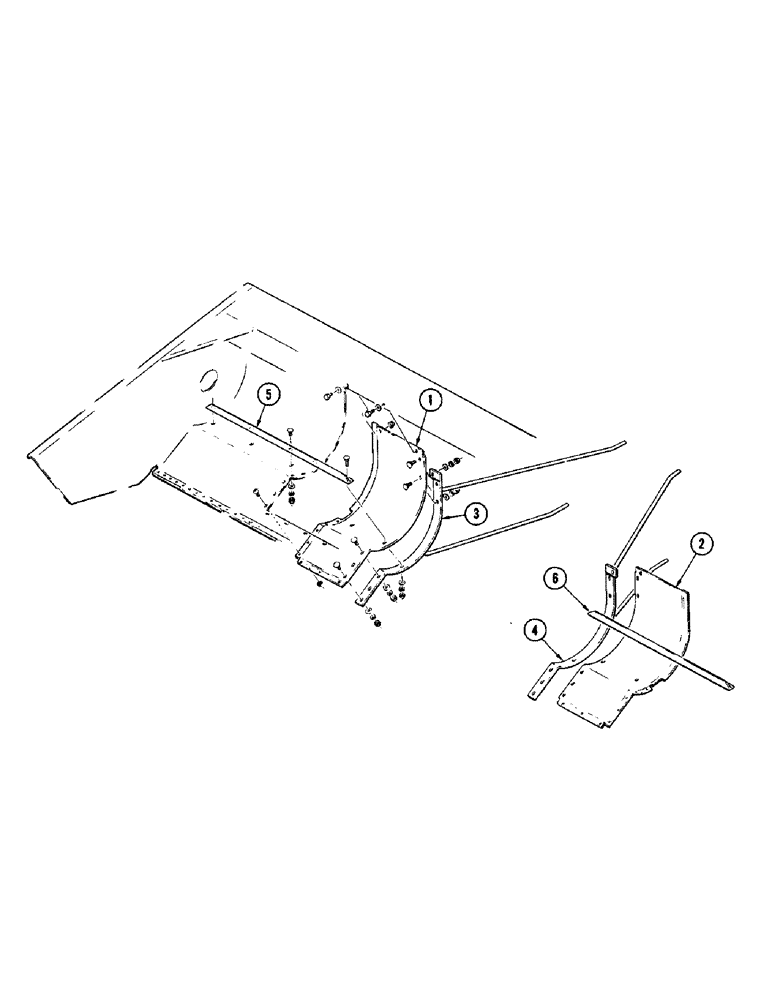

Запчасти Case IH 1255 (128) - NARROW CENTER OPENING KIT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
FH424044
EXTENSION - pan R. H.
1шт.
2
FH424036
EXTENSION - pan L. H.
1шт.
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
-5/16" x 1-1/4" N. C. hex.
2шт.
95-5
WASHER,3/8" x 7/8" x .083"
- 5/16" flat
4шт.
92-5
LOCK WASHER,5/16"
4шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N. C. hex.
8шт.
3
FH496976
ROD - forming R. H.
1шт.
4
FH496968
ROD - forming L. H.
1шт.
11-516
BOLT,Short NK, 5/16"-18 x 1", G2
CARRIAGE, Short NK, 5/16"-18 x 1", G2
10шт.
95-5
WASHER,3/8" x 7/8" x .083"
- 5/16" flat
10шт.
92-5
LOCK WASHER,5/16"
10шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N. C. hex.
10шт.
5
F35129
STRIPPER - R. H.
1шт.
6
F35128
STRIPPER - L. H.
1шт.
11-512
SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
8шт.
11-520
X
BOLT - 5/16" x 1-1/4" rhd. sq. nk.
2шт.
95-5
WASHER,3/8" x 7/8" x .083"
- 5/16" flat
10шт.
92-5
LOCK WASHER,5/16"
10шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N. C. hex.
10шт.
B17164
DECAL KIT DECALS
1шт.
321-11
TRADEMARK DECALS
1шт.
321-838
PATENTS DECALS
1шт.
321-851
NEGATIVE GROUND DECALS
1шт.
321-852
FUEL SHUT-OFF DECALS
1шт.
321-983
J. I. CASE CO. DECALS
1шт.
321-1338
CAUTION - do not tow DECALS
1шт.
321-1339
BE CAREFUL - shields etc. DECALS
1шт.
321-1340
WARNING - block header DECALS
1шт.
321-1341
INSTRUCTION - road, field DECALS
1шт.
321-1342
INSTRUCTION - safety flasher DECALS
1шт.
321-1343
INSTRUCTION - drive and steering DECALS
1шт.
321-1344
CAUTION - lug bolts DECALS
2шт.
321-1345
INSTRUCTION DECALS
2шт.
321-1346
1255 DECALS
2шт.
321-1347
HYDROSTATIC DRIVE DECALS
2шт.
321-1348
CASE DECALS
1шт.
321-1349
CASE DECALS
1шт.
321-1350
PANEL - black DECALS
2шт.
321-1351
PANEL - black DECALS
2шт.
321-1400
WARNING DECALS
1шт.
321-1401
DIESEL - fuel tank DECALS
1шт.
321-1402
INSTRUCTION DECALS
1шт.
321-1403
WARNING DECALS
1шт.
321-1405
INSTRUCTION DECALS
1шт.
Выбрано товаров: 45
