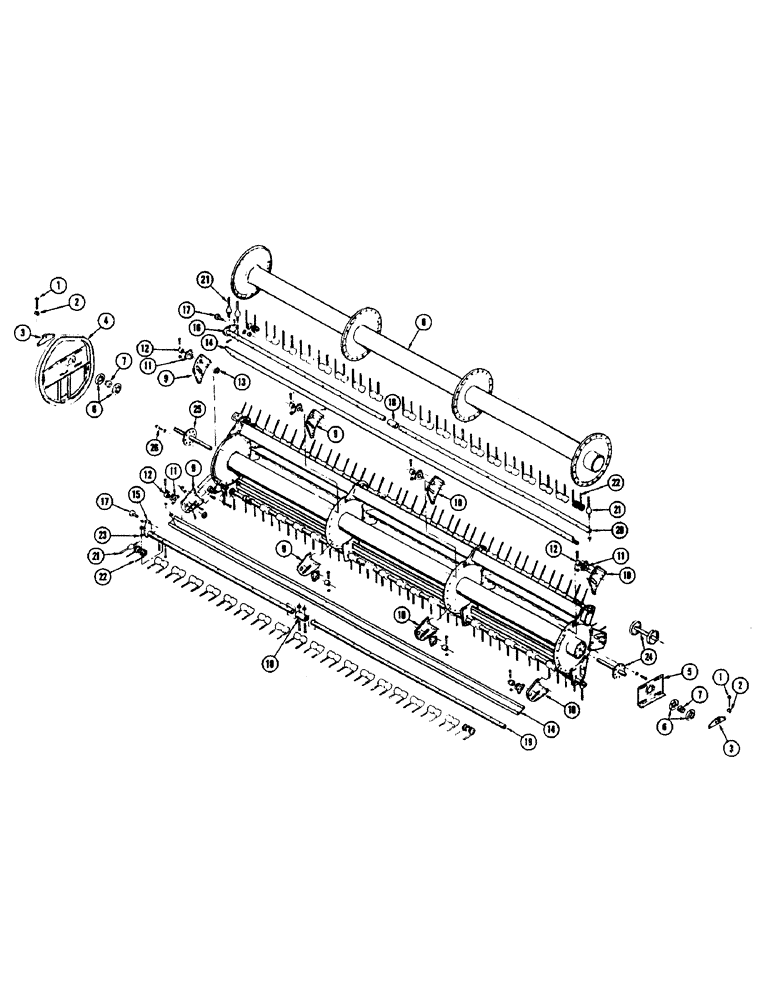

Запчасти Case IH 1255 (116) - REEL (58) - ATTACHMENTS/HEADERS

1

113-225

BOLT,Hex, 3/8" - 16 x 5", Gr 5, Full Thd

2шт.

195-104

WASHER,3/8"

- flat 3/8"

2шт.

2

FH312876

TRUNNION

2шт.

3

FH312868

BRACKET - adjusting

2шт.

4

FH288381

CAM TRACK

1шт.

5

FH288399

BRACKET - L. H. mounting

1шт.

6

F62225

FLANGE

- bearing

4шт.

7

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

2шт.

F62226

COLLAR

1шт.

8

FH444133

TUBE - reel, 10 ft.

1шт.

8

F35052

TUBE - reel, 12 ft.

1шт.

8

F35053

TUBE - reel, 14 ft. (14 ft. shown)

1шт.

9

FH428300

SUPPORT - R. H. (5-10 ft., 5-12 ft., 10-14 ft.)

1шт.

10

FH428292

SUPPORT

- L. H.

10шт.

11

F35402

FLANGE

HOUSING - bearing (15-10 ft., 15-12 ft., 20-14 ft.)

1шт.

12

F35401

BEARING

- (15-10 ft., 15-12 ft., 20-14 ft.)

1шт.

13

FHO52290

BUSHING - 1-3/8" x 14 ga. mach.

10шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

5шт.

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

14

FH444257

BAT - reel, 10 ft.

5шт.

14

FH428326

BAT - reel, 12 ft.

5шт.

14

FH444265

BAT - reel, 14 ft.

5шт.

15

FH444182

TUBE - tine, R. H. "A"

3шт.

16

FH444208

TUBE - tine, R. H. "B"

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

5шт.

17

FH710426

BEARING - cam follower

5шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N. F. hex. jam

5шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

18

FH428334

SPLICE

5шт.

19

FH444216

TUBE - tine, L. H. "A", 10 ft.

3шт.

19

FH428243

TUBE - tine, L. H. "A", 12 ft.

3шт.

19

FH444232

TUBE - tine, L. H. "A", 14 ft.

3шт.

20

FH444224

TUBE - tine, L. H. "B", 10 ft.

2шт.

20

FH428250

TUBE - tine, L. H. "B", 12 ft.

2шт.

20

FH444240

TUBE - tine, L. H. "B", 14 ft.

2шт.

21

FH756163

TINE

- single

9шт.

22

FH750075

TINE

- double (68-10 ft., 83-12 ft., 98-14 ft.)

1шт.

23

FH261024

CLIP

- (68-10 ft., 83-12 ft., 98-14 ft.)

1шт.

24

FH428268

SHAFT - reel L. H. 10 ft.

1шт.

24

F35051

SHAFT - reel L. H., 12 ft. and 14 ft.

1шт.

25

FH496638

SHAFT - reel, R. H., 12 ft. and 14 ft. only

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12 ft. and 14 ft. only Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

92-6

LOCK WASHER,3/8"

8шт.
