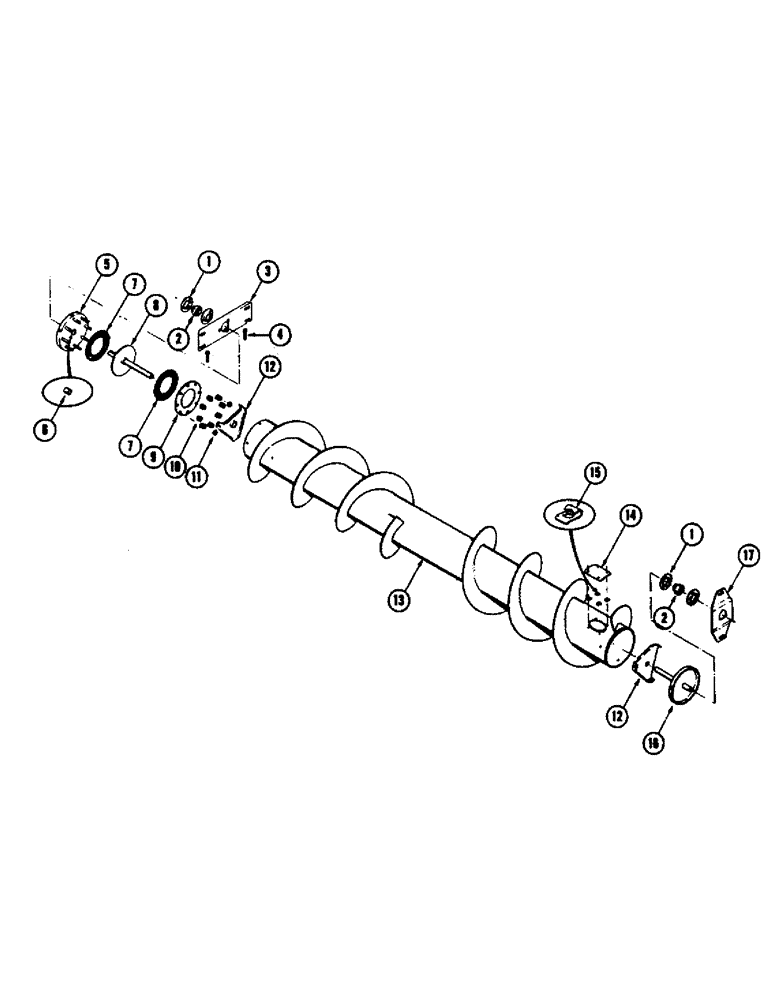

Запчасти Case IH 1255 (114) - PEA SPECIAL AUGER (58) - ATTACHMENTS/HEADERS

1

F62225

FLANGE

- bearing

4шт.

2

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

2шт.

F62226

COLLAR

1шт.

3

FH371674

PLATE - R. H. mounting

1шт.

4

FHO72934

BOLT - 3/8" x 2-1/2" N. C. hex., full thread

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

4шт.

5

FH260729

SUPPORT

BULKHEAD

1шт.

6

FHO52563

BEARING

1шт.

7

FHO27565

DISC

- clutch

2шт.

8

FH260752

PLATE - clutch

1шт.

9

FH260745

PLATE - pressure

1шт.

10

FHO58644

SPRING - compression

8шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N. C. elastic stop

8шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

8шт.

12

F18441

HEAD

BULKHEAD

2шт.

13

FH488817

AUGER - 10 ft. header

1шт.

13

FH456087

AUGER - 12 ft. header (Conversion kit)

1шт.

14

F9225

PLATE - cover

1шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14A x 5/8" pan hd. tapping

4шт.

15

445406

SPRING NUT,Tinn, 1/4"-14

- speed #14A

4шт.

16

FH488692

BULKHEAD

1шт.

174-208

SCREW - 3/8" Phil. rec. hd. mach. N.F.

15шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex.

15шт.

92-6

LOCK WASHER,3/8"

15шт.

17

FH488726

PLATE - L. H. mounting

1шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- 1/2" x 1-1/2" rhd. sq. nk.

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N. C. hex.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

95-8

WASHER,1/2"

flat 1/2"

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.
