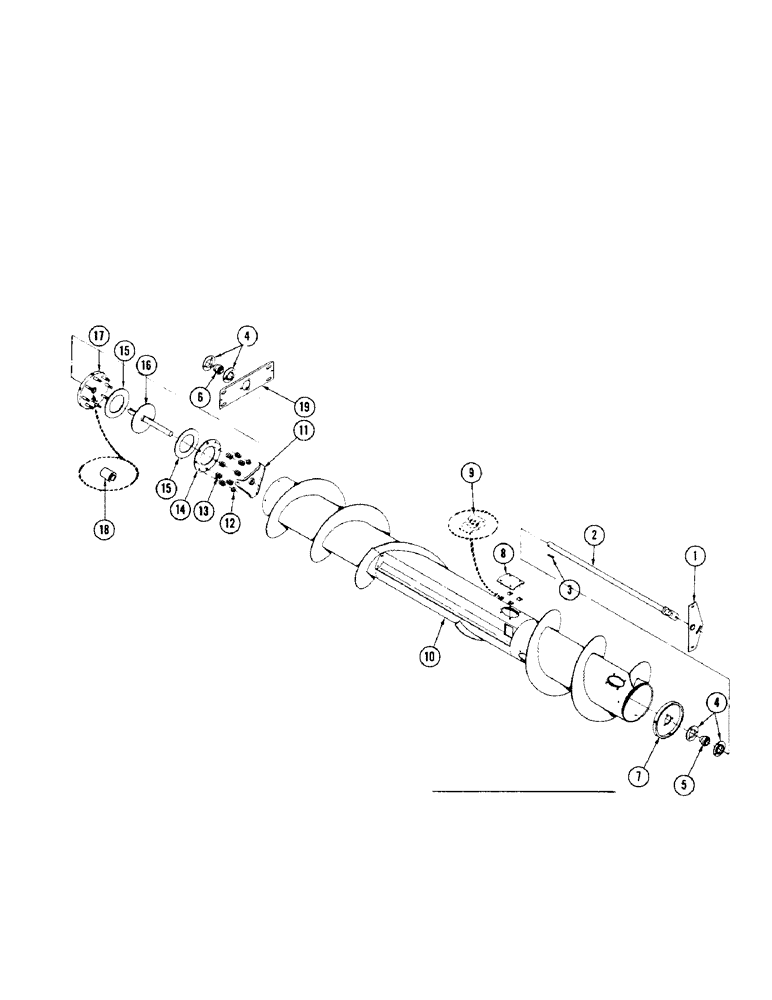

Запчасти Case IH 1255 (112) - AUGER (58) - ATTACHMENTS/HEADERS

1

FH429753

BRACKET - L. H. mounting

1шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- 1/2" x 1-1/2" rhd. sq. nk., nut, L.W. and fl. wshr.

2шт.

2

F35858

SHAFT - adjusting, 10 ft. (Conversion kit)

1шт.

2

FH432849

SHAFT - adjusting, 12 ft. header

1шт.

2

FH442327

SHAFT - adjusting, 14 ft. header

1шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

L.W. and fl. wshr. Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

3

T33565

BUCKET TOOTH KEY

KEY - straight

1шт.

4

F62225

FLANGE

- bearing

4шт.

5

1443CKA

BALL BEARING

BEARING

1шт.

F62234

COLLAR

1шт.

6

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

F62226

COLLAR

1шт.

7

FH311845

BULKHEAD

1шт.

8

F9225

PLATE - cover

5шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14A x 5/8" pan hd. tapping

20шт.

9

445406

SPRING NUT,Tinn, 1/4"-14

- speed #14A

20шт.

10

FH432724

AUGER - 10 ft. header (Conversion kit)

1шт.

10

FH432716

AUGER - 12 ft. header

1шт.

10

FH432740

AUGER - 14 ft. header

1шт.

11

F18441

HEAD

BULKHEAD

1шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N. C. elastic stop

8шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

8шт.

13

FHO58644

SPRING - compression

8шт.

14

FH260745

PLATE - pressure

1шт.

15

FHO27565

DISC

- clutch

2шт.

16

FH260752

PLATE - clutch

1шт.

17

FH260729

SUPPORT

BULKHEAD

1шт.

18

FHO52563

BEARING

1шт.

174-208

SCREW - 3/8" x 3/4" Phil. rhd. mach. N. F.

12шт.

19

FH371674

BRACKET - R. H. mounting

1шт.
