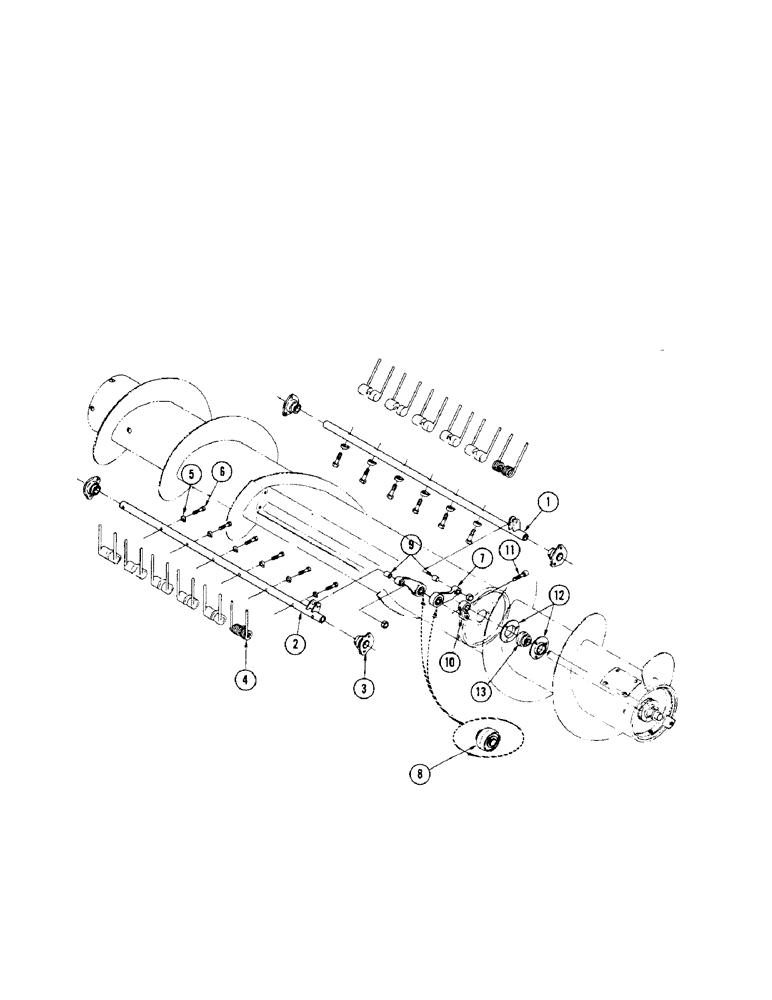

Запчасти Case IH 1255 (112[A]) - AUGER FOLDING TINES (58) - ATTACHMENTS/HEADERS

1

FH432872

TUBE - tine "A" (Measure approx. 8" from ears to nearest tine hole)

1шт.

2

FH432880

TUBE - tine "B" (Measure approx. 2-1/2" from ears to nearest tine hole)

1шт.

3

FH308171

BEARING

4шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

4

FH756270

TINE - double

12шт.

5

FH261024

CLIP

- tine

12шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

12шт.

7

FH711804

ARM - control

2шт.

8

B10700

BEARING ASSY,0.7505" ID x 1.8504" OD x 1.219"

BEARING - (Less collar)

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

2шт.

FHO52761

BUSHING

- 3/4" x 14 ga. mach.

1шт.

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- 3/4" x 3-3/4" N. C. hex.

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

FH311910

BUSHING

2шт.

75-524

X

SCREW - 3/8" x 1-1/2" rhd. mach.

2шт.

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" Gripco lock

2шт.

10

FH407171

ARM

- crank

1шт.

11

61-640

HEX SOC SCREW,3/8"-16 x 2 1/2"

BOLT - 3/8" x 2-1/2" N. C. socket hd.

1шт.

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" N. C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

12

F62225

FLANGE

2шт.

13

1443CKA

BALL BEARING

BEARING

1шт.

F62234

COLLAR

1шт.
