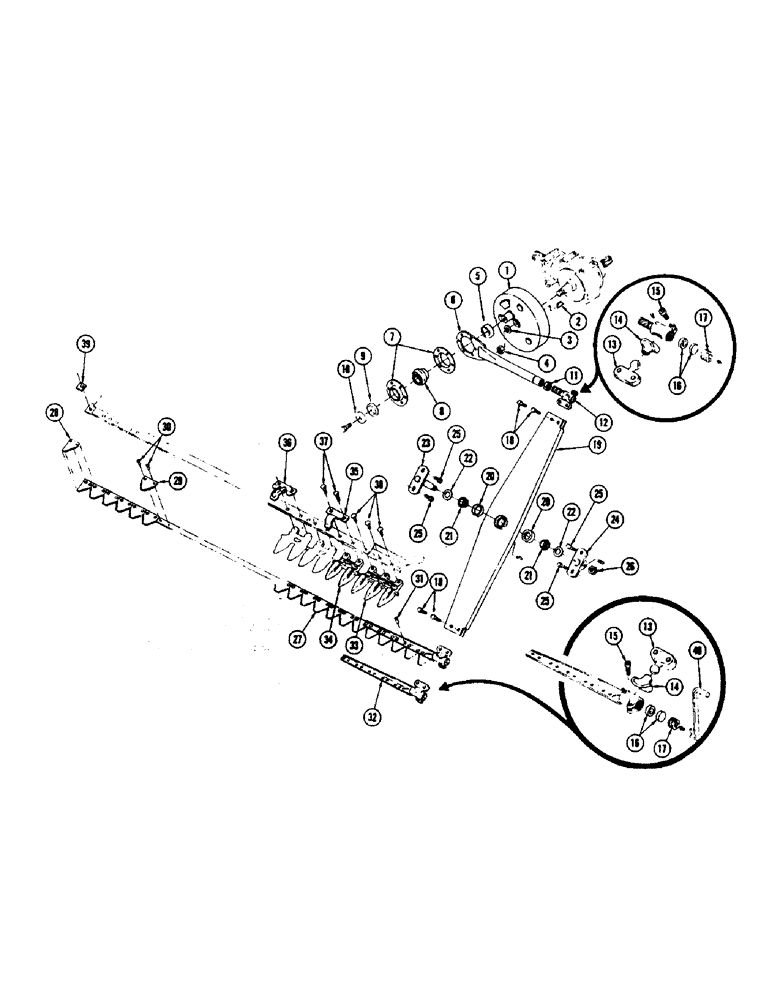

Запчасти Case IH 1255 (108) - SICKLE AND SICKLE DRIVE (58) - ATTACHMENTS/HEADERS

1

F35067

FLYWHEEL

1шт.

2

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

3

FH440321

WASHER

1шт.

4

131-37

LOCK NUT,3/4"-16

NUT - 3/4" N. F. elastic stop

1шт.

5

F35068

SPACER - pitman

1шт.

6

F35065

PITMAN - 10 ft.

1шт.

6

F35159

PITMAN - 12 ft.

1шт.

6

F35066

PITMAN - 14 ft.

1шт.

7

FH712612

FLANGE

2шт.

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5

6шт.

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N. C. Gripco lock

6шт.

8

F90485

BEARING ASSY

BEARING

1шт.

O4524B

COLLAR

1шт.

9

F35063

SPACER

1шт.

10

F35069

WASHER

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

11

FHO74526

NUT - 7/8" jam

1шт.

12

FH383588

HEAD

PITMAN HEAD

1шт.

13

FH338228

BALL

STUD BLOCK

1шт.

14

F23106

COVER

- dust

1шт.

15

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N. C. hex. socket hd., and L.W.

1шт.

16

FH720458

BEARING

2шт.

17

FH264143

PLUG

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

18

FHO26450

BOLT

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N. F. hex.

4шт.

19

FH429530

SWAY BAR

1шт.

20

FHO50104

CUP

2шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

21

FHO50112

BEARING

CONE - bearing

2шт.

22

FH263764

WASHER

2шт.

23

FH123216

PIN

- sway bar

1шт.

24

FH123224

PLATE - reinforcing

1шт.

85-812

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - 1/2" x 3/4" sq. hd. set

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N. F. hex., nut, L.W., flat wshr.

4шт.

26

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N. F. slotted hex.

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

27

F35114

KNIFE ASSY

SICKLE - 10 ft. header (Top serrated sections)

1шт.

27

F35115

KNIFE ASSY

SICKLE - 12 ft. header (Top serrated sections)

1шт.

27

F35116

KNIFE ASSY

SICKLE - 14 ft. header (Top serrated sections)

1шт.

28

TF59129

CATALOG

SECTION - half, smooth

1шт.

29

F59106

KNIFE SECTION

SECTION - top serrated chr. (41-10', 49-12', 57-14')

1шт.

30

T13489

RIVET

- #5-1/2 x 9/16" O.H. plt. (72-10', 89-12', 104-14')

1шт.

31

T13492

RIVET

- #5-1/2" x 7/8" O.H. pltd.

11шт.

32

F96374

HEAD - sickle (Includes ref. 13, 14, 15, 16, 17)

1шт.

F35117

KNIFE ASSY

SICKLE - 10 ft. header (Smooth sections)

1шт.

F35118

KNIFE ASSY

SICKLE - 12 ft. header (Smooth sections)

1шт.

F35119

KNIFE ASSY

SICKLE - 14 ft. header (Smooth sections)

1шт.

T13009

KNIFE SECTION

SECTION - smooth (41-10', 49-12', 57-14') Also includes ref. 28, 30, 31 and 32.

1шт.

33

FH429472

GUARD - triple

1шт.

34

FHO49239

GUARD

- double (19-10', 23-12', 27-14')

1шт.

35

FH142984

HOLDER

CLIP - hold-down, high clearance

1шт.

36

FH241216

CLIP

- hold-down (12-10', 14-12', 17-14')

1шт.

37

111-402

CARRIAGE BOLT

BOLT - 7/16" x 1-1/2" rhd. sq. nk. #5 (26-10', 30-12', 36-14')

1шт.

38

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, (15-10', 19-12', 21-14') Short NK, 7/16"-14 x 1 1/4", G5

1шт.

129-104

NUT,7/16"-14, G5

1шт.

39

FH429464

SPACER

1шт.

40

FH380360

OPEN END WRENCH

WRENCH - adjusting

1шт.
