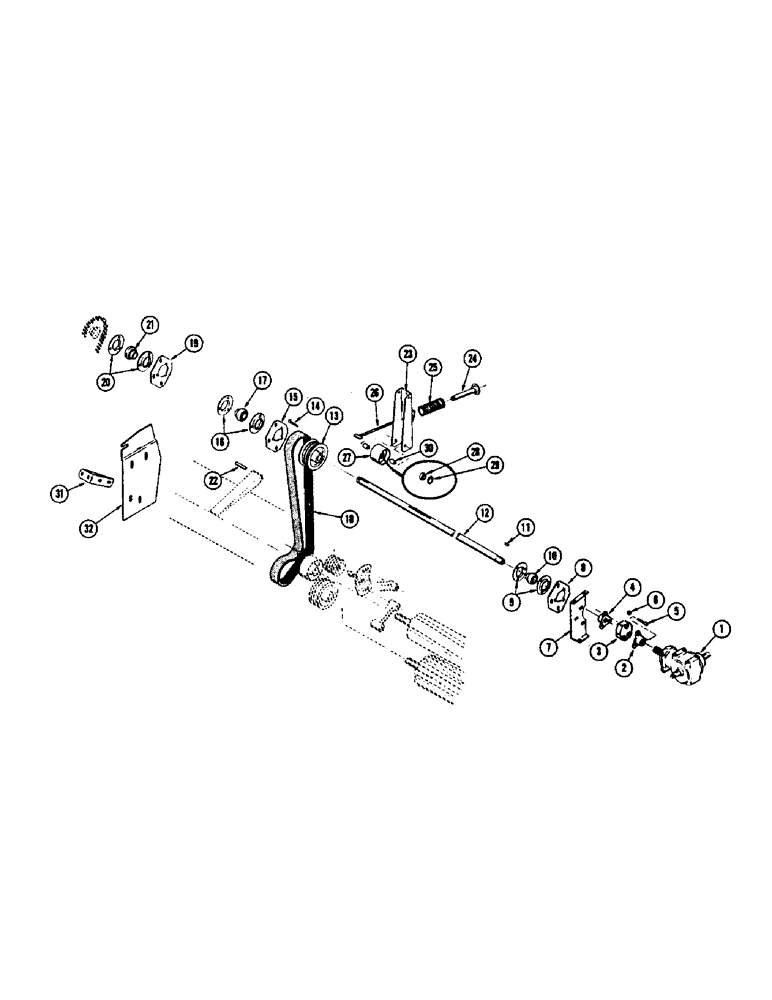

Запчасти Case IH 1255 (104) - HEADER DRIVE, CROSS SHAFT (58) - ATTACHMENTS/HEADERS

1

NSS

NOT SOLD SEPARAT

GEAR BOX

1шт.

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

8шт.

2

FH494047

COUPLER - splined

1шт.

3

FH727610

COUPLING - bonded

1шт.

4

FH493999

COUPLER - tapered

1шт.

5

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

BOLT - 3/8" x 2-1/4" socket hd.

6шт.

6

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N. C. Gripco

6шт.

7

F35221

BRACKET

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

7шт.

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

7шт.

92-6

LOCK WASHER,3/8"

7шт.

95-6

WASHER,3/8"

- flat 3/8"

7шт.

8

F35226

BRACKET - bearing

1шт.

9

F62225

FLANGE

- bearing

2шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

3шт.

10

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

F62226

COLLAR

1шт.

11

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

12

FH494369

JACKSHAFT - 10 ft. (Pea special)

1шт.

12

FH494377

JACKSHAFT - 12 ft.

1шт.

12

FH494385

JACKSHAFT - 14 ft.

1шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N. F. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

13

FH493676

SHEAVE - 4 groove, 6-5/8" dia.

1шт.

14

FHO61739

KEY

- 1/4" x 1/4" x 2-1/4" Gib

1шт.

15

FH494799

BRACKET - center

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

3шт.

25-108

NUT,1/2"-13, G5

- 1/2" N. C. hex.

3шт.

92-8

LOCK WASHER,1/2"

3шт.

95-8

WASHER,1/2"

flat 1/2"

3шт.

16

FH712612

FLANGE

- bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

17

F86298

BEARING ASSY

BEARING

1шт.

O885CB

COLLAR

1шт.

18

FH855239

BELT - power band

1шт.

19

FH429654

BRACKET - R. H.

1шт.

20

FH712612

FLANGE

- bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

21

K3315

BEARING ASSY

BEARING

1шт.

O885CB

COLLAR

1шт.

22

FH494476

SPACER

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

23

FH493973

ARM - idler

1шт.

24

F35047

TIGHTENER - spring

1шт.

25

FH758474

SPRING

1шт.

26

F35048

TEE BOLT

1шт.

27

FH494591

IDLER - flat

1шт.

28

T32178

BALL BEARING,0.515" ID x 1.5748" OD x 0.72"

BEARING

1шт.

29

FH740167

X

SNAP RING

1шт.

30

FH493940

SPACER

2шт.

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

31

FH480350

BRACKET

1шт.

32

FH480343

DRIVE SHIELD

1шт.
