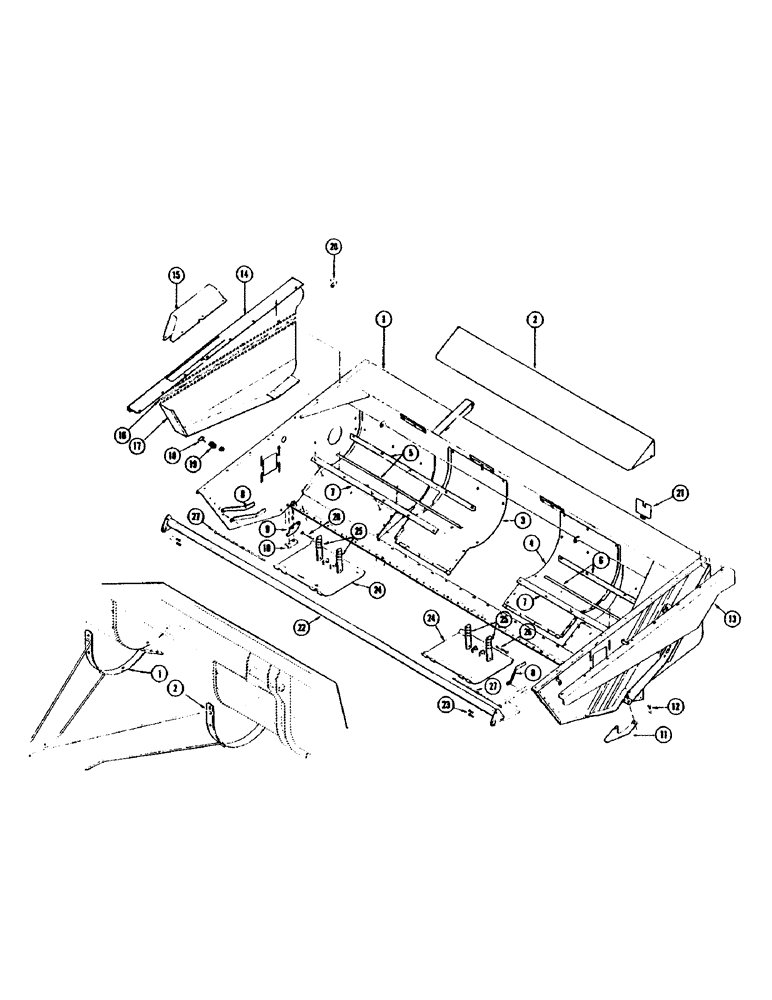

Запчасти Case IH 1255 (102) - PEA SPECIAL HEADER AND SHIELDS (58) - ATTACHMENTS/HEADERS

1

FH488858

HEADER - 10 ft.

1шт.

2

FH440461

SHIELD

1шт.

3

FH481887

PAN - R. H.

1шт.

4

FH481879

PAN - L. H.

1шт.

175-433

SCREW - 5/16" x 3/4" Phil truss hd. mach.

20шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

5

FH481820

STRIPPER - R. H. 10 ft.

2шт.

FH481846

STRIPPER - R. H. 12 ft. (Conversion kit)

2шт.

6

FH481812

STRIPPER - L. H. 10 ft.

2шт.

FH481838

STRIPPER - L. H. 12 ft. (Conversion kit)

2шт.

7

FH488718

STRIPPER - front 10 ft.

2шт.

FH457481

STRIPPER - front 12 ft. (Conversion kit)

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

18шт.

8

FH262626

STRAP

- deflector

3шт.

9

FH497065

GUARD

1шт.

10

FH429332

PLUG - R. H. panel

1шт.

11

F35054

SHOE - L. H. divider

1шт.

12

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk. gr. 5

1шт.

13

F35400

SHIELD - L. H.

1шт.

14

F35213

SHIELD - R. H. upper

1шт.

15

F35199

SHIELD

1шт.

16

FH339812

PIN - hinge

1шт.

17

F35057

WASHER

SHIELD - R. H. lower

1шт.

18

F35023

PIN

2шт.

19

FH758342

SPRING

2шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

20

F35419

LATCH

1шт.

21

F36084

COVER

1шт.

22

FH441592

LEAN BAR - 10 ft. header

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

FH459958

SHOE - skid

2шт.

25

FH459982

STRAP - adjustment

4шт.

26

FH763250

PIN - clevis 1/2" x 4-1/2"

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

27

FH377291

PIN

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

FH377259

TUBE - hinge (12 ft. conversion kit)

4шт.

1

FH488783

ROD - windrow forming L. H.

1шт.

2

FH488791

ROD - windrow forming R. H.

1шт.

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.
