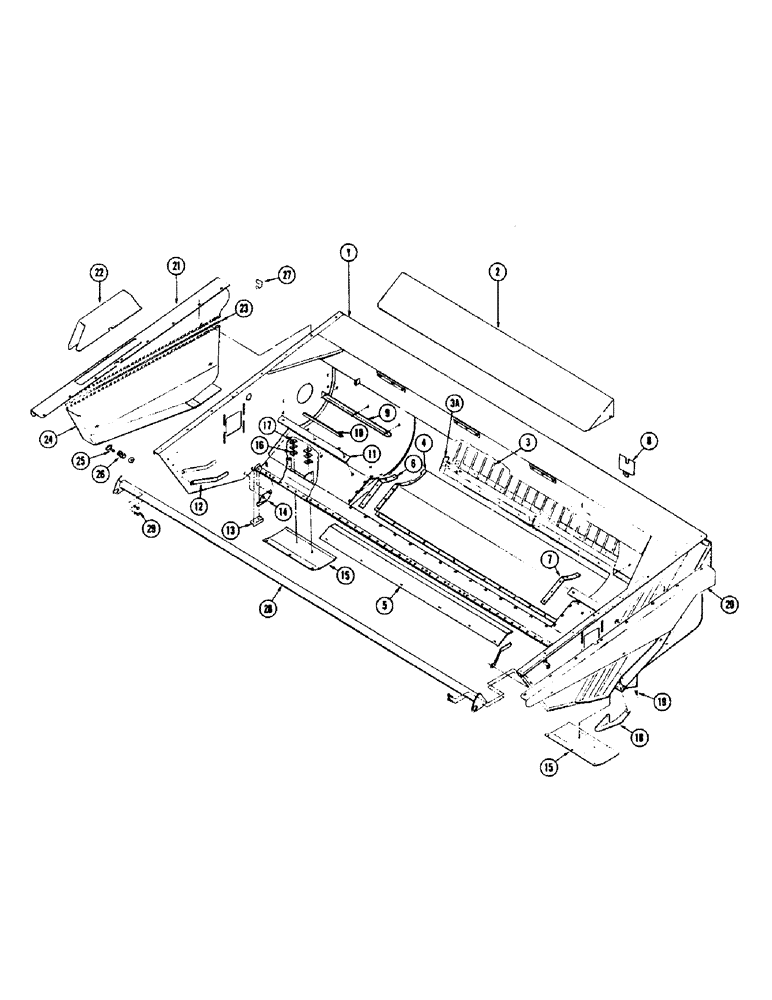

Запчасти Case IH 1255 (100) - HEADER AND SHIELDS (58) - ATTACHMENTS/HEADERS

1

FH439539

HEADER - 12 ft.

1шт.

1

FH439547

HEADER - 14 ft.

1шт.

2

FH440461

SHIELD

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

3

F35061

COMB

1шт.

3a

F35062

FRAME - comb

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

9шт.

4

F35040

PAN

- center

1шт.

77-512

SCREW

- 5/16" x 3/4" truss hed. mach.

24шт.

11-816

BOLT,Short NK, 1/2"-13 x 1", G2

- 1/2" x 1" rhd. sq. nk.

10шт.

5

F35058

PLATE - wear

1шт.

77-412

SCREW

- 1/4" x 3/4" truss hd. mach.

6шт.

6

FH481705

REINFORCEMENT - R. H.

1шт.

7

FH481697

REINFORCEMENT - L. H.

1шт.

8

F36084

COVER

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

1шт.

9

FH429357

STRIPPER - rear, 12 ft. header

2шт.

9

FH441642

STRIPPER - rear, 14 ft. header

2шт.

10

FH433078

STRIPPER - center, 12 ft. header

2шт.

10

FH429357

STRIPPER - center, 14 ft. header

2шт.

11

FH429324

STRIPPER - front, 12 ft. header

2шт.

11

FH441691

STRIPPER - front, 14 ft. header

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

12

FH262626

STRAP

- deflector

3шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

3шт.

13

FH429332

PLUG - panel R. H.

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

2шт.

14

FH497065

GUARD

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

15

FH441659

SHOE

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

73-632

SCREW - 3/8" x 2" flat hd. mach.

4шт.

16

FH271957

BLOCK - shim

4шт.

17

FH271965

SHIM

8шт.

18

F35054

SHOE - L. H. divider

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk. gr. 5

1шт.

20

F35400

SHIELD - L. H.

1шт.

21

F35213

SHIELD - R. H. upper

1шт.

22

F35199

SHIELD

1шт.

23

FH339812

PIN - hinge

1шт.

24

F35057

WASHER

SHIELD - lower, R. H.

1шт.

25

F35023

PIN

2шт.

26

FH758342

SPRING

2шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

27

F35419

LATCH

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

28

FH287714

LEAN BAR - 12 ft. header

1шт.

28

FH287722

LEAN BAR - 14 ft. header

1шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

F36481

STRIPPER - channel, 12 ft. and 14 ft. header PARTS FOR STRIPPER KITS

2шт.

11

F36431

STRIPPER - plate, 12 ft. header PARTS FOR STRIPPER KITS

2шт.

11

F36430

STRIPPER - plate, 14 ft. header PARTS FOR STRIPPER KITS

2шт.
