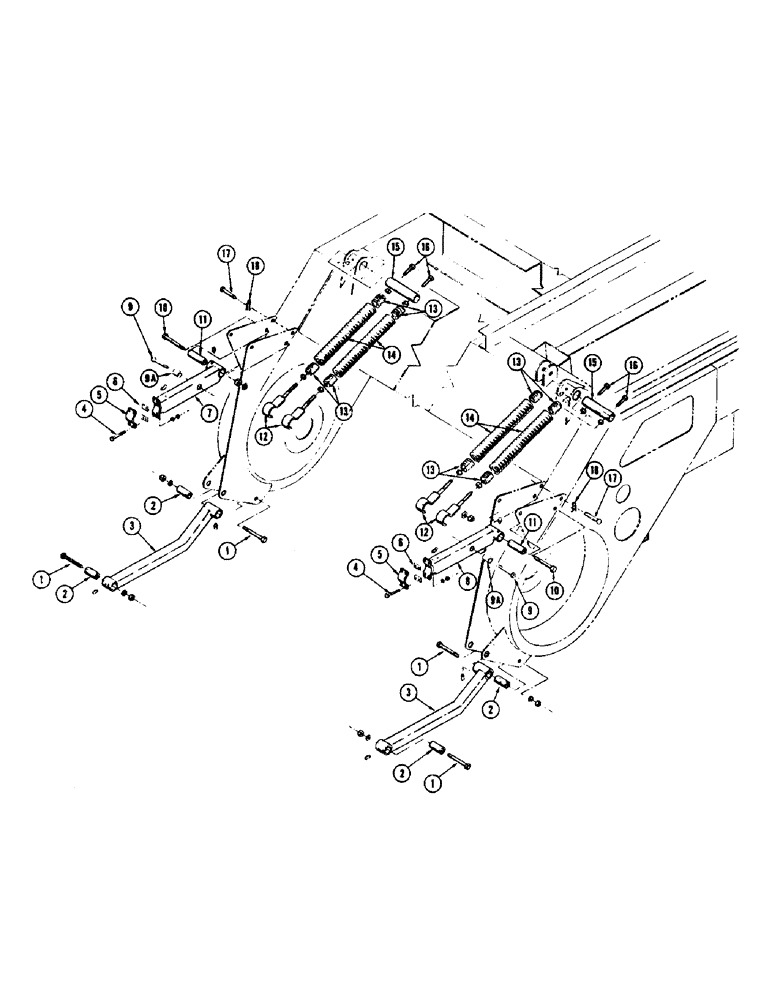

Запчасти Case IH 1255 (098) - HEADER LINKAGE AND FLOTATION (58) - ATTACHMENTS/HEADERS

1

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

FH428359

SPACER

4шт.

3

FH439802

ARM - lower lift

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

4шт.

4

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

8шт.

25-107

NUT,7/16"-14, G5

- 7/16" N. C. hex.

8шт.

92-7

LOCK WASHER,7/16"

8шт.

5

FH427948

FLANGE

2шт.

6

FH728383

SHIM

4шт.

7

F35041

ARM - upper lift, R. H.

1шт.

8

F35042

ARM - upper lift arm, L. H.

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 45 degrees

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

9

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

129-108

NUT,3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

9a

F35046

BUSHING - cyl. to upper lift arm

2шт.

10

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N. C. hex. jam

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

FH311969

SPACER

2шт.

12

FH440453

HOOK

4шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N. C. hex. jam

8шт.

13

FH378778

PLUG - spring

8шт.

14

FH758227

SPRING

4шт.

15

FH440420

PIN

2шт.

16

FH703405

BOLT - 3/4" x 5" N. C. hex., full thread

4шт.

17

FH763219

PIN - clevis 3/4" x 5" (Header lock pin)

2шт.

18

FHO62349

X

COTTER - hairpin

2шт.
