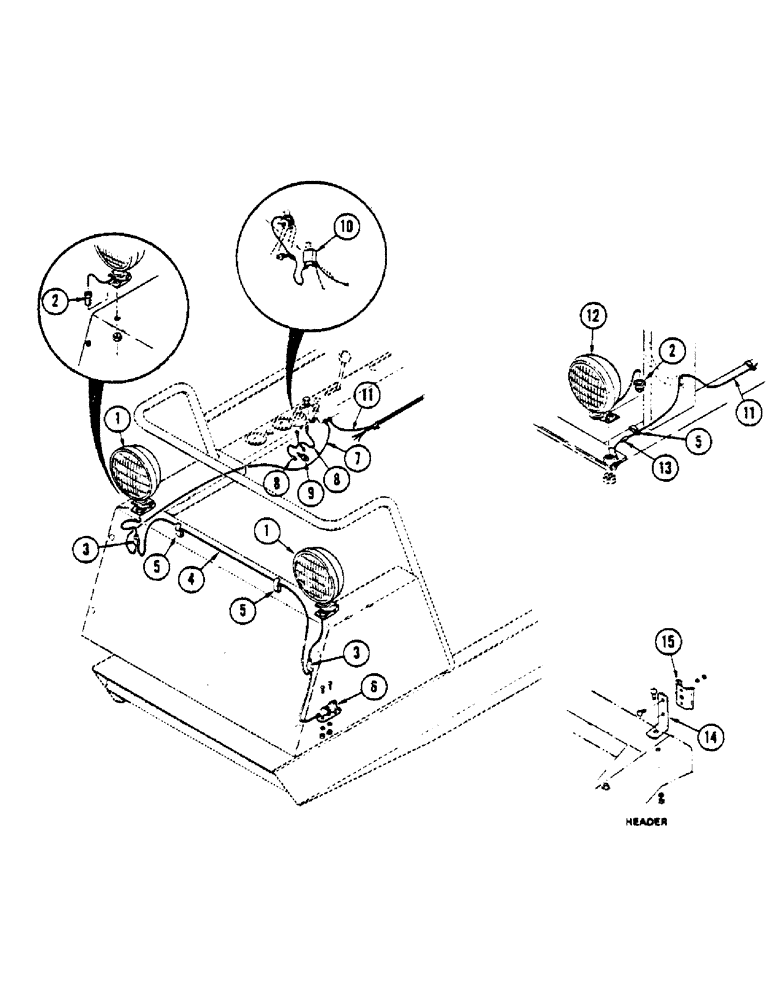

Запчасти Case IH 1255 (122) - LIGHTING (55) - ELECTRICAL SYSTEMS

1

FHO41624

HEADLAMP

2шт.

2

FH446005

BOLT - hollow

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

3шт.

3

FHO41681

CONNECTOR - 3-way

2шт.

4

FHO41749

WIRE - 44"

1шт.

5

FHO41152

CLIP - wire

4шт.

6

A8170

SOCKET

- outlet

1шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rhd. mach.

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

129-7

NUT,Hex, #10 - 24

- #10 - 24 N. C. hex.

2шт.

7

FH720268

WIRE - 58"

1шт.

8

FH741280

WIRE - 10"

2шт.

9

FH741108

HOLDER - fuse

1шт.

223-9

FUSE,9 Amp, Type SFE

- SFE 9 amp.

1шт.

10

FHO41137

SWITCH

- light

1шт.

11

FH720532

WIRE - 108"

1шт.

12

FH720292

LAMP - combination tail and flood (K-D #859-12)

1шт.

13

FHO41145

CONNECTOR

1шт.

14

FH315978

BRACKET - adapter

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

1шт.

15

A8179

SOCKET

BRACKET - warning lamp

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

92-5

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex.

2шт.
