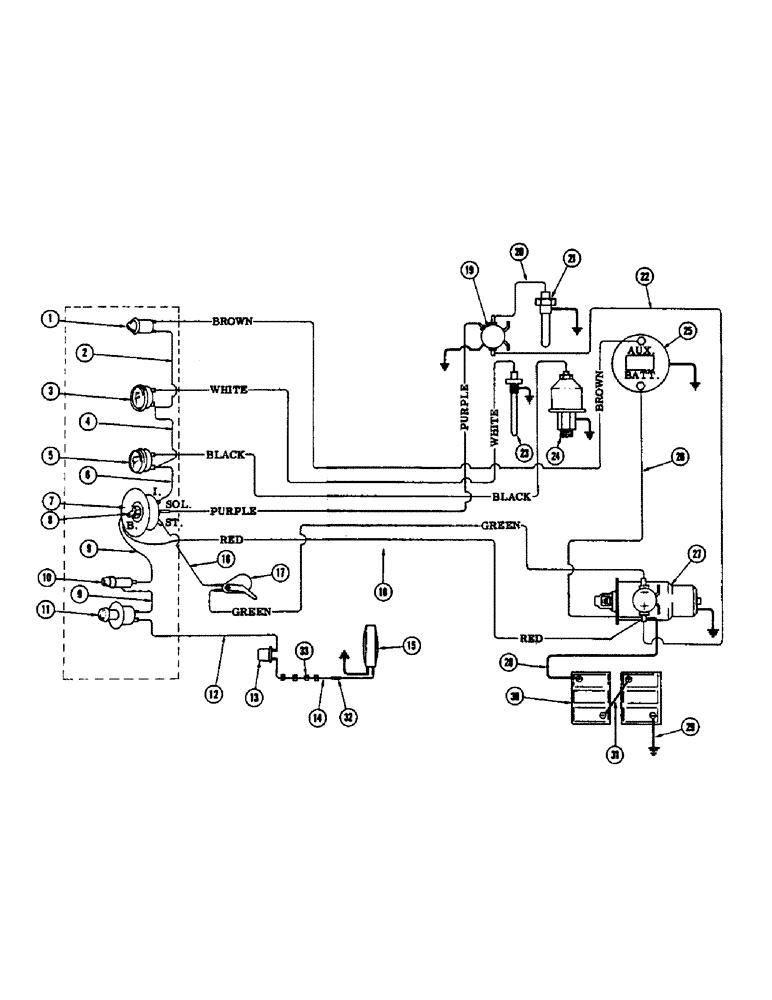

Запчасти Case IH 1255 (082) - ELECTRICAL SYSTEM, DIESEL (55) - ELECTRICAL SYSTEMS

1

F84923

LIGHT - amp. indicator warning

1шт.

F21950

BULB

1шт.

2

FH741546

WIRE - temp. gauge to warning light

1шт.

3

F13117

GAUGE

- temperature

1шт.

4

FH741272

WIRE - temp. gauge to oil pressure gauge

1шт.

5

F13116

SCREW

GAUGE - oil pressure

1шт.

6

FH741272

WIRE - oil gauge to ign. switch "I"

1шт.

7

A24510

SWITCH

- starting (Diesel) includes keys

1шт.

8

A24509

KEY

- ignition switch (Set of 2)

1шт.

9

FH741280

WIRE - switch to, Serial Range: fuse-switch

2шт.

10

FH741108

FUSE HOLDER

1шт.

223-9

FUSE,9 Amp, Type SFE

- SFE 9 amp.

1шт.

11

FHO41137

SWITCH

- flashing warning light

1шт.

12

FH722314

WIRE - flasher, Serial Range: sw.-flasher

1шт.

13

FH721852

LIGHT, WARNING

FLASHER

1шт.

14

FH741306

WIRE -, Serial Range: flasher-light

1шт.

15

FH721829

LAMP

LIGHT - flashing warning

1шт.

16

FH741694

WIRE - ign. sw. "S" to lock out switch

1шт.

17

FH741686

SWITCH

- lockout

1шт.

18

FH741322

WIRE HARNESS

1шт.

BROWN - amp., Serial Range: lite-alternator

1шт.

WHITE - temp. ga. to temp. sender

1шт.

BLACK - oil ga. to oil sender

1шт.

PURPLE - ign. sw. to heater sol.

1шт.

RED - ign. sw. to starter sol.

1шт.

GREEN - lockout sw. to starter sol.

1шт.

19

A57069

SOLENOID

- heater

1шт.

20

A21482

CABLE

- heater, Serial Range: sol.-heater

1шт.

21

A37775

HEATER

1шт.

22

A36896

CABLE PULLING GRIP

CABLE - heater, Serial Range: sol.-starter

1шт.

23

A21462

SENDER UNIT

UNIT - temperature sending

1шт.

24

A35031

SENDER UNIT

UNIT - oil pressure sending

1шт.

25

A41090

ALTERNATOR

1шт.

A41083

REGULATOR

1шт.

26

FH741520

WIRE - alternator to starter sol.

1шт.

27

A36582

STARTING MOTOR

1шт.

28

FH721050

CABLE - battery (Pos.) to starter sol.

1шт.

29

FH721068

CABLE - battery, Serial Range: negative-ground

1шт.

30

G44890

BATTERY - 6-volt

2шт.

31

FH720425

CABLE - jumper

1шт.

FHO41020

HOLD - down-battery (Not shown)

2шт.

FH702316

BOLT

- battery hold-down (Not shown)

4шт.

32

FHO41145

CONNECTOR - wire

1шт.

33

FH722470

BAND - wedge lock

4шт.
