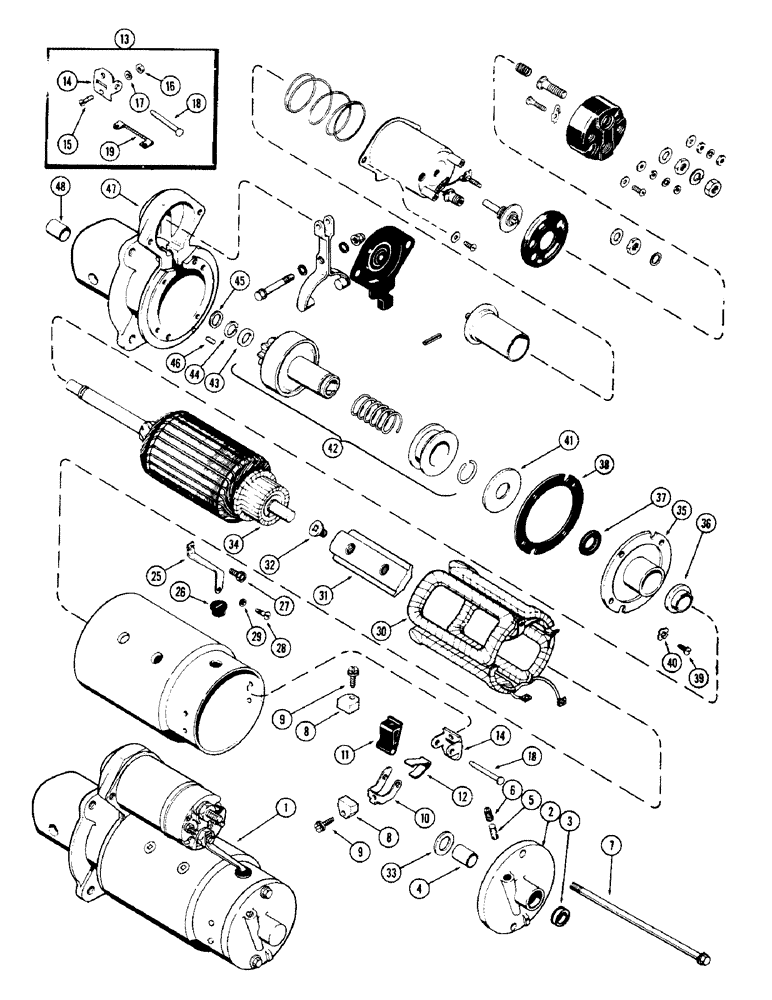

Запчасти Case IH 1255 (058) - A36583 STARTING MOTOR, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A36583

STARTER MOTOR

STARTER ASSY. (Delco #1107583)

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end

1шт.

3

R15021

PLUG

- expansion

1шт.

4

R15020

BUSHING

- armature shaft

1шт.

5

A41979

WICK

- oil

1шт.

6

221-1041

PLUG

- oil hole, 1/8" P.T. headless slotted

1шт.

7

A25552

BOLT

BOLT - thru, Serial Range: head-body

2шт.

8

A25356

BRUSH, COMMUTATOR

BRUSH - armature

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (Includes lockwasher)

4шт.

10

A40217

HOLDER

- brush ground

2шт.

11

R15027

HOLDER

- brush insulating

2шт.

12

A25359

SPRING

- brush pressure

2шт.

13

A25379

KIT

SUPPORT KIT - brush holder

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT - brush holder (Order A25379)

1шт.

15

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd.

2шт.

16

R15032

X

NUT - support screw

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

18

A41983

PIN

- brush holder

1шт.

19

A25363

ELECTRICAL WIRE

LEAD - brush ground

1шт.

25

A40225

CONNECTOR, ELEC

CONNECTOR - solenoid

1шт.

26

A41980

GROMMET

- connector

1шт.

27

A42023

SCREW,#10 - 32 x 1/2"

-, Serial Range: conn.-solenoid

1шт.

28

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- conn. to lead, #10-32 x 7/16" rd. hd.

1шт.

29

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

30

A25319

COIL

ASSY. - field

1шт.

31

A25391

SHOE

- pole

4шт.

32

74-610

SCREW,3/8" - 24 x 5/8"

- 3/8 x 5/8" N.F. flat hd.

8шт.

33

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, commutator end

1шт.

34

A40219

ARMATURE

1шт.

35

A40223

PLATE

ASSY. - center bearing

1шт.

36

A41982

BUSHING

- center bearing

1шт.

37

A40228

OIL SEAL

SEAL - oil, center bearing

1шт.

38

A41981

GASKET

- center brg. plate

1шт.

39

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" rd. hd.

4шт.

40

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - lock, #10 Shakeproof

4шт.

41

R15043

WASHER

- thrust, Serial Range: drive-bearing

1шт.

42

A41871

DRIVE

ASSY. - starter

1шт.

43

R15049

COLLAR

- stop, starter drive

1шт.

44

R15048

RING

- snap. collar

1шт.

45

A25385

WASHER

- thrust, starter drive

1шт.

46

R15041

PIN - locating, drive end

1шт.

47

A40224

FRAME

HOUSING ASSY. - drive end

1шт.

48

A40227

BUSHING

- armature shaft

1шт.
