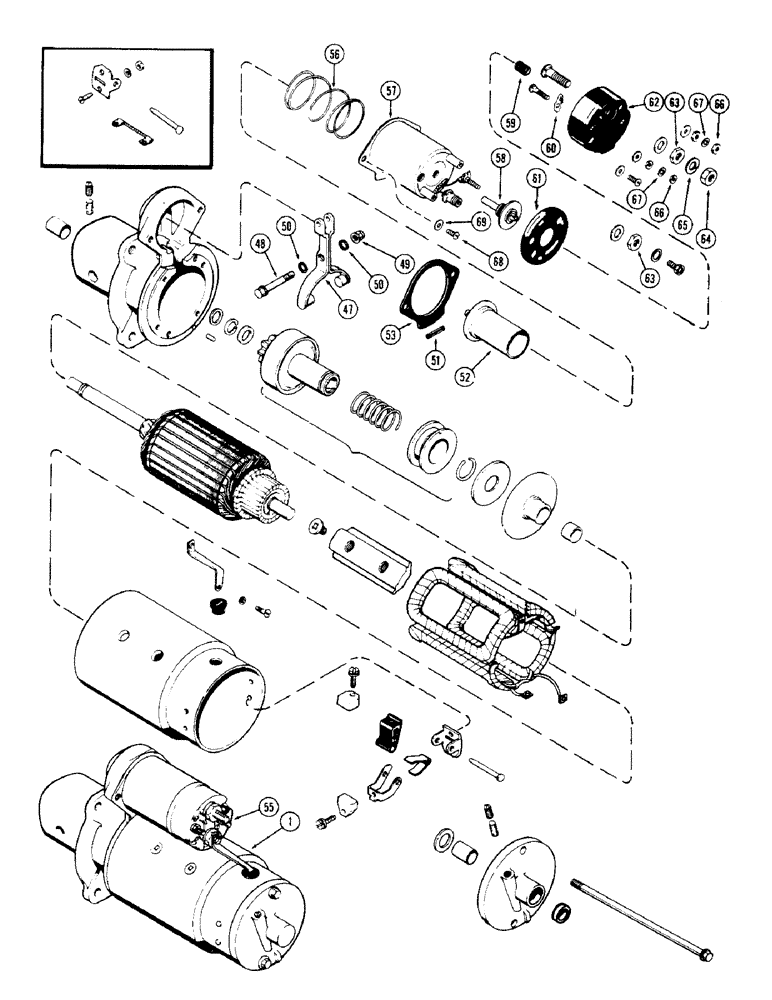

Запчасти Case IH 1255 (056) - A36582 STARTING MOTOR, (CONTD), 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A36582

STARTER ASSY. - (Delco #1107584) Order A36583 from page 58

1шт.

47

A25297

LEVER - drive shaft

1шт.

48

A40520

BOLT

- pivot, shift lever

1шт.

49

425-145

JAM NUT,Jam, 5/16"-18, G5

Pivot stud Jam, 5/16"-18, G5

1шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

51

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

52

A40218

PLUNGER

- solenoid

1шт.

53

A42182

GASKET

- solenoid to drive hsg.

1шт.

55

G44891

SOLENOID

ASSY.

1шт.

56

A40221

SPRING

- plunger return

1шт.

57

NSS

NOT SOLD SEPARAT

CASE ASSY. - (Order G44891)

1шт.

58

A42061

SWITCH

CONTACT ASSY.

1шт.

59

A42059

SPRING

- contact return

1шт.

60

A42060

HALF BLADE

BLADE - contact

1шт.

61

NSS

NOT SOLD SEPARAT

GASKET - cover

1шт.

62

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

63

R15015

X

NUT - copper, 3/8" N.C. hex.

2шт.

64

87016560

JAM NUT,Jam, 3/8"-16, G5

Battery terminal Jam, 3/8"-16, G5

1шт.

65

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

66

129-16

NUT,#8-32

Terminal #8-32

2шт.

67

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

68

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- solenoid to hsg., 1/4 x 1/2" N.C. rd. hd.

2шт.

69

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
