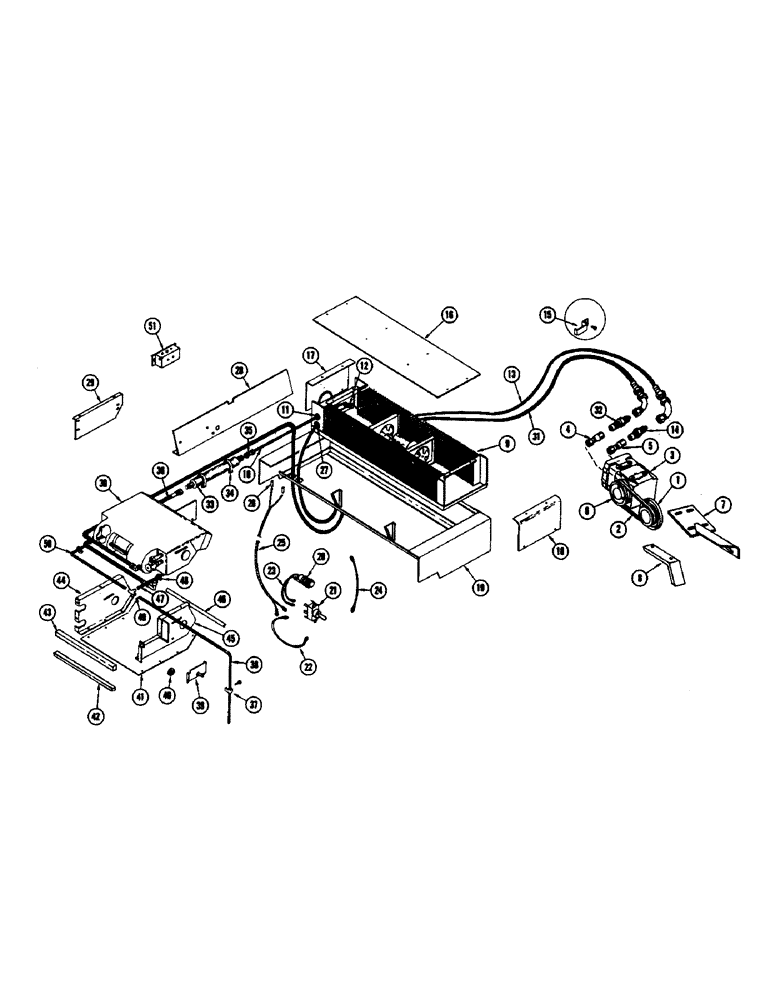

Запчасти Case IH 1255 (134) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

1

F2405

SHEAVE - compressor drive

1шт.

2

F53522

"V" BELT - compressor drive

1шт.

3

COMPRESSOR

1шт.

4

COUPLER - female (5/8" tube)

1шт.

5

COUPLER - female (1/2" tube)

1шт.

6

CLUTCH - 7" magnetic

1шт.

7

F96507

BRACKET - compressor mounting

1шт.

8

F55079

SHIELD - flywheel

1шт.

9

CONDENSER

1шт.

10

HOSE - condenser to receiver (33")

1шт.

11

F14499

GROMMET

2шт.

12

COUPLER - male (3/8" tube)

1шт.

13

HOSE - compressor to condenser (150")

1шт.

14

COUPLER - male (1/2" tube)

1шт.

15

F17487

CLAMP

3шт.

F14784

PAD - clamp

3шт.

16

F14288

COVER - top, condenser

1шт.

17

F14273

COVER - R.H., condenser

1шт.

18

F14272

COVER - L.H., condenser

1шт.

19

F87951

MOUNTING - condenser

1шт.

20

F87939

LAMP - indicator

1шт.

F21950

BULB - red (Mfg. #4312)

1шт.

21

F87934

SWITCH - toggle

1шт.

22

F87938

WIRE - jumper, fuse block to toggle switch (4")

1шт.

23

A13751

WIRE - jumper (3")

2шт.

24

F87936

WIRE - ground (8")

1шт.

25

F87937

WIRE HARNESS - switch to condenser (36")

1шт.

26

F21330

CONNECTOR - wire

4шт.

27

F11046

GROMMET

1шт.

28

F93018

SHIELD - side

1шт.

29

F53520

COVER - air conditioner

1шт.

30

EVAPORATOR

1шт.

HARNESS - wire, evaporator to blower switch

1шт.

GREEN - thermostat & hi temp cut-out switch

1шт.

RED - blower "C" & hi temp. cut-out switch.

1шт.

BLUE - comp. clutch & thermo. switch.

1шт.

YELLOW - blower "B" & terminal box.

1шт.

BLACK - blower "M" & blower motor.

1шт.

F21330

CONNECTOR

2шт.

31

HOSE - compressor to evaporator (200")

1шт.

32

COUPLER - male (5/8" tube)

1шт.

33

RECEIVER - drier (horizontal)

1шт.

34

CLAMP - drier receiver

2шт.

35

COUPLER - female (3/8" tube)

1шт.

36

HOSE - receiver to evaporator (42")

1шт.

37

CLAMP - drain hose

4шт.

38

F14267

HOSE - drain, evaporator (76")

1шт.

39

F87946

VENT - evaporator

1шт.

40

F14499

GROMMET

6шт.

41

F14270

COVER - bottom, evaporator

1шт.

42

F14269

SEAL - bottom, evaporator

1шт.

43

F14268

SEAL - top, evaporator

1шт.

44

F87944

COVER - R.H., evaporator

1шт.

45

F87945

COVER - L.H., evaporator

1шт.

46

F14281

SEAL - front, evaporator

1шт.

47

F14264

HOSE - evaporator tee (3-1/2")

1шт.

48

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

49

F14266

TEE - evaporator hose

1шт.

50

F14265

HOSE - evaporator tee (16")

1шт.

51

F22290

BOX - terminal

1шт.
