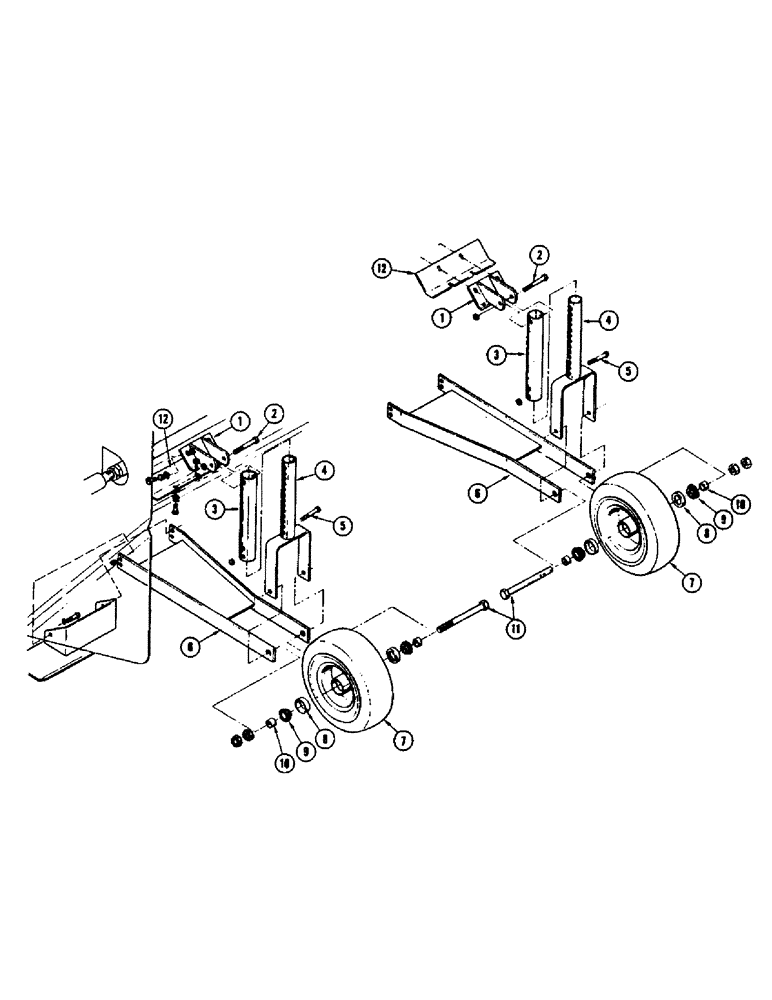

Запчасти Case IH 1255 (124) - GAUGE WHEELS, HIGH CLEARANCE (44) - WHEELS

1

FH445932

BRACKET - support

2шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" rhd. sq. nk.

8шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

195-525

WASHER,3/8", SAE

- 3/8" flat

4шт.

2

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, , Gripco 1/2"-13, GA

2шт.

3

FH445999

TUBE - support

2шт.

4

FH445973

FORK - support

2шт.

5

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, , Gripco 1/2"-13, GA

2шт.

6

FH337360

FORK

2шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

FHO26476

RIM AND TIRE ASSEMBLY

2шт.

8

B12410

BEARING, CUP,1.782" OD

CUP - bearing

2шт.

9

FH711044

BEARING

CONE - bearing

4шт.

10

FH337527

SPACER

4шт.

11

13-12144

CAPSCREW,Hex, 3/4" - 10 x 9", Gr 5

BOLT - 3/4" x 9" N. C. hex.

2шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N. C. hex. jam

4шт.

12

F35127

PLATE - reinforcing

2шт.
