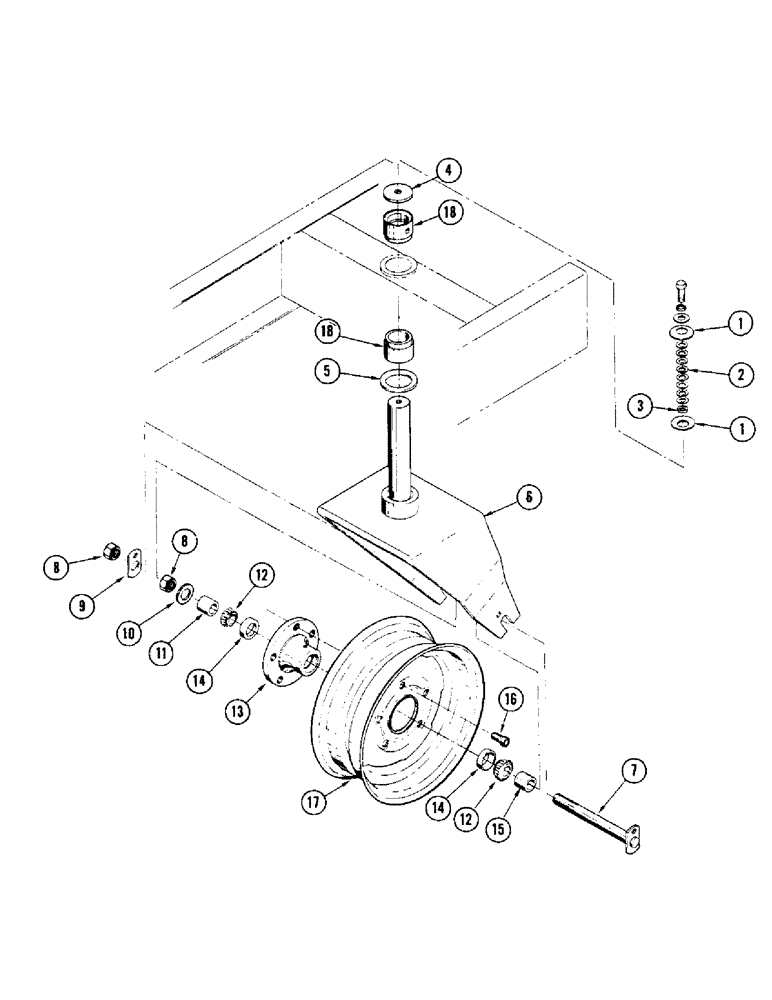

Запчасти Case IH 1255 (068) - TAIL WHEEL (44) - WHEELS

1

FH757872

DISC - spring

2шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

195-41

WASHER,5/8"

1шт.

2

FHO52175

BUSHING - 5/8" x 18 ga. mach.

1шт.

3

FH493585

SPACER

1шт.

4

FH444497

WASHER

1шт.

5

F35217

SHIM - wear

1шт.

6

F35218

FORK - 7.60 x 15

1шт.

6

F36087

FORK - (Wide flotation) - 11L x 14

1шт.

7

FH305565

AXLE

1шт.

7

F36092

SPLIT PIN/SAFETY PIN

AXLE - (Wide flatation)

1шт.

8

25-1516

NUT,Jam, 1"-14, G5

- 1" - 14 N. F. jam

2шт.

9

FH305581

CLIP

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N. C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

2шт.

10

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, (Wide flotation wheel) Ext Tooth, 1"

1шт.

11

FH239293

SPACER

1шт.

11

F36096

SPACER - (Wide flotation wheel)

1шт.

12

FHO51805

CONE

- bearing

2шт.

13

FH239285

HUB

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees short

1шт.

14

FHO50104

CUP

- bearing

2шт.

15

G10474

SPACER

1шт.

15

F36095

SPACER - (Wide flotation wheel)

1шт.

16

A31040

WHEEL BOLT,9/16" - 18 x 1 13/32", Gr 5

BOLT - wheel

5шт.

17

FHO26047

WHEEL - for 7:60 x 15 tire

1шт.

17

F35411

WHEEL - for 11L x 14 tire (Wide flotation wheel)

1шт.

18

F35408

SCREW

BUSHING

2шт.
