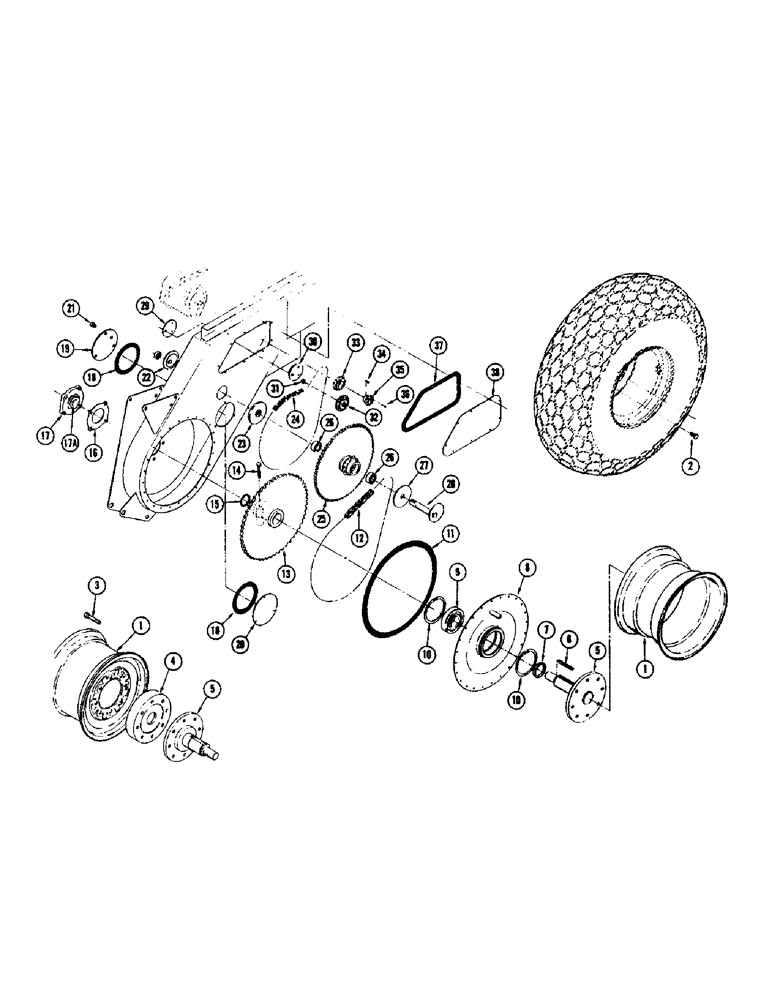

Запчасти Case IH 1255 (062) - DRIVE WHEELS AND CHAIN CASE (44) - WHEELS

1

FHO26625

WHEEL - (For 13.5 x 16 tire) (12 ft - 14 ft. headers)

2шт.

1

FHO26773

WHEEL - (For 11.2 x 24 tire) (10 ft. header)

2шт.

2

FHO26781

BOLT

- lug, L. H. wheel

8шт.

3

FHO26799

BOLT - lug, R. H. wheel

8шт.

4

FH493684

RING - R. H. wheel only

1шт.

5

F35124

AXLE

2шт.

6

FH444539

KEY

2шт.

7

FH444471

SPACER

2шт.

8

FH444273

PLATE - mounting, assembly

2шт.

9

FH712083

BEARING

1шт.

10

T38110

SNAP RING,5.00", Int, #500

Ring, Snap, 5.00", Int, #500

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

48шт.

92-6

LOCK WASHER,3/8"

48шт.

11

FH744177

GASKET

2шт.

12

FHO89482

CHAIN - drive (See chain page)

2шт.

13

FH444331

SPROCKET

2шт.

14

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

F35283

SNAP RING,#231, Ext

Ring, Snap, #231, Ext

2шт.

16

FH744458

GASKET

2шт.

17

FH712513

FLANGE BEARING

2шт.

17a

FH712539

BEARING

1шт.

F62107

COLLAR

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N. C. hex.

8шт.

92-8

LOCK WASHER,1/2"

8шт.

18

FHO44289

GASKET

4шт.

19

FH493577

COVER - lower chain housing, inside

2шт.

20

FH235515

PLATE - cover, outside

2шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

12шт.

92-5

LOCK WASHER,5/16"

12шт.

21

FHO45609

BREATHER

2шт.

22

FH285601

CAM

2шт.

23

FH444513

SPACER

2шт.

24

FHO89490

CHAIN - drive (See chain page)

2шт.

25

FH444455

SPROCKET - jackshaft, assembly

2шт.

26

7285A

BEARING

2шт.

27

FH444489

SPACER

2шт.

28

FH444315

JACKSHAFT

2шт.

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

25-1014

NUT,7/8"-9, G5

2шт.

29

FH312256

COVER - cam

2шт.

30

FH312249

CAM

2шт.

31

FH252239

SPACER

2шт.

32

F78573

SPROCKET ASSY.

SPROCKET - idler

2шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N. C. hex.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

4шт.

33

FHO89508

SPROCKET - 12T

2шт.

34

FH761254

KEY

2шт.

35

FHO89516

BUSHING - taper lock

2шт.

36

F35050

KEY

2шт.

37

FH744169

GASKET

2шт.

38

FH444463

COVER - upper

2шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

18шт.

92-5

LOCK WASHER,5/16"

18шт.
