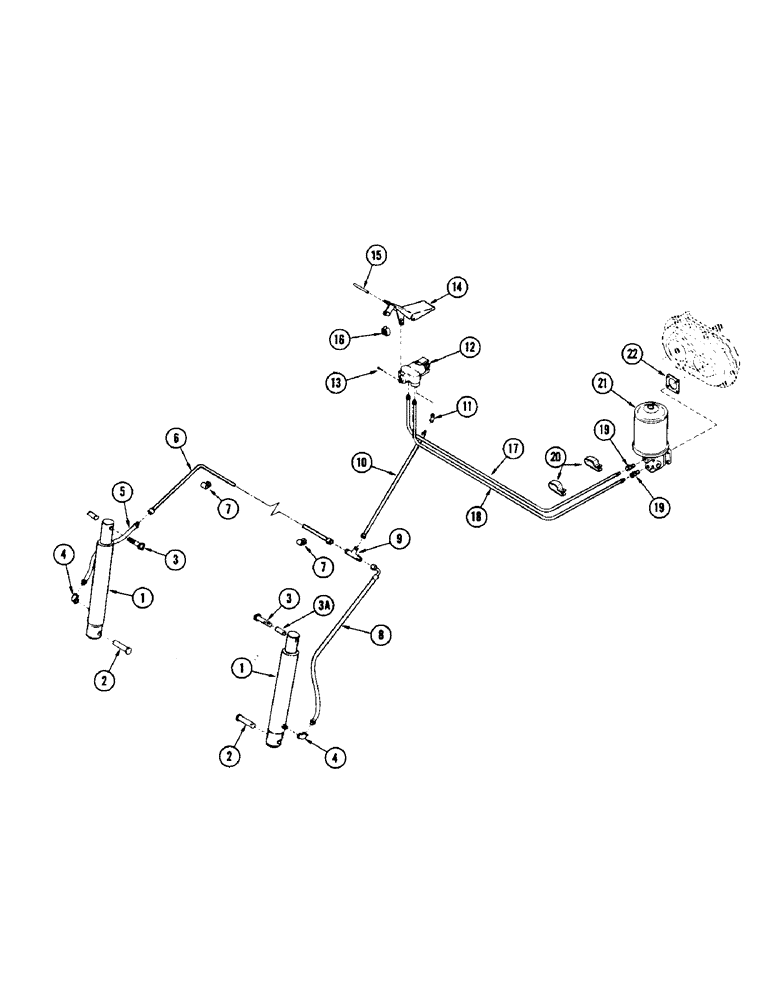

Запчасти Case IH 1255 (092) - HEADER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

FH842435

CYLINDER - header lift

2шт.

2

FH763201

PIN - clevis 1" x 3-1/2"

2шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

3

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

129-108

NUT,3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3a

F35046

BUSHING - cyl. to upper lift arm

2шт.

4

221-413

ELBOW,90 Degree, 3/8"-18, NPT

FITTING - 3/8" NPTF x 90 degrees street el

2шт.

5

FH842476

HOSE - R. H. cylinder

1шт.

6

FH842633

LINE - hydraulic, R. H. cylinder

1шт.

7

FH756478

CLAMP - line

2шт.

8

FH842468

HOSE - L. H. cylinder

1шт.

9

FH746743

TEE

FITTING - 3/8" JIC flared tee

1шт.

10

FH842450

HOSE -, Serial Range: tee-valve

1шт.

11

221-403

X

FITTING - 3/8" x 45 NPTF street el

1шт.

12

FH842369

VALVE - header control

1шт.

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

13

FHO63867

PIN - clevis 3/16" x 1"

1шт.

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

14

FH296293

PEDAL

1шт.

15

FH296459

SPACER

1шт.

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- 5/16" x 4" N. C. hex.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex.

1шт.

16

FH751438

CLIP

1шт.

17

FH842484

HOSE - hydraulic

1шт.

18

FH742601

HOSE - hydraulic

1шт.

19

218-902

HYD CONNECTOR,3/8" NPT x 3/8" - 18 ORFS

FITTING - 3/8" NPTF swivel adapter

2шт.

20

FH324921

CLAMP

2шт.

21

FH842385

PUMP - header hydraulic

1шт.

22

FH744136

GASKET

1шт.
