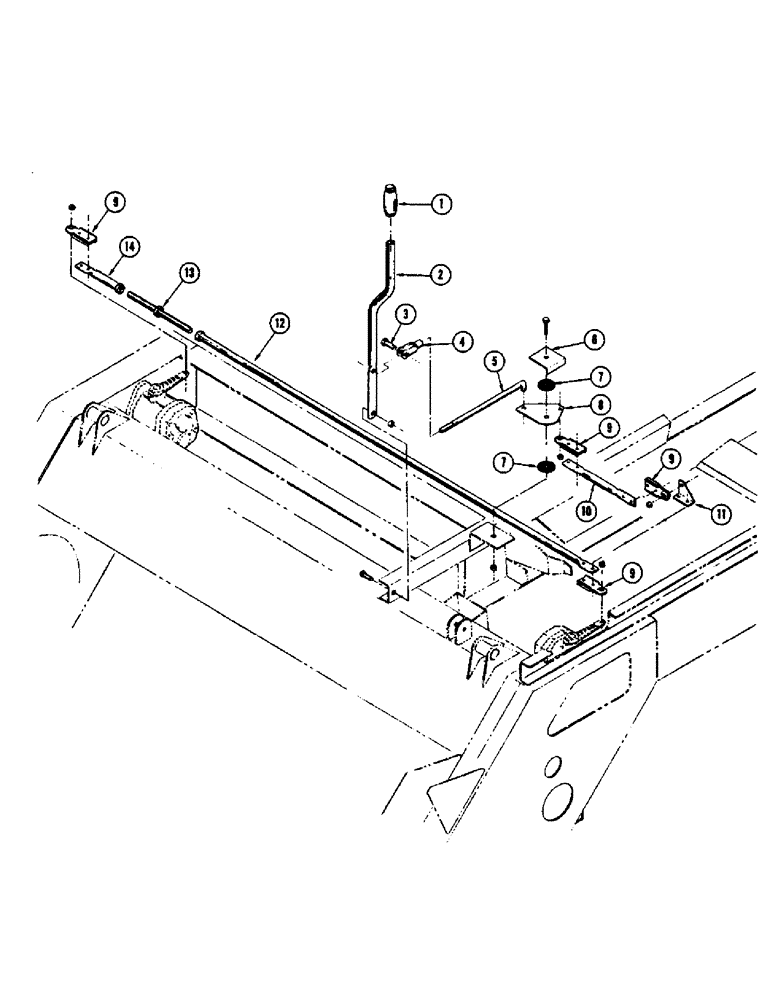

Запчасти Case IH 1255 (074) - DRIVEN MOTOR CONTROL (35) - HYDRAULIC SYSTEMS

1

FHO27086

X

GRIP

1шт.

2

FH440545

HANDLE - control

1шт.

111-364

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

131-179

LOCK NUT,3/8"-16, GA

NUT - 3/8" N. C. lock

1шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

3

FHO63685

PIN - clevis 1/2" x 1-1/2"

1шт.

4

O381SC

CLEVIS

1шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

95-8

WASHER,1/2"

flat 1/2"

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

5

FH440578

ROD

1шт.

6

FH440560

BRACKET

1шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N. C. hex.

1шт.

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

7

FH756403

DISC - friction

2шт.

8

FH440552

BELLCRANK

1шт.

9

FH712133

BEARING - rod end

4шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

25-104

NUT,1/4"-20, G5

8шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N. C. hex.

3шт.

113-128

BOLT - 5/16" x 1-3/4" N. C. hex. full thread

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex.

4шт.

131-351

LOCK NUT,5/16"-18, GA

NUT - 5/16" N. C. lock

4шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

4шт.

95-4

WASHER,1/4"

- flat 1/4"

12шт.

10

FH440586

LINK - rod

1шт.

11

FH440594

BRACKET

1шт.

12

FH440529

ROD - cross

1шт.

13

FH440487

LINK - adjustment

1шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

129-345

NUT,Jam, 1/2"-13, G5, LH

- 1/2" jam, L. H. thread

1шт.

14

FH440503

ROD - end

1шт.
