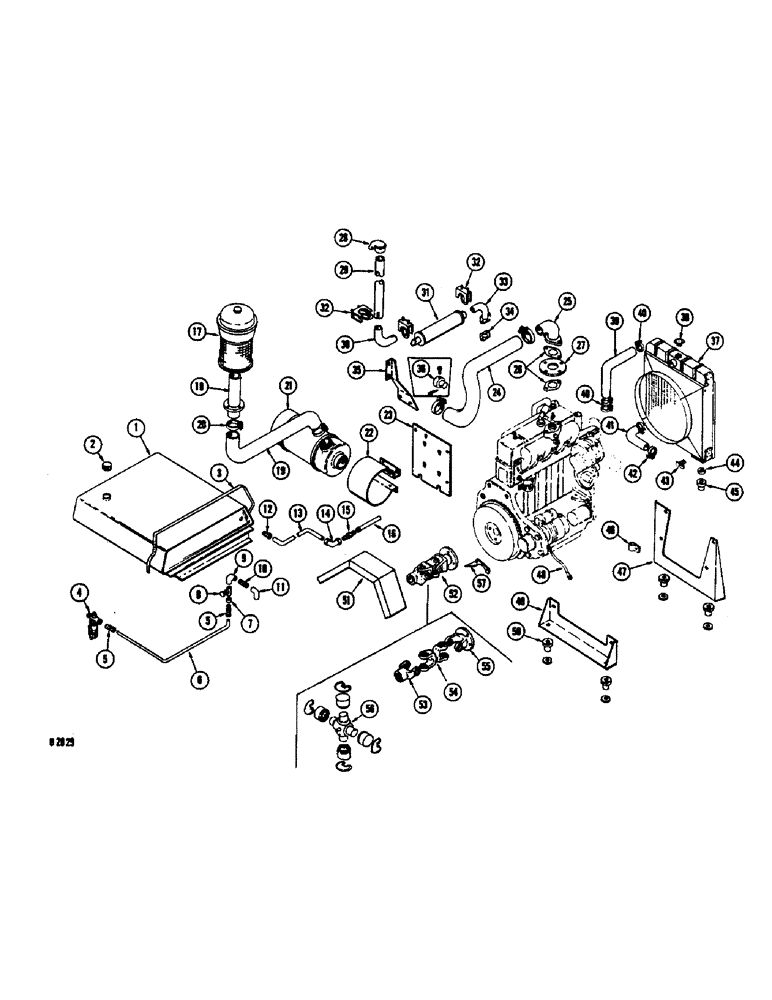

Запчасти Case IH 1255 (086) - ENGINE ACCESSORIES, DIESEL (10) - ENGINE

1

F35110

TANK - fuel

1шт.

2

FHO45088

CAP

1шт.

3

FH744391

STRIP - felt

1шт.

4

A30049

STRAINER ELEMENT

STRAINER - fuel

1шт.

5

FH747089

CONNECTOR

2шт.

6

F35043

LINE - fuel, Serial Range: tank-pump

1шт.

7

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

FITTING - 1/8" x 1/4" NPTF bushing

1шт.

8

A60042

PUMP

- hand primer

1шт.

8

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

8

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

9

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - 1/4" x 90 degrees street el

1шт.

10

221-134

NIPPLE, LUBE

FITTING - 1/4" x 1-1/2" NPTF nipple

1шт.

11

221-402

ELBOW,45 Degree, 1/4"-27, NPT

FITTING - 1/4" x 45 degrees street el

1шт.

12

FH746370

FITTING - union

1шт.

13

F35113

LINE - return

1шт.

14

FHO46011

FITTING - union

1шт.

15

222-13

FITTING,1/2"-20 Inv Fl x 1/8" NPT Fem

- coupling

1шт.

16

F35204

LINE - fuel return

1шт.

17

F83641

CLEANER

PRE-CLEANER

1шт.

18

F35084

TUBE - intake

1шт.

19

FH741223

HOSE - intake

1шт.

20

214-216

CLAMP,1.19"-1.31", T-Bolt

- hose

4шт.

21

F84514

AIR CLEANER

1шт.

22

FH485391

BRACKET - air cleaner clamp

1шт.

23

F35097

SUPPORT - air cleaner mounting

1шт.

24

FH741207

HOSE - intake

1шт.

25

F1593

ADAPTER - intake manifold

1шт.

26

D22670

GASKET

- intake manifold adapter

2шт.

27

F35103

PLATE - intake manifold adapter

1шт.

28

A7479

CAP

- weather

1шт.

29

FH741199

STACK - exhaust

1шт.

30

FH741181

ELBOW - exhaust stack

1шт.

31

A15655

MUFFLER

1шт.

32

FH720664

X

CLAMP - muffler

3шт.

33

F35086

FLANGE - exhaust

1шт.

34

G46853

MANIFOLD GASKET

- exhaust manifold flange

1шт.

35

F35105

BRACKET - muffler support

1шт.

36

FH751420

CONNECTOR

1шт.

#

SCREW - #10-24 x 3/16" set

1шт.

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

37

FH741256

RADIATOR

1шт.

38

F35409

CAP - radiator

1шт.

39

FH741405

HOSE - upper radiator

1шт.

40

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose

3шт.

41

FH741389

HOSE

- lower radiator

1шт.

42

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

43

217-103

COCK, DRAIN

FITTING - radiator drain cock

1шт.

44

FH293985

WASHER

2шт.

45

FHO27680

MOUNT - radiator

2шт.

46

F35079

CLIP - breather

1шт.

47

F35093

BRACKET - engine mounting

1шт.

48

FH722868

CABLE - ground

1шт.

49

F35096

BRACKET - engine mounting

1шт.

50

FH727719

MOUNTING PARTS

MOUNT - rubber

4шт.

51

F35104

SHIELD - flywheel

1шт.

FH751487

CLAMP - line

5шт.

52

FH845313

U-JOINT

1шт.

53

FH757435

YOKE - splined

1шт.

54

FH757427

YOKE - double

1шт.

55

FH845321

YOKE - flange

1шт.

56

FH757443

KIT

- journal repair

1шт.

57

A38922

POINTER - timing

1шт.
