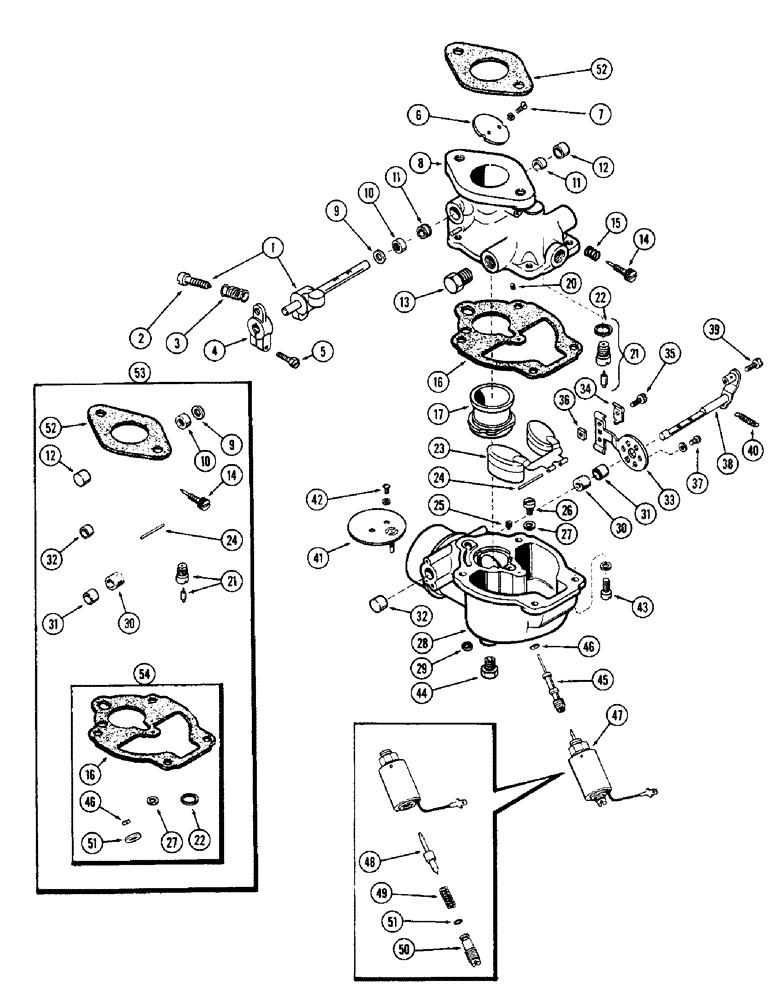

Запчасти Case IH 1255 (046) - CARBURETOR, 188 SPARK IGNITION ENGINE (10) - ENGINE

A38252

CARBURETOR

ASSY.

1шт.

1

A25105

SHAFT

LEVER & SHAFT ASSY. - throttle

1шт.

2

A25106

SCREW

- stop

1шт.

3

A25107

SPRING - stop screw

1шт.

4

A40613

LEVER

- clamp, throttle shaft

1шт.

5

B51584

SCREW - clamp

1шт.

6

B51211

PLATE

- throttle

1шт.

7

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle plate

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A38252)

1шт.

9

B59360

RETAINER

WASHER - seal retaining

1шт.

10

B51528

SEAL

- throttle shaft

1шт.

11

A40609

BUSHING

- throttle shaft

2шт.

12

A40612

PLUG

- throttle shaft hole

1шт.

13

B51541

PLUG

- fuel inlet

2шт.

14

B51265

HOSE

NEEDLE - idle adjusting

1шт.

15

B51404

SPRING

- idle adjusting needle

1шт.

16

B51471

GASKET

- bowl (Has 1-5/16" venturi opening)

1шт.

17

B51196

VENTURI

1шт.

20

B51306

JET

- idle

1шт.

21

A40938

VALVE

& SEAT - fuel (Matched set)

1шт.

22

B51618

WASHER

- valve seat

1шт.

23

B51359

FLOAT

1шт.

24

B51433

AXLE

- float

1шт.

25

B51338

TUBE

JET - well vent

1шт.

26

A40844

JET - main

1шт.

27

B51619

WASHER

- main jet

1шт.

28

B51181

BOWL ASSY. - fuel

1шт.

29

B51442

FILTER

DISC - drain

1шт.

30

B51533

WASHER

- packing, choke shaft

1шт.

31

B51439

RETAINER

- packing

1шт.

32

B51509

PLUG

- choke shaft hole

1шт.

33

B51400

SUPPORT

BRACKET ASSY. - choke end

1шт.

34

B51403

CLIP

- choke rod

1шт.

35

B51580

SCREW

- clip

1шт.

36

129-76

SQUARE NUT,#8 - 36

- clip screw

1шт.

37

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

2шт.

38

A40618

SHAFT ASSY. - choke

1шт.

39

B51979

SCREW - swivel

1шт.

40

B51412

SPRING

- return, choke lever

1шт.

41

B51365

PLATE

- choke

1шт.

42

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

43

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

44

B51541

PLUG

- bowl drain

1шт.

45

B51323

JET

- discharge

1шт.

46

B51610

WASHER

- discharge jet

1шт.

47

A38253

SOLENOID

ASSY. - fuel shut-off

1шт.

48

A41560

PLUNGER

- solenoid

1шт.

49

A41557

SPRING

- plunger

1шт.

50

A41559

SCREW

- adjusting

1шт.

51

A41558

O-RING

"O" RING - screw

1шт.

52

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

53

CASA40940

KIT

- repair, carburetor

1шт.

54

B51496

GASKET

KIT - gasket, carburetor

1шт.
