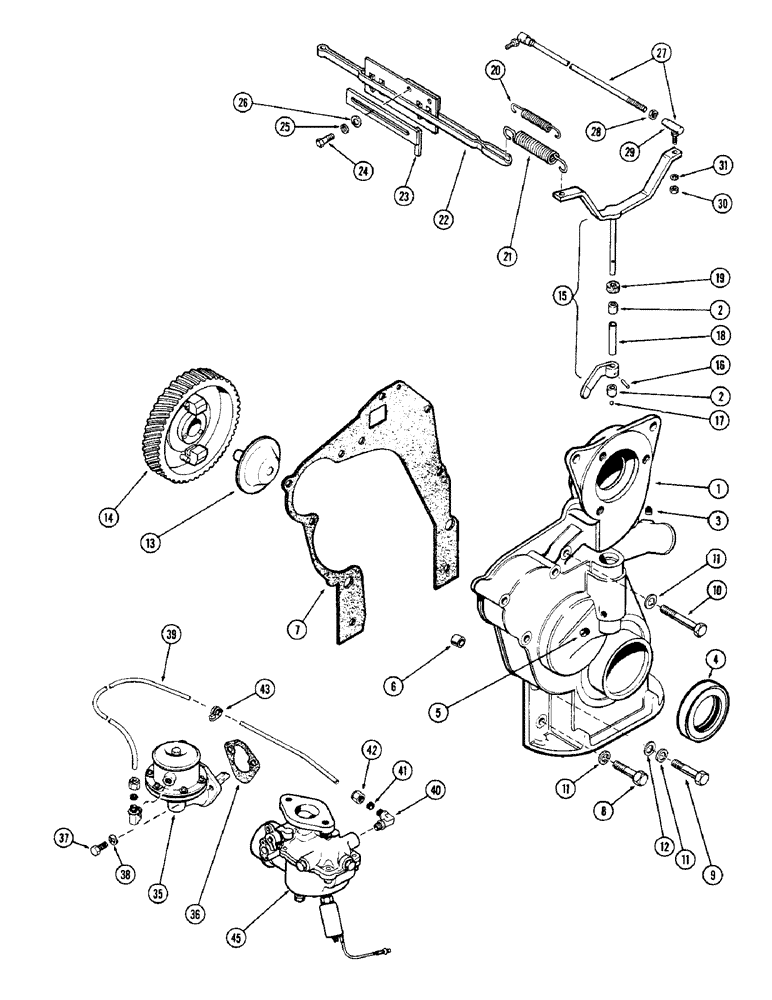

Запчасти Case IH 1255 (044) - GOVERNOR AND TIMING GEAR COVER, 188 SPARK IGNITION ENGINE (10) - ENGINE

1

A38317

COVER

ASSY. - timing gear

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft

2шт.

3

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - 3/8" P.T. sq. hd.

1шт.

4

A36609

OIL SEAL

- oil, crankshaft

1шт.

5

A30016

FITTING

PLUG - 1/8" P.T. slotted hd.

1шт.

6

A29442

RING

- dowel, Serial Range: cover-block

2шт.

7

A38227

GASKET

-, Serial Range: cover-block

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

92-6

LOCK WASHER,3/8"

10шт.

12

195-25

WASHER,3/8"

2шт.

13

A29957

SHAFT

ASSY. - governor

1шт.

14

G37066

GEAR

ASSY. - camshaft (Incl. governor weights)

1шт.

15

A30125

SHAFT

ARM ASSY. - governor control

1шт.

16

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

17

211-5

BALL,3/16" Dia

- thrust (.) 3/16" Dia

1шт.

18

A30012

SPACER

- governor shaft

1шт.

19

A30011

SEAL

- dust, governor shaft

1шт.

20

A37005

SPRING

- inner, control rod (1/2" O.D. x 3" lg.)

1шт.

21

G48511

SPRING

- outer, control rod (3/4" O.D. x 4-1/2" lg.)

1шт.

22

G45793

ROD

- governor control

1шт.

23

G45792

STOP

- control rod

1шт.

24

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

26

195-521

WASHER,5/16", SAE

- plain (11/32 x 11/16 x 1/16")

2шт.

27

G45228

ROD

ASSY. - governor, Serial Range: arm-carburetor

1шт.

28

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

29

A10329

BALL JOINT,1/4" - 28 x 1"

- front

1шт.

30

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

G45778

PUMP

ASSY. - fuel FUEL PUMP AND CARBURETOR

1шт.

36

G46902

GASKET

- pump to block FUEL PUMP AND CARBURETOR

1шт.

37

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Fuel pump and carburetor Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

38

92-5

LOCK WASHER,5/16"

FUEL PUMP AND CARBURETOR 5/16"

2шт.

39

G46295

LINE - fuel, pump to carburetor FUEL PUMP AND CARBURETOR

1шт.

40

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- 5/16" tube x 1/8" P.T. FUEL PUMP AND CARBURETOR

2шт.

41

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube FUEL PUMP AND CARBURETOR

1шт.

42

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube FUEL PUMP AND CARBURETOR

1шт.

43

G11359

CLAMP - fuel line FUEL PUMP AND CARBURETOR

1шт.

45

A38252

CARBURETOR

ASSY. (Repairs page 46) FUEL PUMP AND CARBURETOR

1шт.
