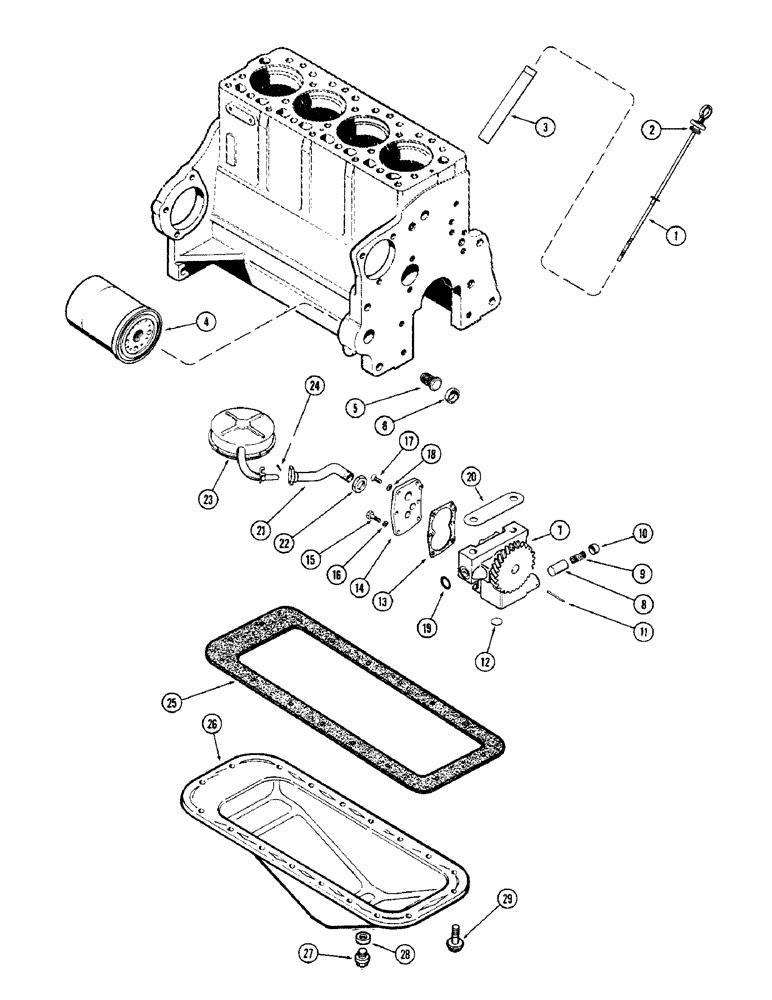

Запчасти Case IH 1255 (040) - OIL PUMP, OIL FILTER, OIL PAN, 188 SPARK IGNITION ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A37148
DIPSTICK
ASSY. - engine oil level
1шт.
2
F62075
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
"O" RING - dipstick seal (3/4" I.D. x 1" O.D. x 1/8")
2шт.
3
A37149
TUBE
- oil filler & dipstick
1шт.
4
A37189
FILTER, ELEMENT
FILTER - engine oil
1шт.
5
A153552
ADAPTER
-, Serial Range: filter-block
1шт.
6
A37207
X
PLUG - filter adapter (1" dia. cup type)
1шт.
7
G11844
PUMP, ENGINE OIL
PUMP ASSY. - engine oil
1шт.
8
A155144
VALVE, PRESSURE RELI
- relief
1шт.
9
G48513
VALVE SPRING
SPRING - relief valve
1шт.
10
A29260
RETAINER
- relief spring
1шт.
11
138-62
LOCK PIN,1/8" x 1 1/8", Slotted
PIN - roll, 1/8 x 1/4"
1шт.
12
41-102
PLUG,Exp, 1/2"
- body (1/2" expansion type)
2шт.
13
G46852
GASKET
- pump cover
1шт.
14
NSS
NOT SOLD SEPARAT
COVER - pump body
1шт.
15
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
1шт.
15
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
3шт.
16
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
17
73-410
SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"
- mach., 1/4 x 5/8" flat hd.
2шт.
18
193-52
LOCK WASHER,Ext Csk Tooth, 1/4"
WASHER, LOCK, Ext Csk Tooth, 1/4"
2шт.
19
A27365
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - oil port (3/4" I.D. x 15/16" O.D. x 3/32")
1шт.
20
G11337
SHIM,.002" Thk
Pump to block .002" Thk
1шт.
20
G11338
SHIM,.005" Thk
Pump to block .005" Thk
1шт.
21
G45766
PIPE, EXHAUST SYSTEM
PIPE - suction
1шт.
22
223-207
LOCK NUT
NUT - lock, Serial Range: pipe-pump
1шт.
23
A30126
FLOAT ASSY. (Includes screen)
1шт.
24
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
25
NSS
NOT SOLD SEPARAT
GASKET - oil pan (Order A40712 from page 42)
1шт.
26
A36717
PAN
ASSY. - oil
1шт.
27
A14280
PLUG
- drain
1шт.
28
A58608
GASKET
- drain plug
1шт.
29
193-514
SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"
BOLT - pan to block (Includes lockwasher)
18шт.
