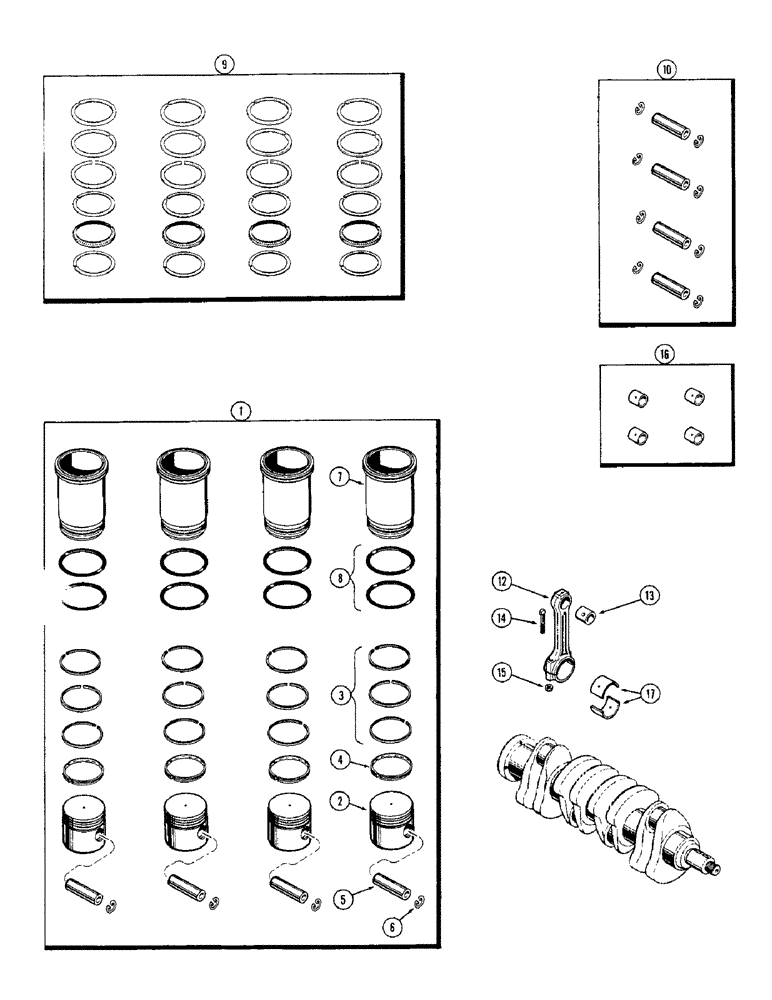

Запчасти Case IH 1255 (038) - PISTON ASSEMBLY AND CONNECTING RODS, 188 SPARK IGNITION (10) - ENGINE

1

A36031

SLEEVE

PISTON & SLEEVE - set of 4 matched

1шт.

2

G2092

PISTON

1шт.

3

G4807

RING

- compression

12шт.

4

G4809

RING

- oil control

4шт.

5

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

6

A26915

RING, SNAP

RING - retainer, piston pin (See ref. 10)

8шт.

7

G2090

SLEEVE

- cylinder

4шт.

8

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

9

G11999

RING

SET - (Re-ring 4 pistons)

1шт.

10

A36030

KIT

PIN SET - piston (Set of 4 w/retainer rings)

1шт.

12

G11172

STEM

ROD ASSY. - connecting

4шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - (Order ref. 16)

1шт.

14

G11701

BOLT

- cap

2шт.

15

G49060

NUT

- cap bolt

2шт.

16

G11922

BUSHING

SET - piston pin (Set of 4)

1шт.

17

A36500

SEAL

LINERS - conn. rod brgs. (Std.)

4шт.

17

A36501

BEARING LINER

LINERS - conn. rod brg. (.002" undersize)

4шт.

17

A36502

LINING

LINERS - conn. rod brg. (.010" undersize)

4шт.

17

A36503

BEARING LINER

LINERS - conn. rod brg. (.020" undersize)

4шт.

17

A36504

KIT

LINERS - conn. rod brg. (.030" undersize)

4шт.
