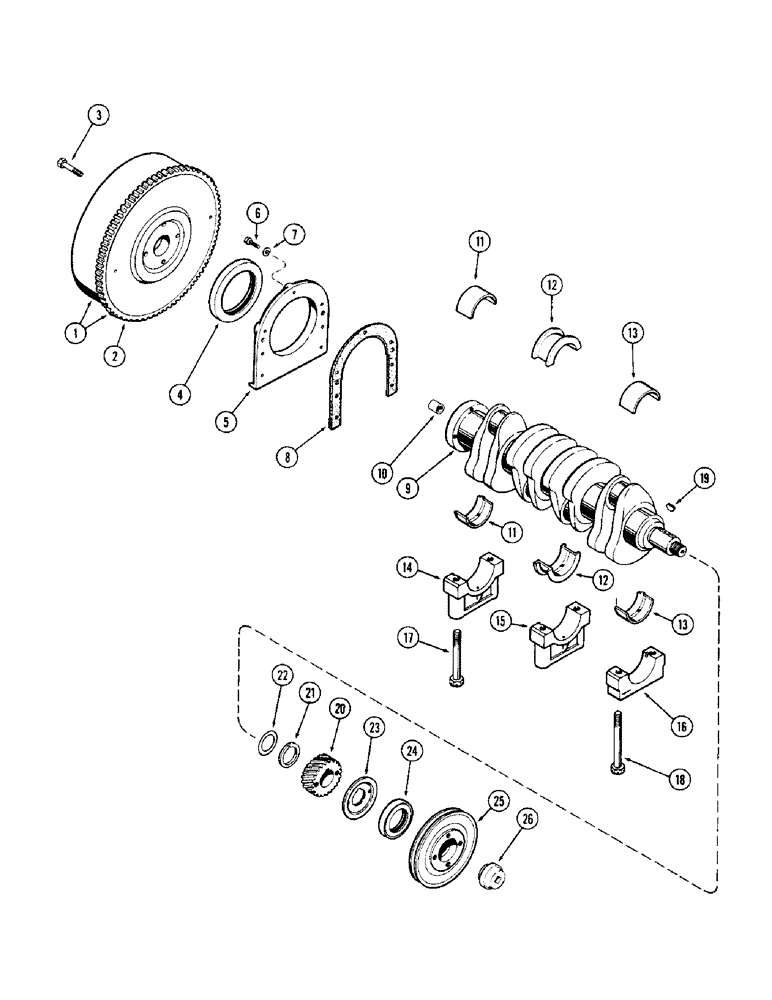

Запчасти Case IH 1255 (036) - CRANKSHAFT AND FLYWHEEL, 188 SPARK IGNITION ENGINE (10) - ENGINE

1

A38616

FLYWHEEL ASSY

1шт.

2

G11710

GEAR

- ring

1шт.

3

A37216

BOLT

- flywheel to crankshaft (7/16 x 1-1/2" N.F.)

4шт.

4

A36610

OIL SEAL

- oil, crankshaft rear (4" I.D. x 5" O.D. x 1/2")

1шт.

5

A38390

RETAINER

- rear oil seal

1шт.

6

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Retainer Hex, 1/4"-20 x 1", G5

3шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

8

A38196

GASKET

- retainer, oil seal

1шт.

9

G11876

CRANKSHAFT

ASSY.

1шт.

10

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot

1шт.

11

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear brg., crankshaft (Std.)

1шт.

11

A36496

LINING

LINERS - rear brg., crankshaft (.002" undersize)

1шт.

11

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear brg., crankshaft (.010" undersize)

1шт.

11

A36498

KIT

LINERS - rear brg., crankshaft (.020" undersize)

1шт.

11

A36499

BEARING LINER

LINERS - rear brg., crankshaft (.030" undersize)

1шт.

12

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg., crankshaft (Std.)

1шт.

12

A36491

LINING

LINERS - center brg., crankshaft (.002" undersize)

1шт.

12

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg., crankshaft (.010" undersize)

1шт.

12

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg., crankshaft (.020" undersize)

1шт.

12

A36494

LINING

LINERS - center brg., crankshaft (.030" undersize)

1шт.

13

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front brg., crankshaft (Std.)

1шт.

13

A36481

LINING

LINERS - front brg., crankshaft (.002" undersize)

1шт.

13

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front brg., crankshaft (.010" undersize)

1шт.

13

A36483

LINING

LINERS - front brg., crankshaft (.020" undersize)

1шт.

13

A36484

LINING

LINERS - front brg., crankshaft (.030" undersize)

1шт.

14

G2062

CAP - rear bearing

1шт.

15

G2060

CAP - center bearing

1шт.

16

G2059

CAP - front bearing

1шт.

17

G49038

BOLT - bearing cap (1/2" N.C. x 3-3/8" gr. 8)

4шт.

18

G49059

BOLT

- brg. cap & oil pump (1/2" N.C. x 4-3/4" gr. 8)

2шт.

19

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - gear & pulley to crankshaft

2шт.

20

A29263

GEAR

- crankshaft

1шт.

21

A29294

BUSHING

SPACER - thrust, crankshaft gear

1шт.

22

A29293

SHIM,.010" Thk

Thrust washer .010" Thk

1шт.

23

A29259

SLINGER

- oil, crankshaft gear

1шт.

24

A36609

OIL SEAL

- oil, crankshaft front (2" I.D. x 3" O.D. x 1/2")

1шт.

25

G11342

X

PULLEY - drive, fan & alternator

1шт.

26

A35673

NUT

- pulley

1шт.
