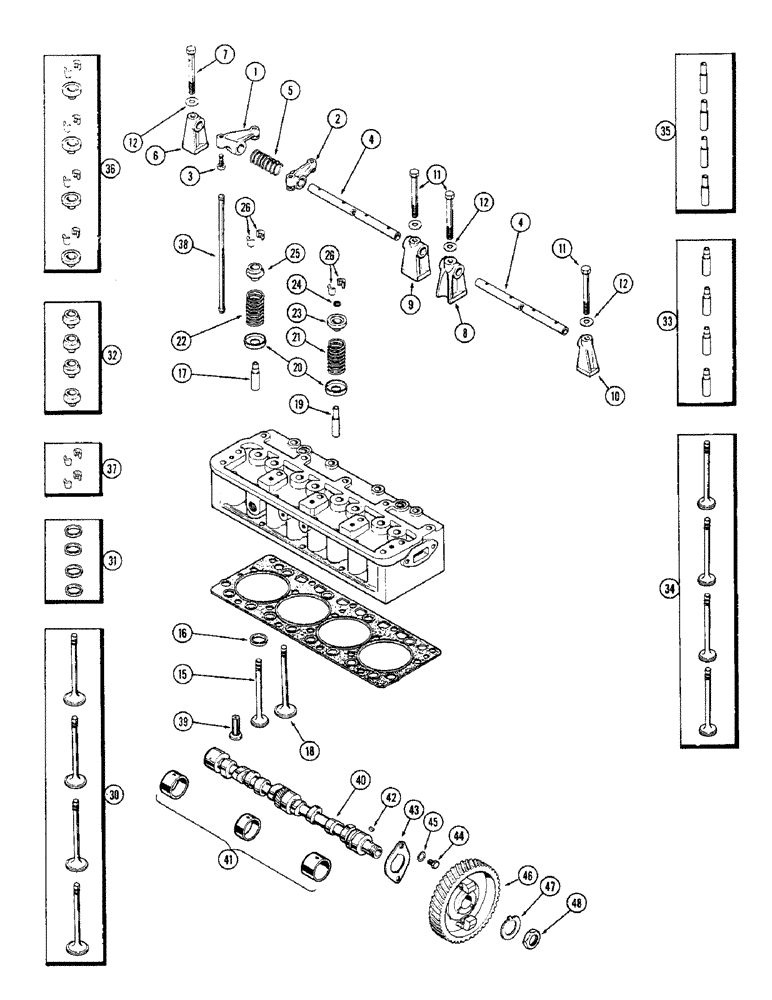

Запчасти Case IH 1255 (034) - VALVE MECHANISM AND CAMSHAFT, 188 SPARK IGNITION ENGINE (10) - ENGINE

1

G45771

ARM

ASSY. - rocker, L.H. (Incl. ref. 3)

4шт.

2

G45770

ARM

ASSY. - rocker, R.H. (Incl. ref. 3)

4шт.

3

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting

1шт.

4

A38181

SHAFT

- rocker, front and rear

2шт.

5

G48501

SPRING

- rocker shaft

4шт.

6

A36615

BRACKET

- rear, rocker shaft

1шт.

7

G49067

BOLT

- drilled, rear bracket

1шт.

8

G2102

BRACKET

- intermediate, rocker shaft

2шт.

9

G2101

BRACKET

- center, rocker shaft

1шт.

10

G2100

BRACKET

- front, rocker shaft

1шт.

11

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- bracket (3/8 x 3-1/2" N.C. hex.)

4шт.

12

A30058

WASHER

- plain (13/32 x 7/8 x 1/8")

5шт.

15

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 30)

4шт.

16

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 31)

4шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 33)

4шт.

18

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 34)

4шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 35)

4шт.

20

G49065

SEAT

- valve spring

8шт.

21

A30025

SPRING

- intake valve

4шт.

22

G10004

SPRING

- exhaust valve

4шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 36)

4шт.

24

G46851

SEAL

- intake valve stem

4шт.

25

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. 32)

4шт.

26

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 37)

16шт.

30

G11988

VALVE

S - exhaust (Set of 4)

1шт.

31

G11986

KIT

INSERTS - valve seat (Set of 4)

1шт.

32

G11928

CAP

ROTO CAPS - exhaust valve (Set of 4)

1шт.

33

G11861

GUIDE

S - exhaust valve (Set of 4)

1шт.

34

G11987

VALVE

S - intake (Set of 4)

1шт.

35

G11946

GUIDE

S - intake valve (Set of 4)

1шт.

36

G11927

RETAINER

- intake valve spring (Set of 4 w/locks)

1шт.

37

G11929

LOCK

S - retainer (Set of 4)

4шт.

38

G47129

PUSH ROD

ROD - push, rocker arm

8шт.

39

A30006

TAPPET

LIFTER - push rod

8шт.

40

G2091

CAMSHAFT

1шт.

41

A41229

BUSHING

SET - camshaft (Pre-sized)

1шт.

42

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

43

A29290

PLATE

- thrust, camshaft gear

1шт.

44

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

45

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

46

G37066

GEAR

ASSY. - camshaft (Includes governor weights)

1шт.

47

A29438

LOCK NUT

WASHER - lock, camshaft nut

1шт.

48

A30063

NUT

- camshaft

1шт.
