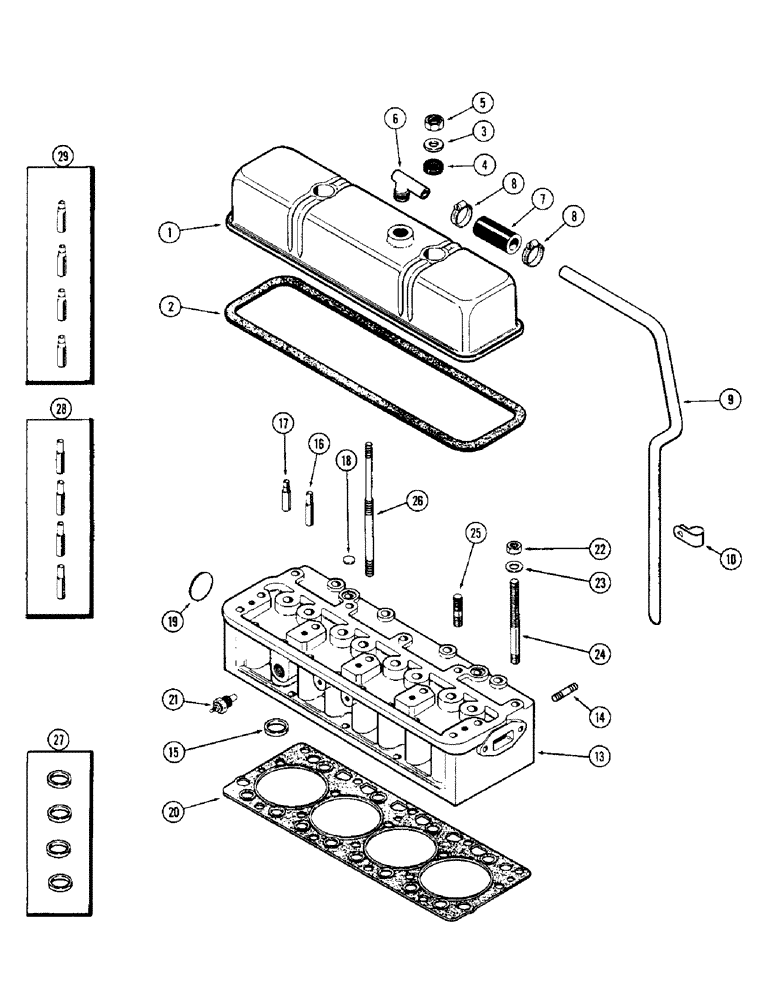

Запчасти Case IH 1255 (032) - CYLINDER HEAD ASSEMBLY, 188 SPARK IGNITION ENGINE (10) - ENGINE

1

A36815

COVER

- cylinder head & valves

1шт.

2

G46866

GASKET

-, Serial Range: cover-head

1шт.

3

G49400

WASHER

- cover nut (13/32 x 1-5/32" x #10 ga.)

2шт.

4

G46867

GROMMET

- cover stud

2шт.

5

25-106

NUT,3/8"-16, G5

- cover stud (3/8" N.C. hex.)

2шт.

6

A9155

90 ELBOW

- breather tube

1шт.

7

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Tube to elbow 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 - 1-3/4")

2шт.

9

D35027

TUBE

- breather

1шт.

10

D35026

CLAMP -, Serial Range: tube-block

1шт.

13

G11871

HEAD (CYLINDER)

HEAD ASSY. - cylinder

1шт.

14

A29431

STUD

- manifold (3/8 x 1-3/4")

7шт.

15

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 27)

4шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 28)

4шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 29)

4шт.

18

41-13

GUARD,Exp, 13/16"

- top (13/16" expansion type)

2шт.

19

41-18

PLUG

- rear (1-1/8" expansion type)

1шт.

20

A36585

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

21

A21462

SENDER UNIT

UNIT - sender, engine temp

1шт.

22

A30021

NUT

- head stud (1/2" N.F. spec.)

19шт.

23

G49404

WASHER

- head stud (17/32 x 27/32 x 1/16")

19шт.

24

A29436

STUD

- head to block (1/2 x 5-7/8")

14шт.

25

A30057

STUD

- head to block (1/2 x 2")

3шт.

26

A36780

STUD

- head & cover

2шт.

27

G11986

KIT

INSERT KIT - valve seat (Set of 4)

1шт.

28

G11946

GUIDE

SET - intake valve (Set of 4)

1шт.

29

G11861

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

30

321-895

DECAL - engine data

1шт.
