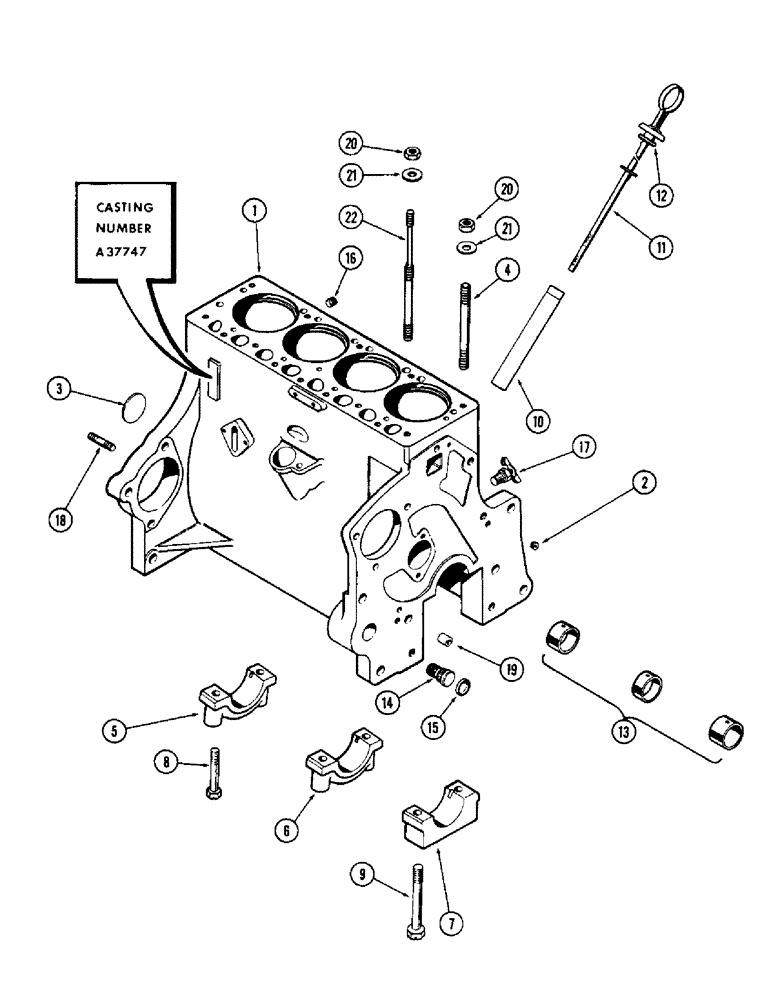

Запчасти Case IH 1255 (030) - CYLINDER BLOCK ASSEMBLY, 188 SPARK IGNITION ENGINE (10) - ENGINE

A41029

SKELETON ENGINE

SHORT BLOCK ASSY. - (Includes stripped block assy., crankshaft & brgs., camshaft, timing gear, piston assy., conn. rods & oil pump)

1шт.

1

A41030

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting no. A37747)

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

3

A39241

PLUG,Exp, 2.12" dia

- rear (2-1/8" expansion type)

1шт.

4

A30057

STUD

- head to block (1/2 x 2")

3шт.

4

A29436

STUD

- head to block (1/2 x 5-7/8")

14шт.

5

G2062

CAP - rear crankshaft brg.

1шт.

6

G2060

CAP - center crankshaft brg.

1шт.

7

G2059

CAP - front crankshaft brg.

1шт.

8

G49038

BOLT - bearing cap (1/2 x 3-3/8" N.C. spec.)

4шт.

9

G49059

BOLT

- brg. cap & oil pump (1/2 x 4-3/4" N.C. spec.)

2шт.

10

A37149

TUBE

- oil filler & dipstick

1шт.

11

A37148

DIPSTICK

- oil level

1шт.

12

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - seal (3/4 x 1 x 1/8")

2шт.

13

A41229

BUSHING

SET - camshaft (Pre-sized)

1шт.

14

A153552

ADAPTER

- oil filter

1шт.

15

A37207

X

PLUG - filter hole (1" dia. cup type)

1шт.

16

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - L.H. side (3/8" P.T. socket hd.)

1шт.

17

A23656

COCK, DRAIN

COCK - drain, cyl. block

1шт.

18

A29363

STUD

- rear (5/8 x 2-1/4")

2шт.

19

A29442

RING

- dowel, timing gear cover

2шт.

20

A30021

NUT

- head stud (1/2" N.F. spec.)

19шт.

21

G49404

WASHER

- head stud

19шт.

22

A36780

STUD

- head & cover

2шт.
