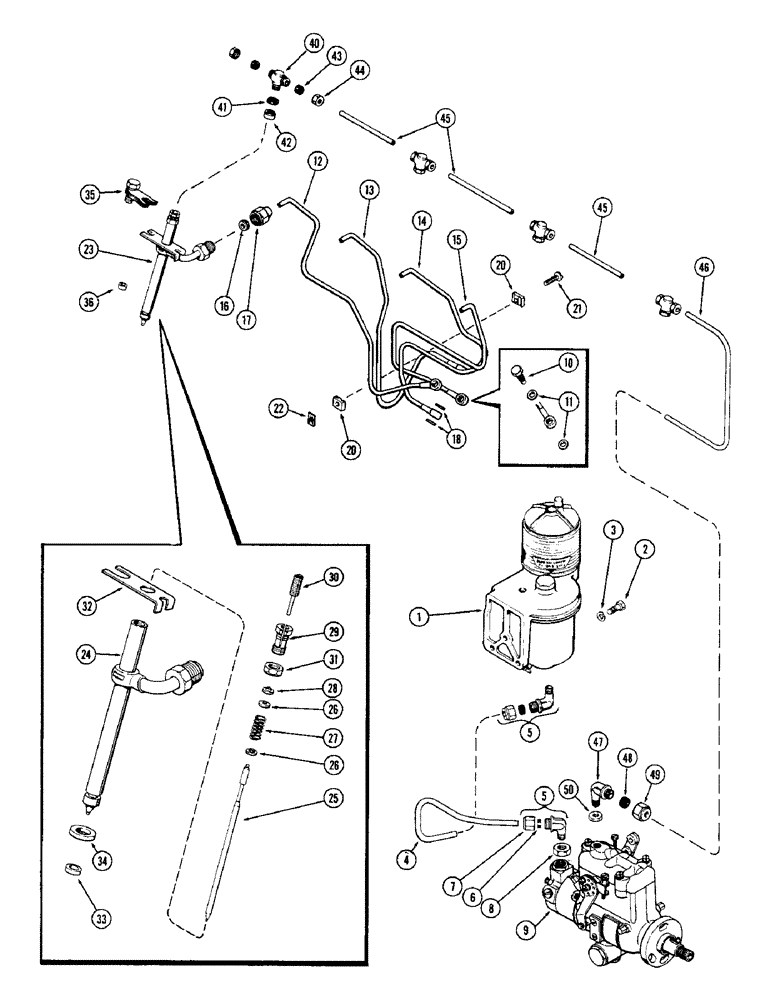

Запчасти Case IH 1255 (026) - FUEL INJECTION SYSTEM, 188 DIESEL ENGINE (10) - ENGINE

1

A35735

FILTER

ASSY. - fuel (Repairs page 28)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

A36566

TUBE

LINE - fuel., Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T.

2шт.

6

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

8

A38161

LOCK NUT

- sealing, 1/4" P.T.

1шт.

9

A35775

PUMP

ASSY. - injection (Repairs page 28)

1шт.

10

73613

SCREW

- tube connector (Part of pump assy)

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector (Part of pump assy.)

8шт.

12

A41391

TUBE

- #1 injector (Incl. ref. 16, 17 & 18)

1шт.

13

A41392

TUBE

- #2 injector (Incl. ref. 16, 17 & 18)

1шт.

14

A41393

TUBE

- #3 injector (Incl. ref. 16, 17 & 18)

1шт.

15

A41394

TUBE

- #4 injector (Incl. ref. 16, 17 & 18)

1шт.

16

A37850

PIPE FITTING

SLEEVE - tube

1шт.

17

A37851

NUT

- tube

1шт.

18

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector (Also part of pump assy)

2шт.

20

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

CLAMP - injection tube (Plastic)

4шт.

21

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10-24 x 1" rd. hd.

2шт.

22

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - speed, #10 Tinnerman flat

2шт.

23

A37836

NOZZLE

ASSY. - fuel injection

4шт.

Whenever nozzle is removed from head the seal ref. 33 and washer ref. 34 must be replaced before nozzle is installed back in head

1шт.

A140829R

REMAN-INJECT NOZZLE

1255, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A37836)

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A37836)

1шт.

26

A41401

SEAT

- pressure spring

2шт.

27

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

28

A41407

WASHER

- ball type

1шт.

29

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

30

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

31

A41404

NUT

- lock

1шт.

32

A41405

PLATE

- locating, nozzle

1шт.

33

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

34

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

35

A37837

CLAMP

ASSY. - nozzle

4шт.

36

A37839

SPACER

- clamp

4шт.

40

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - leak-off, Serial Range: nozzle-tube

4шт.

41

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- nozzle to leak-off tee

4шт.

42

A58961

NUT

- knurled, nozzle to leak-off tee

4шт.

43

222-102

SLEEVE,1/4" Tube

8шт.

44

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

8шт.

45

A38644

TUBE

- nozzle leak-off

3шт.

46

A38158

TUBE

- pump leak-off

1шт.

47

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/8" P.T.

1шт.

48

222-102

SLEEVE,1/4" Tube

1шт.

49

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

50

A38160

LOCK NUT

- sealing, 1/8" P.T.

1шт.
