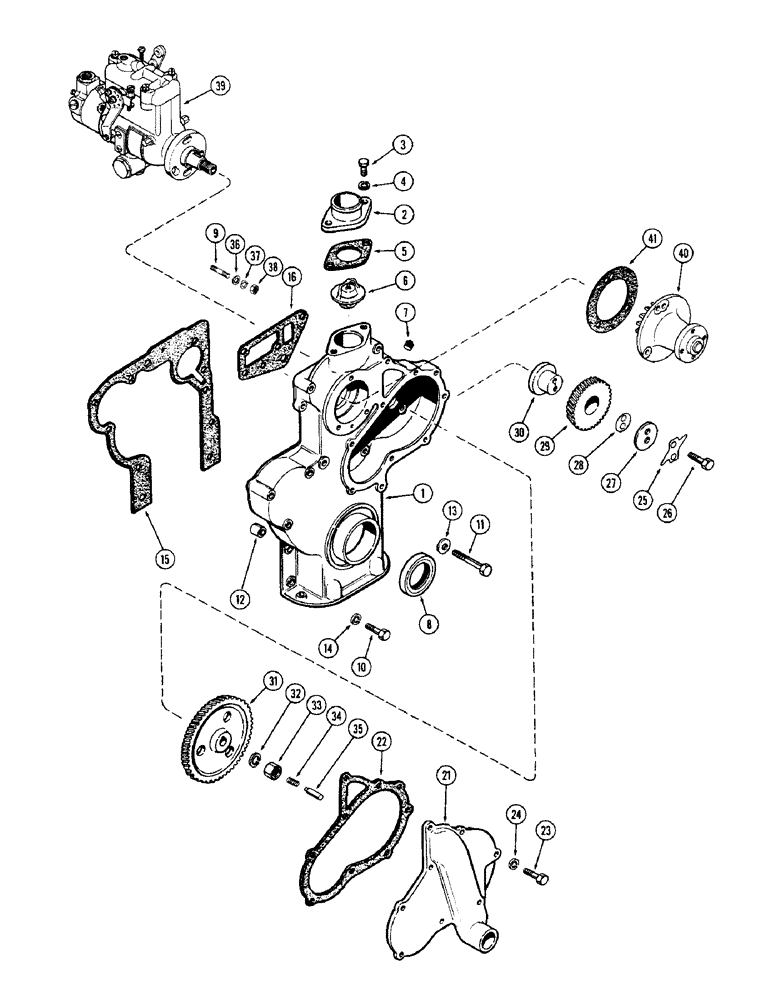

Запчасти Case IH 1255 (024) - FUEL INJECTION PUMP AND DRIVE, 188 DIESEL ENGINE (10) - ENGINE

1

A38088

COVER ASSY. - injection pump drive

1шт.

2

G2144

FITTING

CONNECTION - water outlet

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

G46907

GASKET

- connection

1шт.

6

A57641

THERMOSTAT

(180 degrees)

1шт.

7

221-1843

PLUG

- pipe, 3/8" P.T. hex. socket hd.

1шт.

8

A36609

OIL SEAL

- oil, crankshaft front

1шт.

9

G11204

STUD

- injection pump (3/8 x 1-7/16")

3шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

3шт.

11

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

12

A29442

RING

- dowel, Serial Range: cover-block

2шт.

13

195-25

WASHER,3/8"

6шт.

14

92-6

LOCK WASHER,3/8"

9шт.

15

A38228

GASKET

-, Serial Range: cover-block

1шт.

16

A38084

GASKET,1.27mm Thk

-, Serial Range: cover-head

1шт.

21

G2077

COVER ASSY

COVER - drive gear

1шт.

22

G46859

GASKET

- gear cover

1шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

24

92-6

LOCK WASHER,3/8"

9шт.

25

G11746

PLATE

- lock, idler gear

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

2шт.

27

G11732

PLATE

- thrust, idler gear

1шт.

28

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

28

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

28

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

28

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

29

G11852

GEAR

ASSY. - idler (Incl. bushing)

1шт.

30

G11726

HUB

- idler gear

1шт.

31

G2076

GEAR

- drive, injection pump

1шт.

32

192-24

LOCK WASHER,9/16"

WASHER, LOCK, (Part of pump) 9/16"

1шт.

33

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex. (Part of pump)

1шт.

34

G48502

SPRING

- thrust plunger (Part of pump)

1шт.

35

G47128

PLUNGER

- thrust, drive (Part of pump)

1шт.

36

A30043

WASHER

- plain, pump stud

3шт.

37

92-6

LOCK WASHER,3/8"

3шт.

38

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

39

A35775

PUMP

- fuel injection (Repairs page 28)

1шт.

40

A37758

PUMP

ASSY. - water (Order from page 6)

1шт.

40

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

40

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Assy

1шт.

40

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

41

A38083

GASKET

- water pump

1шт.
