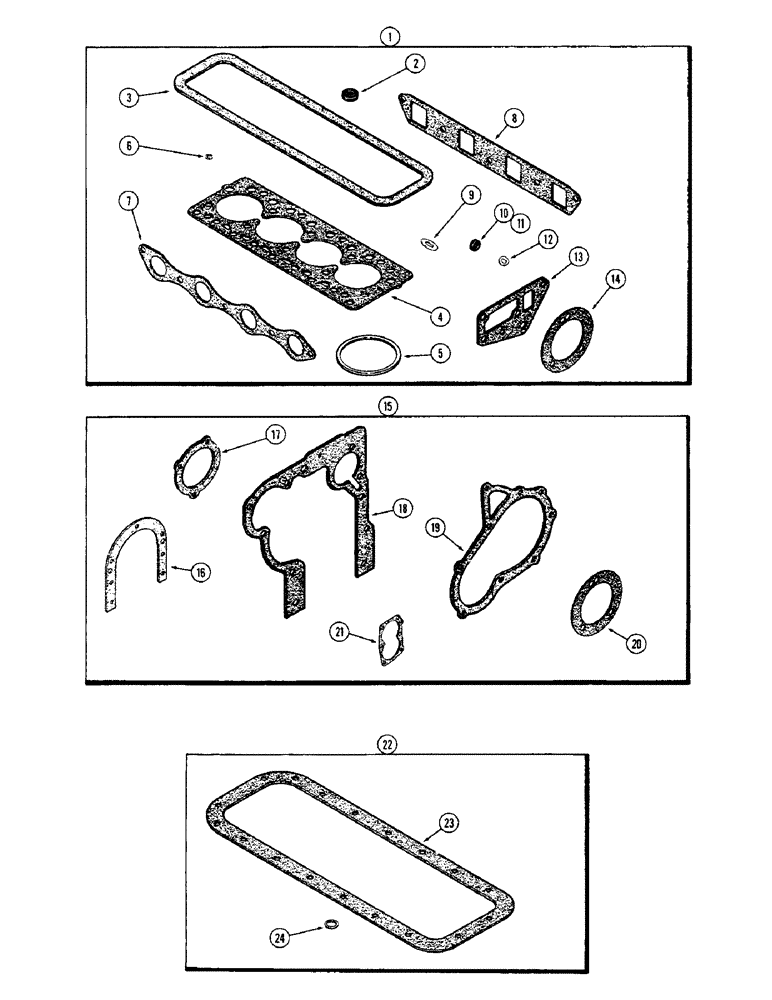

Запчасти Case IH 1255 (022) - ENGINE GASKET KITS, 188 DIESEL ENGINE (10) - ENGINE

1

A42001

GASKET

VALVE GRIND KIT

1шт.

2

G46867

GROMMET

- rubber, valve cover

2шт.

3

G46866

GASKET

- valve cover

1шт.

4

13490891C1

-, Serial Range: head-block

1шт.

5

A38639

RING

- fire (Orange coded)

4шт.

6

G46851

SEAL

- rubber, valve stem

8шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46871

GASKET

- intake manifold

1шт.

9

G49068

GASKET

- seat (Not used this application)

4шт.

10

222-101

SLEEVE,3/16" Tube

- (Not used this application) 3/16" Tube

4шт.

11

222-103

SLEEVE,5/16" Tube

(Not used this application) 5/16" Tube

2шт.

12

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection, Serial Range: tube-pump

8шт.

13

A38084

GASKET,1.27mm Thk

-, Serial Range: cover-head

1шт.

14

A38083

GASKET

- water pump

1шт.

15

A41426

KIT

CYLINDER BLOCK KIT

1шт.

16

A38196

GASKET

- rear oil seal retainer

1шт.

17

A30042

GASKET

- power steering pump opening

1шт.

18

A38228

GASKET

- pump drive cover

1шт.

19

G46859

GASKET

- pump drive cover

1шт.

20

A38083

GASKET

- water pump

1шт.

21

G46852

GASKET

- oil pump cover

1шт.

22

A40712

KIT

OIL PAN GASKET KIT

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712)

1шт.

24

A58608

GASKET

- drain plug (3/4 x 1 x 1/16")

1шт.
