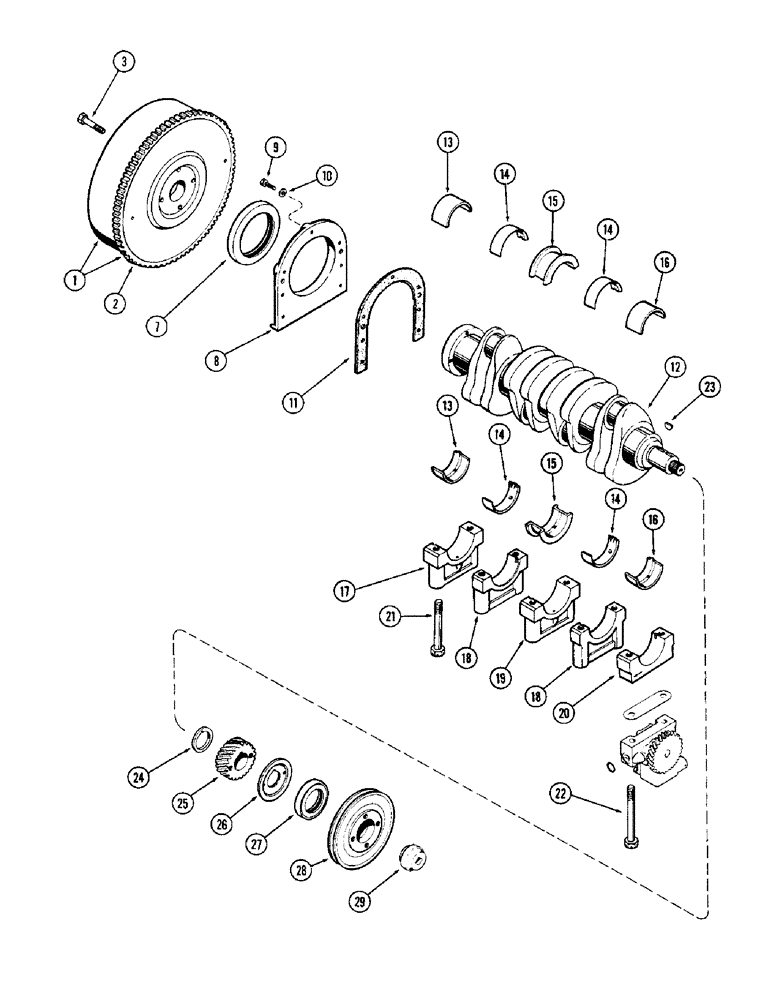

Запчасти Case IH 1255 (016) - CRANKSHAFT AND FLYWHEEL, 188 DIESEL ENGINE (10) - ENGINE

1

A38616

FLYWHEEL ASSY.

1шт.

2

G11710

GEAR

- ring

1шт.

3

A37216

BOLT

- flywheel to crankshaft (7/16" N.F. x 1-1/2")

4шт.

7

A36610

OIL SEAL

- oil, crankshaft rear (4" I.D. x 5" O.D. x 1/2")

1шт.

8

A38390

RETAINER

- rear oil seal

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

11

A38196

GASKET

- retainer

1шт.

12

A37211

CRANKSHAFT

1шт.

13

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Std.)

1шт.

13

A36496

LINING

LINERS - rear bearing (.002" undersize)

1шт.

13

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (.010" undersize)

1шт.

13

A36498

KIT

LINERS - rear bearing (.020" undersize)

1шт.

13

A36499

BEARING LINER

LINERS - rear bearing (.030" undersize)

1шт.

14

A36485

LINING

LINERS - intermediate bearing (Std.)

2шт.

14

A36486

LINING

LINERS - intermediate bearing (.002" undersize)

2шт.

14

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate bearing (.010" undersize)

2шт.

14

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate bearing (.020" undersize)

2шт.

14

A36489

LINING

LINERS - intermediate bearing (.030" undersize)

2шт.

15

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Std.)

1шт.

15

A36491

LINING

LINERS - center bearing (.002" undersize)

1шт.

15

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (.010" undersize)

1шт.

15

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (.020" undersize)

1шт.

15

A36494

LINING

LINERS - center bearing (.030" undersize)

1шт.

16

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Std.)

1шт.

16

A36481

LINING

LINERS - front bearing (.002" undersize)

1шт.

16

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (.010" undersize)

1шт.

16

A36483

LINING

LINERS - front bearing (.020" undersize)

1шт.

16

A36484

LINING

LINERS - front bearing (.030" undersize)

1шт.

17

A38385

CAP

- rear bearing

1шт.

18

G2128

CAP

- intermediate bearing

2шт.

19

G2127

CAP

- center bearing

1шт.

20

G2126

CAP

- front bearing

1шт.

21

113-444

BOLT

- bearing cap (1/2" N.C. x 4-1/2 gr. 8)

8шт.

22

113-445

BOLT

- brg. cap & oil pump (1/2" N.C. x 5-1/8" gr. 8)

2шт.

23

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

24

A24294

SPACER - thrust, crankshaft

1шт.

25

A29263

GEAR

- crankshaft

1шт.

26

A29259

SLINGER

- oil

1шт.

27

A36609

OIL SEAL

- oil, crankshaft front (2" I.D. x 3" O.D. x 1/2")

1шт.

28

G11342

X

PULLEY - fan & alternator drive

1шт.

29

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.
