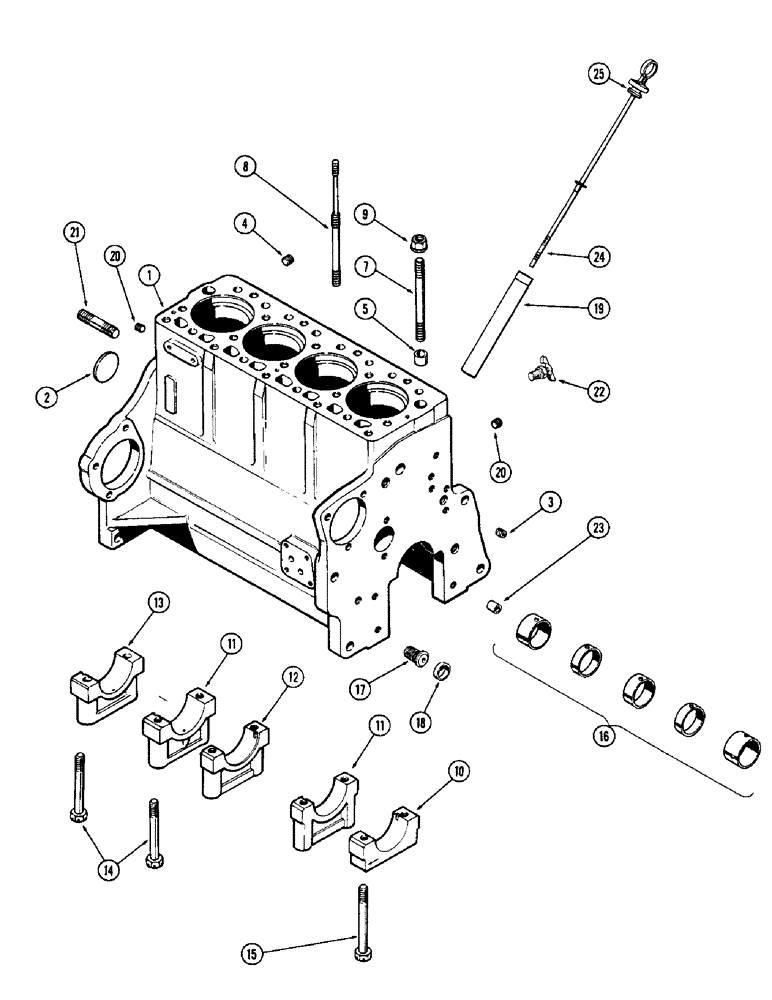

Запчасти Case IH 1255 (010) - CYLINDER BLOCK ASSEMBLY, 188 DIESEL ENGINE (10) - ENGINE

A42211

BLOCK ASSY. - short (Casting no. A38535) Includes stripped block, crankshaft, camshaft, timing gear, pistons & sleeves, conn. rods & brgs. and oil pump assy.

1шт.

1

A41597

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting no. A38535)

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- camshaft opening (2-1/8" dia.)

1шт.

3

G49070

PLUG

- drilled, oil gallery front

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - heater plug opening (3/8" P.T.)

1шт.

5

G49608

RING

DOWEL -, Serial Range: head-block

2шт.

7

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

7

A36902

STUD

- head to block (1/2" N.C. x 5-5/8")

11шт.

7

A36905

STUD

- head to block (1/2" N.C. x 6")

2шт.

8

A36903

STUD

- head & cover

2шт.

9

A37030

FLANGE NUT

- head stud (1/2" N.C. flanged)

19шт.

10

G2126

CAP

- front crankshaft brg.

1шт.

11

G2128

CAP

- intermediate crankshaft brg.

2шт.

12

G2127

CAP

- center crankshaft brg.

1шт.

13

A38385

CAP

- rear crankshaft brg.

1шт.

14

113-444

BOLT

- brg. cap (1/2 x 4-1/2" N.C. spec.)

8шт.

15

113-445

BOLT

- front brg. cap (1/2 x 5-1/8" N.C. spec.)

2шт.

16

A41232

KIT

BUSHING SET - camshaft (pre-sized)

1шт.

17

A153552

ADAPTER

- oil filter

1шт.

18

A37207

X

PLUG - filter adapter (1" cup type)

1шт.

19

A37149

TUBE

- oil filler & dipstick guide

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

21

A29333

STUD

- eng. mounting (5/8" N.C. & N.F. x 3")

2шт.

22

A23656

COCK, DRAIN

COCK - drain, cyl. block

1шт.

23

A29442

RING

- dowel, front cover to block

2шт.

24

A37148

DIPSTICK

- oil level

1шт.

25

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal (3/4 x 1 x 1/8")

2шт.
